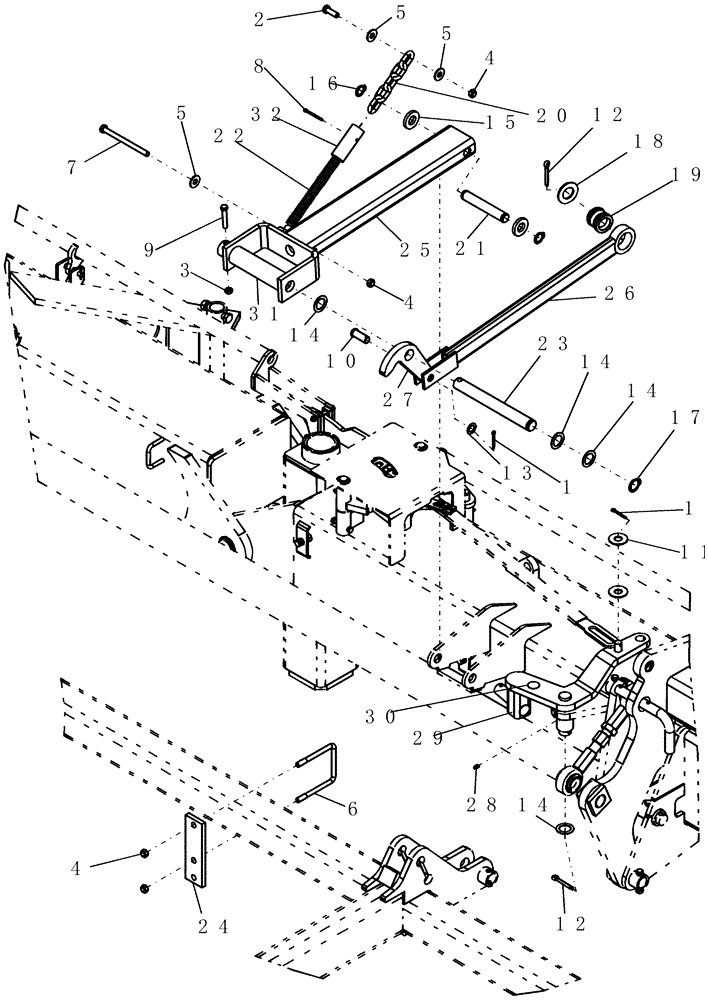

Запчасти Case IH 700 (39.100.17) - BOOM, LATCH ARM (39) - FRAMES AND BALLASTING

1

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

3

280980

NUT,7/16"-14, GC

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

4шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

3шт.

6

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

1шт.

7

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1шт.

8

87400

COTTER PIN,3/16" x 2"

1шт.

9

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

10

2898

CLEVIS PIN

3/4" x 1 29/32"

1шт.

11

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

12

3566

COTTER PIN

5/16" x 2"

2шт.

13

87326958

WASHER,0.78" ID x 1.25" OD x 0.05" Thk

3/4" id 18ga

1шт.

14

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

4шт.

15

5871

WASHER

1 1/64" id x 2" x 5/16"

2шт.

16

87019495

SNAP RING,#98, Ext

2шт.

17

86625148

SNAP RING,#125, Ext

1шт.

18

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

1шт.

19

87418720

BUSHING,31.2mm ID x 55mm OD x 48mm L

polyurethane 95a

1шт.

20

87419654

CHAIN

lk 3/8" x 7.3 gr30 5 lk

1шт.

21

87420316

PIN

25.4 x146 ul with snap

1шт.

22

87505479

SPRING

tension 13/64" wire 1 1/4" od x 12" long

1шт.

23

87420315

PIN

31.75 mm x 267 mm ul chrome

1шт.

24

87569801

BRACKET

chain mount

1шт.

25

87504065

ARM

boom latch LH

1шт.

25

87504066

ARM

boom latch RH

1шт.

Not Shown

1шт.

26

87504127

LINK

latch release boom

1шт.

Includes 87418720

1шт.

27

87504261

LEVER

latch release

1шт.

28

87414

LUBE NIPPLE,1/4" - 28

1шт.

29

87504067

ARM

boom latch release LH

1шт.

Includes 6567

1шт.

29

87504068

ARM

boom latch release RH

1шт.

Includes 6567

1шт.

Not Shown

1шт.

30

6567

DECAL

grease 200 hours

2шт.

31

87504259

ROLLER

boom latch

1шт.

32

87420337

SLEEVE

spring keeper

1шт.
