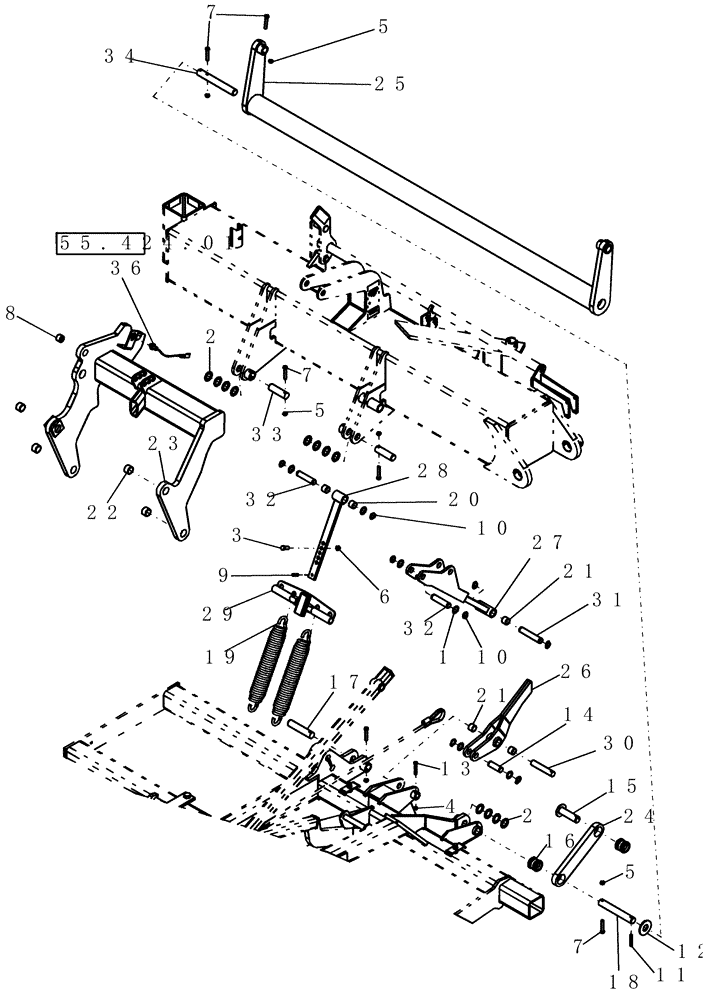

Запчасти Case IH 700 (39.100.11) - FRAME, OUTER WING BOOM (39) - FRAMES AND BALLASTING

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

16шт.

2

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

13шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

4

88902

NUT,3/8"-16

10шт.

5

280980

NUT,7/16"-14, GC

6шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

6шт.

8

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

9

4584

ROLL PIN

3/8" x 1 1/2"

1шт.

10

87019495

SNAP RING,#98, Ext

30шт.

11

87635861

ROLL PIN

3/8" x 2 1/2"

1шт.

12

22235

WASHER

1 17/64" id 3 1/4"

1шт.

13

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

8шт.

14

87418661

PIN

25.4 x 68 ul chrome

1шт.

15

87418717

PIN

rockshaft lift link

1шт.

16

87418720

BUSHING,31.2mm ID x 55mm OD x 48mm L

polyurethane 95a

2шт.

17

87419646

PIN

31.8 x 131 ul chrome

1шт.

18

87419649

PIN,31.75mm OD x 222mm L

31.8 x 185 ul chrome

1шт.

19

87420100

TENSION SPRING

7/16" wr 2 7/8" od 19 1/2"l

2шт.

20

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

21

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

20шт.

22

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

5шт.

23

87687009

ROCKSHAFT

outer short LH

1шт.

Includes 87420247, 3523

1шт.

23

87687013

ROCKSHAFT

outer short RH

1шт.

Includes 87420247, 3523

1шт.

Not Shown

1шт.

23

87687023

ROCKSHAFT

outer, 15' LH

1шт.

Includes 87420247, 3523

1шт.

Not Shown

1шт.

23

87687027

ROCKSHAFT

outer 15' RH

1шт.

Includes 87420247, 3523

1шт.

Not Shown

1шт.

24

87504254

LINK

intermediate rockshaft

1шт.

Includes 87418720

1шт.

25

87504063

ROCKSHAFT

intermediate

1шт.

Includes 87418720

1шт.

26

87503945

LEVER

depth control

1шт.

Includes 87420246

1шт.

27

87503609

ARM

weight transfer

1шт.

Includes 87420246, 87419797

1шт.

28

87503607

FOOT

weight transfer, wing

1шт.

Includes 87420246

1шт.

29

87503613

ADJUSTER

weight transfer spring

1шт.

30

87419814

PIN

25.4 x 122 ul chrome

1шт.

31

87419931

PIN

25.4 x 126 ul chr snap rng

1шт.

32

87420117

PIN

25.4 x 98 ul chrome

2шт.

33

87419929

PIN

31.75 mm x 94 mm ul chrome

2шт.

34

87419908

PIN

intermediate rockshaft

1шт.

35

87504255

LINK

rockshaft lift

1шт.

Includes 87504254, 87418720

1шт.

Not Shown

1шт.

36

84058863

SENSOR

1шт.

Refer to 55.424.01

1шт.
