Запчасти Case IH 700 (39.100.10) - FRAME, INNER WING BOOM (39) - FRAMES AND BALLASTING

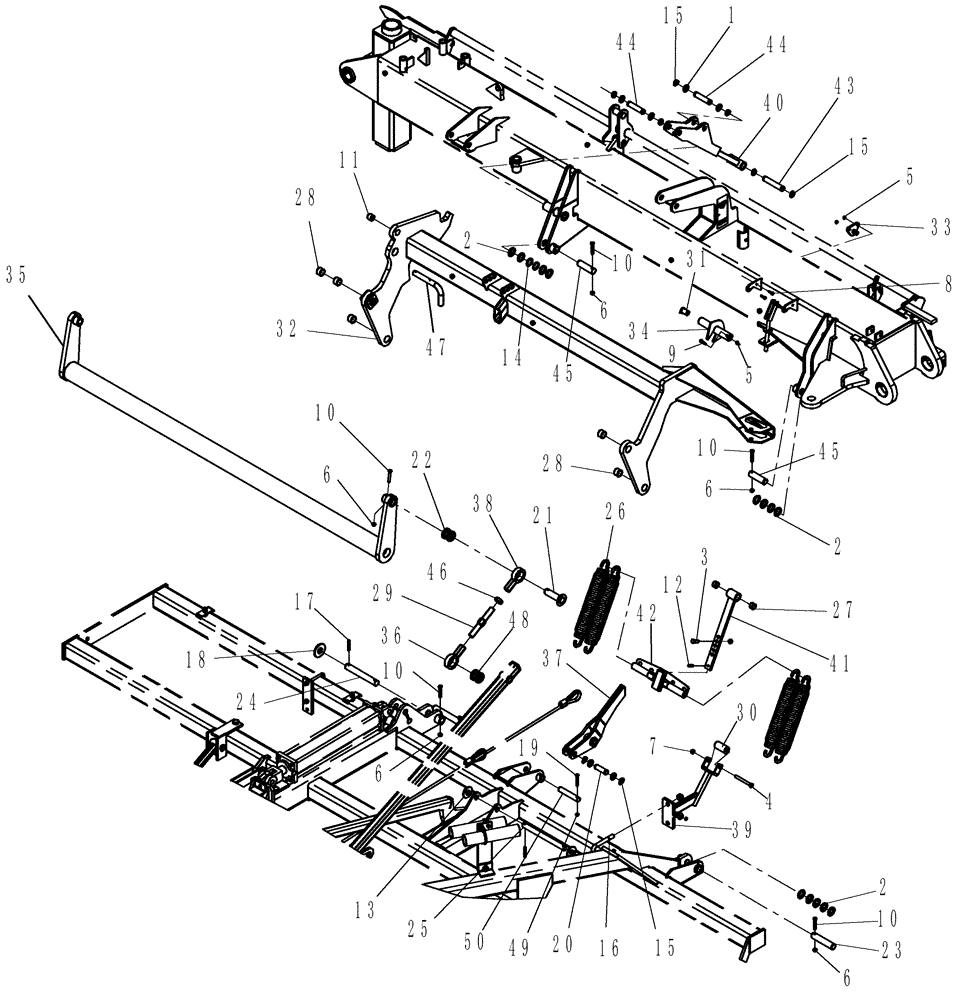

Схема запчастей Case IH 700 - (39.100.10) - FRAME, INNER WING BOOM (39) - FRAMES AND BALLASTING
10
6
41
44
8
31
47
14
6
15
6
35
5
38
30
15
32
25
13
46
26
50
9
10
17
45
22
49
2
10
48
10
12
1
20
45
5
11
24
4
3
23
6
28
21
15
2
18
33
28
43
44
29
36
2
16
19
6
37
40
42
7
39
10
34
27

Артикул

Название

Примечание

Количество

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

16шт.

2

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

13шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

4

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

5

280736

NUT,5/16"-18, GC

4шт.

6

280980

NUT,7/16"-14, GC

6шт.

7

86992215

LOCK NUT,1/2"-13, GC

4шт.

8

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

9

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

10

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

6шт.

11

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

12

4584

ROLL PIN

3/8" x 1 1/2"

1шт.

13

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

10шт.

14

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

15

87019495

SNAP RING,#98, Ext

28шт.

16

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

1шт.

17

87635861

ROLL PIN

3/8" x 2 1/2"

3шт.

18

22235

WASHER

1 17/64" id 3 1/4"

1шт.

19

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

9шт.

20

87418661

PIN

25.4 x 68 ul chrome

1шт.

21

87418717

PIN

rockshaft lift link

1шт.

22

87418720

BUSHING,31.2mm ID x 55mm OD x 48mm L

polyurethane 95a

2шт.

23

87419646

PIN

31.8 x 131 ul chrome

1шт.

24

87419649

PIN,31.75mm OD x 222mm L

31.8 x 185 ul chrome

1шт.

25

87419666

PIN

25.4 x 280 ul

1шт.

26

87420100

TENSION SPRING

7/16" wr 2 7/8" od 19 1/2"l

4шт.

27

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

28

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

7шт.

29

87420449

STUD

wing adjust long

1шт.

30

87502134

ROLLER

38.1 X 73 Nylatron

1шт.

31

87502496

FLANGED BEARING,0.75" ID x 1.24" OD x 1.488"

polymer flange

1шт.

32

87503915

ROCKSHAFT

inner LH

1шт.

Includes 87420247, 3523

1шт.

32

87503936

ROCKSHAFT

inner RH

1шт.

Includes 87420247, 3523

1шт.

Not Shown

1шт.

33

87504265

BRACKET

cam pivot

1шт.

34

87504266

CAM

hydraulic valve

1шт.

Left wing only

1шт.

35

87504063

ROCKSHAFT

intermediate

1шт.

Includes 87418720

1шт.

36

87563620

SOCKET

LH thread

1шт.

37

87503945

LEVER

depth control

1шт.

Includes 87420246

1шт.

38

87563621

SOCKET

RH thread

1шт.

39

87503949

ARM

valve control

1шт.

40

87503609

ARM

weight transfer

1шт.

Includes 87418720

1шт.

41

87503607

FOOT

weight transfer, wing

1шт.

42

87503613

ADJUSTER

weight transfer spring

1шт.

43

87419931

PIN

25.4 x 126 ul chr snap rng

1шт.

44

87420117

PIN

25.4 x 98 ul chrome

2шт.

45

87419929

PIN

31.75 mm x 94 mm ul chrome

2шт.

46

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

47

87504268

LOCK PIN

wing

1шт.

48

87418720

BUSHING,31.2mm ID x 55mm OD x 48mm L

polyurethane 95a

1шт.

49

88902

NUT,3/8"-16

1шт.

50

87419814

PIN

25.4 mm X 122 mm UL Chrome

1шт.

Выбрано товаров: 58
