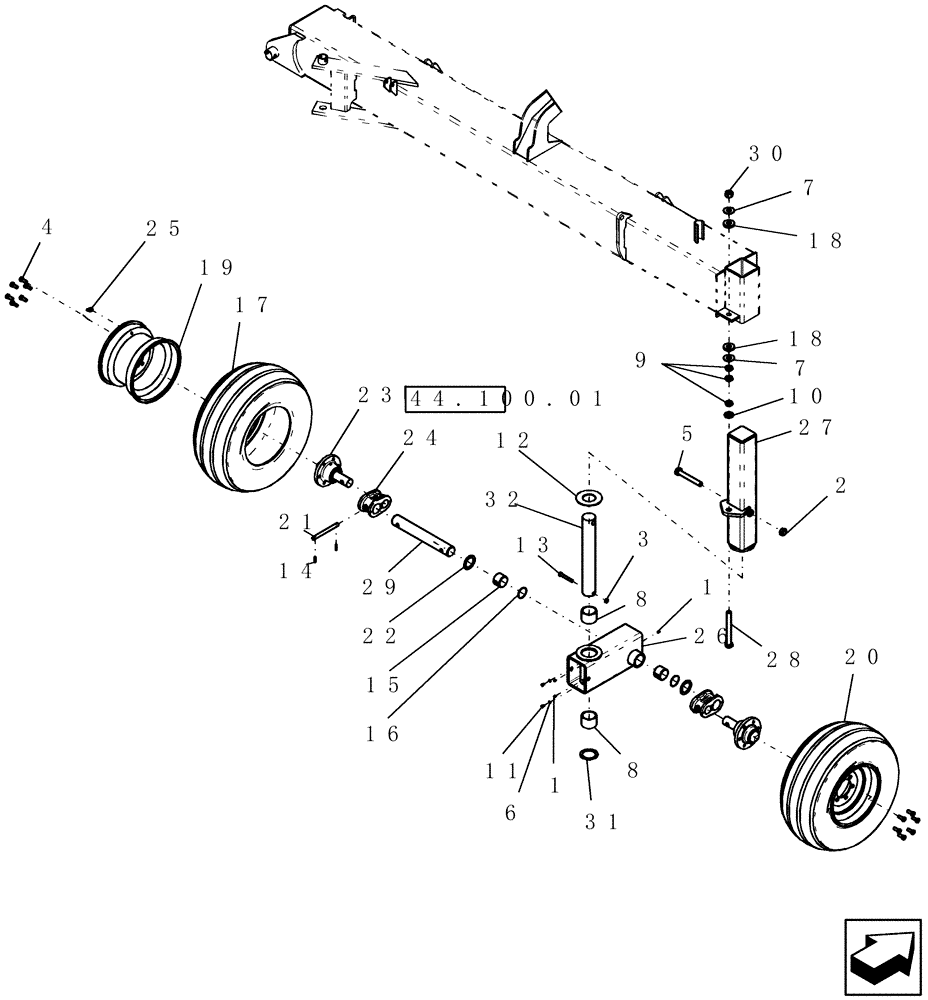

Запчасти Case IH 700 (39.100.09) - BEAM, OUTER WING CASTER AND TIRES AFTER 01/2010 (39) - FRAMES AND BALLASTING

2

280286

NUT,1"-8, GB

1шт.

3

86992215

LOCK NUT,1/2"-13, GC

1шт.

4

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

5

9602223

BOLT,Hex, 1" - 8 x 7", Gr 5

1шт.

6

80682

LOCK WASHER,1/4"

2шт.

7

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

8

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

9

87553819

JAM NUT

1"-8 Hex, Jam

3шт.

10

5871

WASHER

1 1/64" id x 2" x 5/16"

1шт.

11

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

12

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

13

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

14

9632

ROLL PIN

1/4" x 1 1/2"

4шт.

15

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

tension 2 3/4" x 2 1/2" x 2"

2шт.

16

22413

O-RING,2.5" ID x 2.75" OD x 0.125"

2 1/2" id x 2 3/4" od x 1/8"

2шт.

17

1030720

TYRE/TIRE

31 x 13 1/2" - 15 10pr hf-1 high floatation, static load r

2шт.

18

84224912

PAD

Poly, 63 mm od x 26 mm id x 13 mm Thick

2шт.

19

87505450

RIM

15X10LB 6 hole +1 1/8" offset

2шт.

20

87418870

WHEEL ASSY

15x10 6h with 31x13.5 10p

2шт.

21

87503793

PIN

walking beam

2шт.

22

87504106

WASHER

2 1/2" id 3 1/2" 1/8"

2шт.

23

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

24

87506497

BEAM

walking, caster

2шт.

25

1018564

VALVE

tire stem

2шт.

26

87503852

HOUSING

walking beam

1шт.

27

87503868

SLIDE

wheel std castering

1шт.

28

84224911

BOLT

1"-8 x 9", G8, Full Thrd

1шт.

29

87419011

SHAFT

cross walk beam

1шт.

30

87304132

NUT,1"-8, GC

1шт.

31

87503905

WASHER

single caster

1шт.

32

87418689

SPINDLE

wheel standard

1шт.
