Запчасти Case IH 700 (39.100.06) - BEAM, CENTER CASTER AND TIRES (39) - FRAMES AND BALLASTING

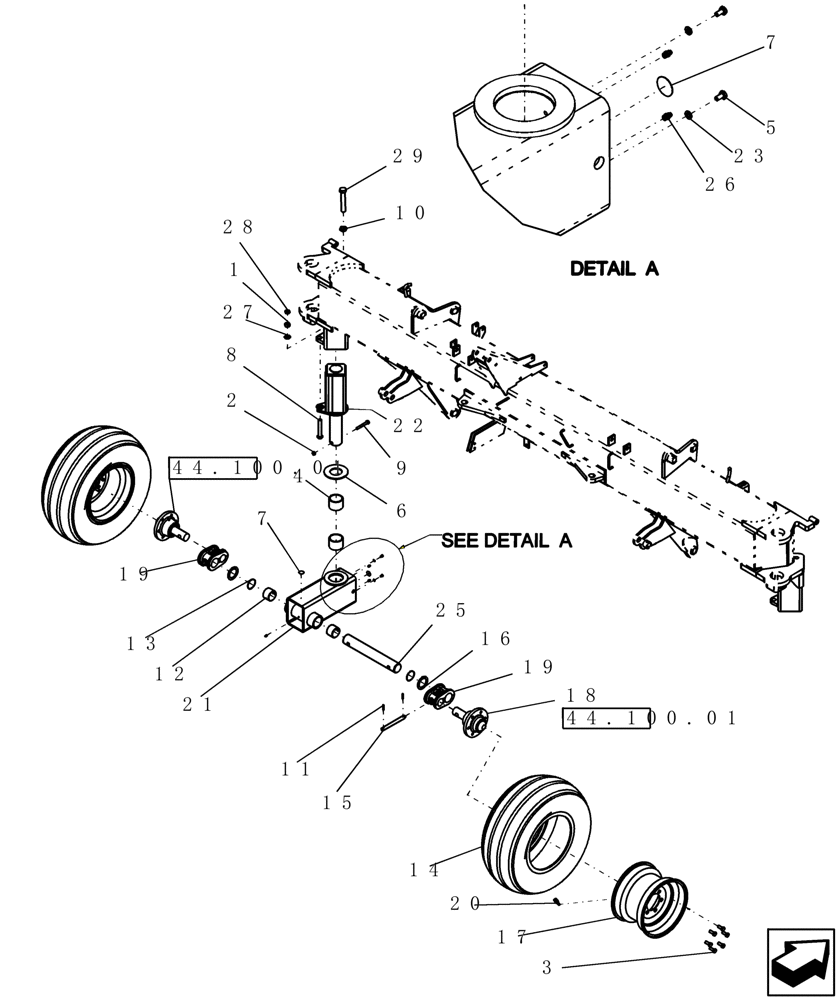

Схема запчастей Case IH 700 - (39.100.06) - BEAM, CENTER CASTER AND TIRES (39) - FRAMES AND BALLASTING
10
28
19
5
13
20
16
4
19
2
6
23
3
29
1
21
7
11
15
27
44.100.01
44.100.01
25
12
8
9
14
7
26
17
18
22

Артикул

Название

Примечание

Количество

1

280954

NUT,3/4"-10, G5

1шт.

2

86992215

LOCK NUT,1/2"-13, GC

1шт.

3

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

4

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

5

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

6

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

7

6565

DECAL

grease 10 hours

2шт.

8

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

1шт.

9

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

10

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

11

9632

ROLL PIN

1/4" x 1 1/2"

4шт.

12

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

tension 2 3/4" x 2 1/2" x 2"

2шт.

13

22413

O-RING,2.5" ID x 2.75" OD x 0.125"

2 1/2" id x 2 3/4" od x 1/8"

2шт.

14

400602A1

TYRE/TIRE

11l x 15 fi - f load range

2шт.

Standard

1шт.

14

1864

TYRE/TIRE

12 1/2 L x 15 fi - 8 ply

2шт.

High Float

1шт.

15

87503793

PIN

walking beam

2шт.

16

87504106

WASHER

2 1/2" id 3 1/2" 1/8"

2шт.

17

87696829

RIM

15 x 8 6H w/VG +1 1/8" offset

2шт.

Standard

1шт.

17

87698703

RIM

15 x 10 6H w/VG +1 1/8" offset

2шт.

High Float

1шт.

18

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

Refer to 44.100.01

1шт.

19

87506497

BEAM

walking, caster

2шт.

20

22802

VALVE

stem tire tr/801 hp

2шт.

Standard

1шт.

20

1018564

VALVE

tire stem

2шт.

High Float

1шт.

21

87503852

HOUSING

walking beam

1шт.

22

87503904

SLIDE

wheel standard center boom

1шт.

23

80682

LOCK WASHER,1/4"

2шт.

25

87419011

SHAFT

cross walk beam

1шт.

26

87414

LUBE NIPPLE,1/4" - 28

3шт.

27

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

28

84972

JAM NUT,Jam, 3/4"-10, G2

1шт.

29

22236

BOLT,Hex, 1" - 8 x 6", Gr 5, Full Thd

1шт.

30

87696831

TYRE/TIRE

15 x 8 6H w/11L - 15fi F

2шт.

Includes 87696829, 5961, 22802

1шт.

Standard

1шт.

30

87696880

TYRE/TIRE

15 x 10 6H w/12.5L - 15fi D

2шт.

Includes 87698703, 1864, 1012383

1шт.

High Float

1шт.

Выбрано товаров: 44
