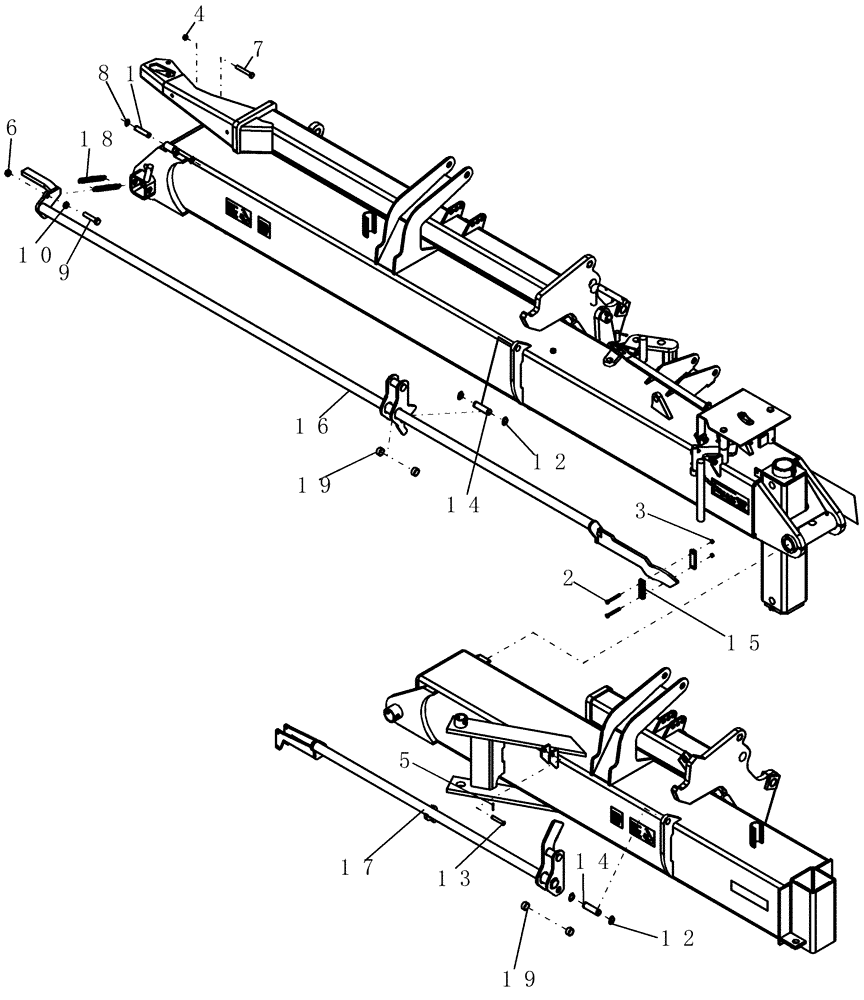

Запчасти Case IH 700 (39.100.05) - LOCKSHAFT, WING (39) - FRAMES AND BALLASTING

1

87419711

PIN

19 x 75 ul, Years: -01-MAY-09

1шт.

1

84171640

PIN

19 mm x 81.5 mm ul, Start Year: 01-MAY-09

2шт.

1

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

, Start Year: 01-MAY-09

4шт.

2

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

2шт.

3

280736

NUT,5/16"-18, GC

2шт.

4

86992215

LOCK NUT,1/2"-13, GC

1шт.

5

80755

COTTER PIN,1/8" OD x 1" L

2шт.

6

85700693

NUT,5/8" - 11, Gr C

1шт.

7

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

8

9449

SNAP RING

ext 11/16" id 5/64" thick heavy duty, for 3/4'' shaft

2шт.

9

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

10

9636972

JAM NUT,Jam, 5/8"-11, G2

1шт.

11

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

Not Shown

1шт.

12

87019495

SNAP RING,#98, Ext

4шт.

13

6855

CLEVIS PIN

1/2" x 2 3/4" fl

2шт.

14

87419630

PIN

25.4 x 77 ul snap ring

2шт.

15

87693252

BLOCK

lockshaft drive UHMW

2шт.

16

87503976

SHAFT

wing lock 15' inner LH

1шт.

16

87503983

SHAFT

wing lock 15' inner RH

1шт.

Not Shown

1шт.

17

87686698

SHAFT

wing lock outer 10' LH

1шт.

17

87686704

SHAFT

wing lock outer 10' RH

1шт.

Not Shown

1шт.

17

87686694

SHAFT

wing lock outer 15' LH

1шт.

Not Shown

1шт.

17

87686701

SHAFT

wing lock outer 15' RH

1шт.

Not Shown

1шт.

18

87506299

TENSION SPRING

7/64" wire 7/8" od x 6" long

4шт.

19

87504257

SPACER

lockshaft

4шт.
