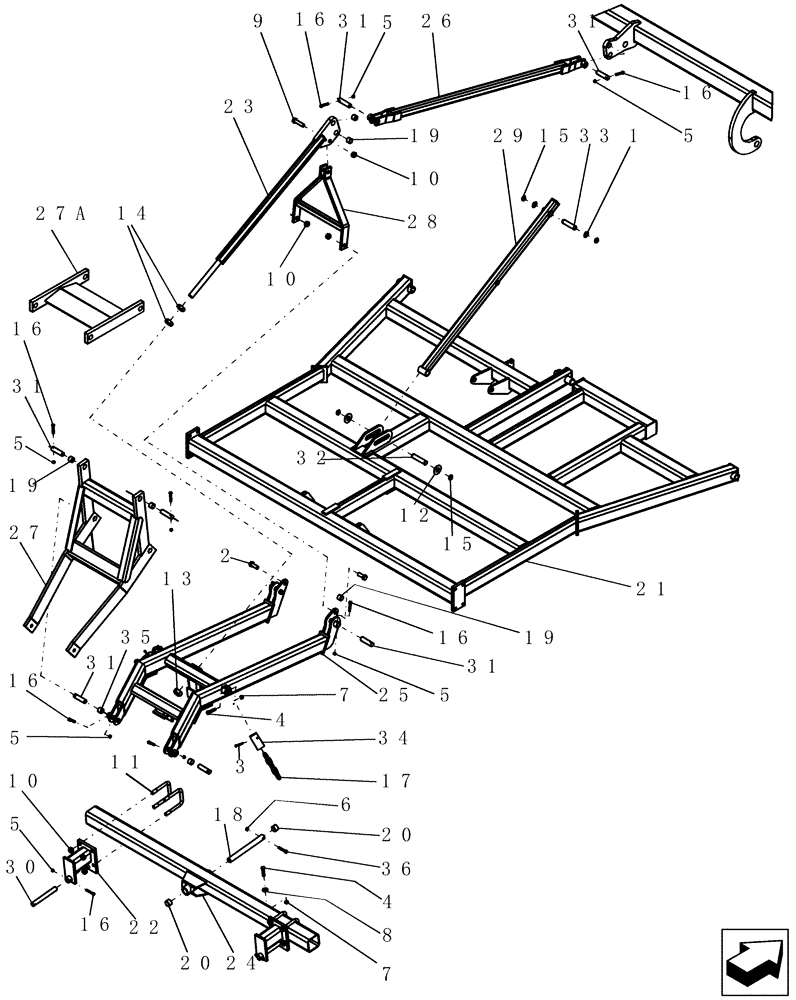

Запчасти Case IH 700 (39.100.03) - FRAME, CENTER SECTION (39) - FRAMES AND BALLASTING

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

2

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

3

86523962

COTTER PIN,1/4" x 3"

2шт.

4

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

5

88902

NUT,3/8"-16

10шт.

6

280980

NUT,7/16"-14, GC

2шт.

5

7827

SLOTTED NUT,1"-8, G2

For Use With Slotted Nut/Cotter Pin Bolster Bolts, Start Year: 01-NOV-11, Start Serial: YBS0003561

1шт.

7

86992215

LOCK NUT,1/2"-13, GC

4шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

9

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

10

280375

NUT,3/4"-10, GC

11шт.

11

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

4шт.

12

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

13

87323802

NUT

1 1/4"-12, GB

1шт.

14

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

2шт.

15

87019495

SNAP RING,#98, Ext

4шт.

16

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

10шт.

18

87420039

PIN

32 x 293 ul chrome

1шт.

16

432-1648

COTTER PIN,1/4" x 3"

For Use With Slotted Nut/Cotter Pin Bolster Bolts, Start Year: 01-NOV-11, Start Serial: YBS0003561

1шт.

17

87419654

CHAIN

lk 3/8" x 7.3 gr30 5 lk

2шт.

19

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

6шт.

20

6636

BUSHING

composite 1 1/2" x 1 1/4" x 1"

2шт.

21

87504138

FRAME

center section

1шт.

Includes 6635

1шт.

22

87564201

BRACKET

bolster mount

2шт.

24

87503620

FRAME

packer

1шт.

Includes 6636

1шт.

25

87503686

FRAME

packer

1шт.

26

87503615

SUPPORT

connector tire packer

1шт.

27

87503683

FRAME

transport rocker

1шт.

Includes 6636 and 6635

1шт.

For Packer Equipped Drills

1шт.

27a

87504064

FRAME

hitch support

1шт.

For Walking Beam Equipped Drills

1шт.

Includes four 6635

1шт.

28

87503612

FRAME

transport wheel lift

1шт.

29

87503616

LINK

weight transfer

1шт.

Includes 6635

1шт.

30

87525927

PIN

25 x 195 ul chrome

2шт.

30

84542309

BOLT

Threaded 1.00" X 10.00" Bolster Bolt, For Use With Slotted Nut/Cotter Pin Setup, Start Year: 01-NOV-11, Start Serial: YBS0003561

2шт.

31

87420027

PIN

25 x 79 ul chrome

8шт.

32

87420112

PIN

25.4 x 108 ul chrome

1шт.

33

87420117

PIN

25.4 x 98 ul chrome

1шт.

34

87419656

TUBE,50.8mm OD x 100 mm L

spring retainer

2шт.

35

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

4шт.

36

280874

BOLT,Hex, 7/16" - 14 x 3", Gr 8

1шт.
