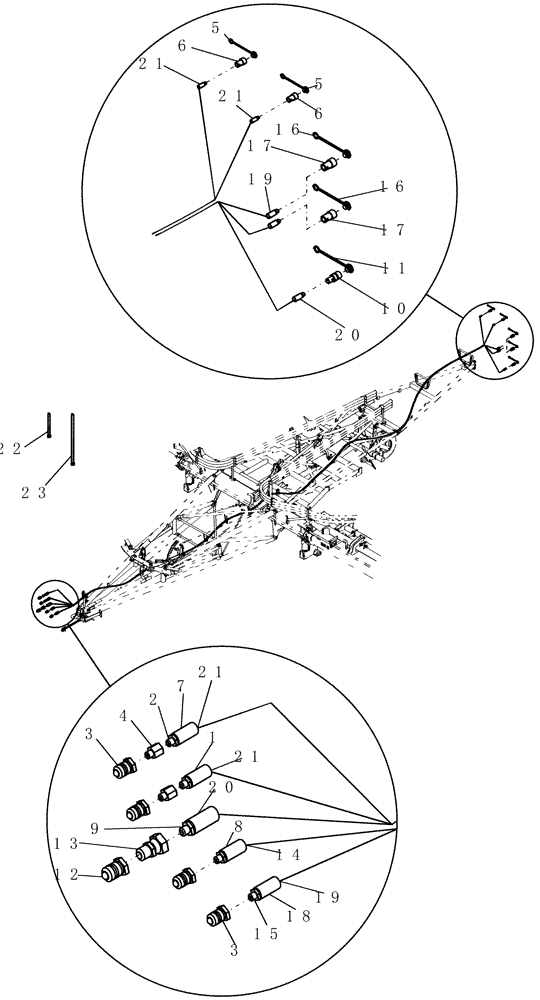

Запчасти Case IH 700 (35.900.15) - HYDRAULIC, TOW BEHIND AIRCART (35) - HYDRAULIC SYSTEMS

1

GL-700.32

DECAL

fan pressure

2шт.

2

GL-374

COVER

hydraulic hose label - 2"

4шт.

3

9412

QUICK MALE COUPLING

1/2"

4шт.

4

21668

REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT

hydraulic 1/2" mpt x 3/4" fpt

2шт.

5

9360

PLUG

dust, pioneer coupler - 1"

2шт.

6

9359

COUPLING, QUICK, FEM

1"

2шт.

7

GL-700.33

DECAL

fan return

2шт.

8

GL-700.42

DECAL

drain

2шт.

8

425239A1

DECAL

drain French

2шт.

9

87501182

COVER

hose label, 1 1/2"

2шт.

10

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

11

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

12

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

13

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

14

GL-700.34

DECAL

auger pressure

2шт.

15

GL-373

COVER

hydraulic hose label - 1 1/2"

4шт.

16

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

17

6935

COUPLING, QUICK, FEM

3/4"

2шт.

18

GL-700.35

DECAL

auger return

2шт.

19

87502251

HYDRAULIC HOSE,19.05mm ID x 630mm L, SAE 100R17

3/4" x 630" fl

2шт.

20

87502252

HYDRAULIC HOSE,19mm ID x 16002mm L

3/4" x 630" fl, 250 psi, case drain line

1шт.

21

87502248

HYDRAULIC HOSE,25.4mm ID x 16002mm L, SAE 100R17

1" x 630" fl

2шт.

22

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

10шт.

23

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

15шт.
