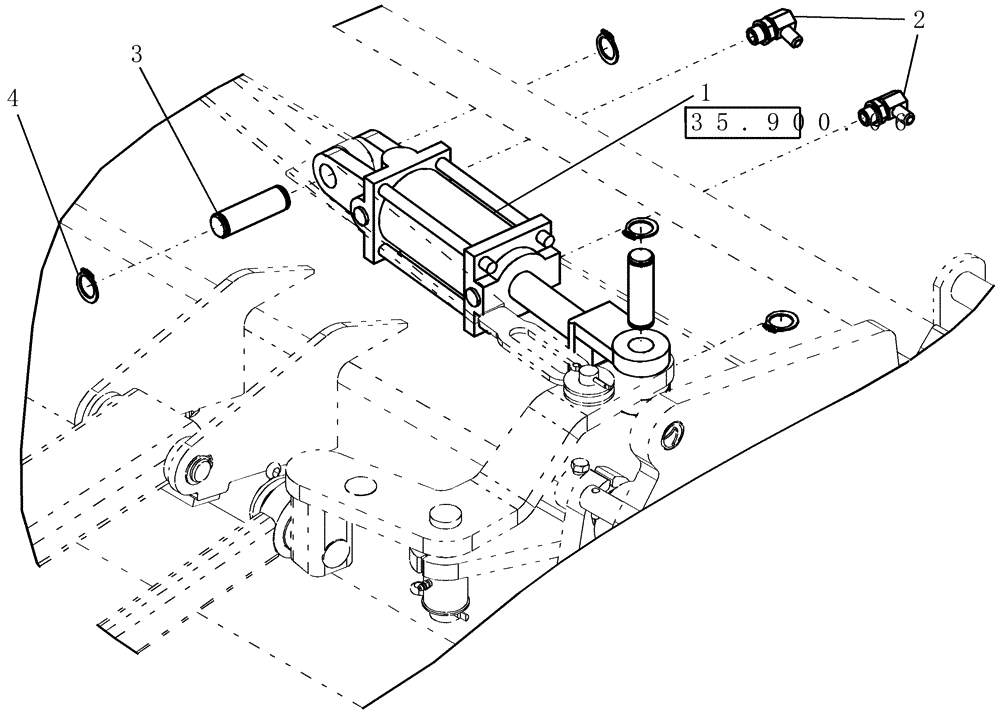

Запчасти Case IH 700 (35.900.11) - CYLINDER, LOCKING CASTER (35) - HYDRAULIC SYSTEMS

1

87419786

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3" x 4" 3000 psi no pins

1шт.

Refer to 35.900.06

1шт.

2

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

3

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

2шт.

4

87019495

SNAP RING,#98, Ext

4шт.
