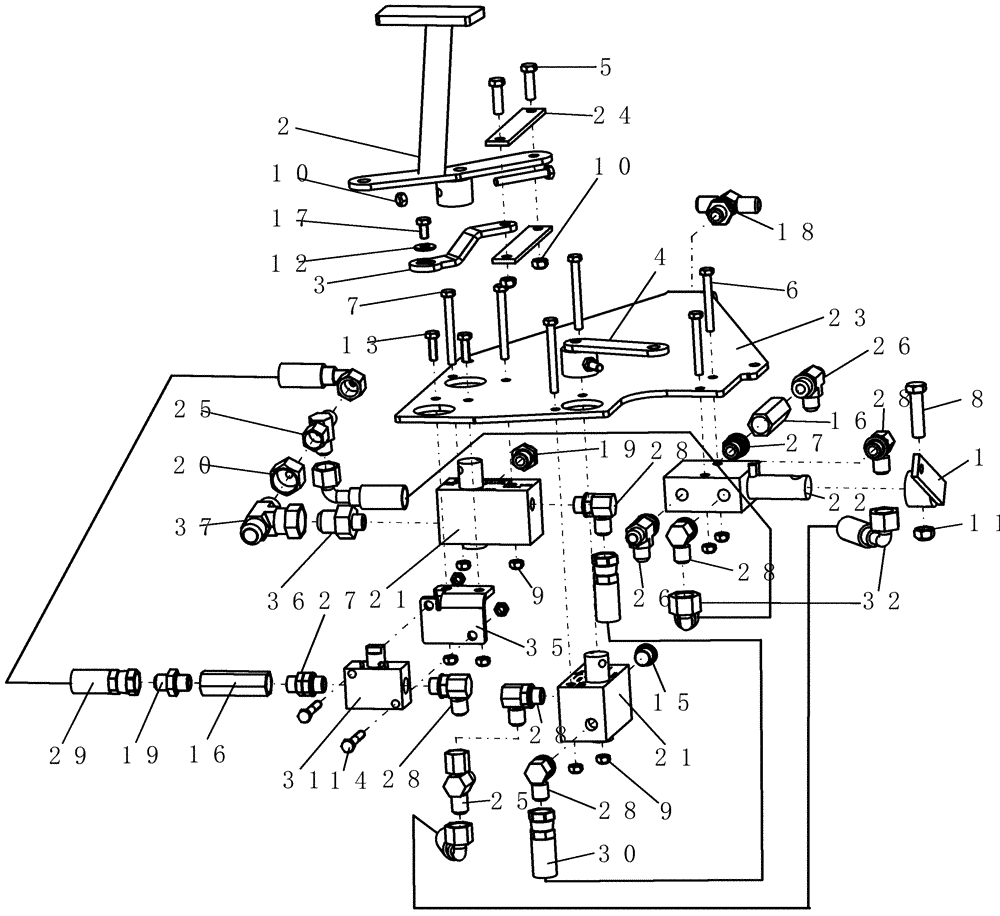

Запчасти Case IH 700 (35.900.04) - HYDRAULIC, PLATE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

87504211

ARM

hydraulic valve

1шт.

2

87715294

ARM

hydraulic valve

1шт.

3

87697474

ARM

hydraulic valve

1шт.

4

87571659

ARM

valve actuator

1шт.

5

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

6

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

7

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

4шт.

8

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

280736

NUT,5/16"-18, GC

12шт.

10

88902

NUT,3/8"-16

2шт.

11

86992215

LOCK NUT,1/2"-13, GC

1шт.

12

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

14

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

16

22357

CHECK VALVE

1/2"fb 1/2"fb

2шт.

17

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

18

23388

TEE

fitting, hydraulic - bulkhead

1шт.

19

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

20

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

1шт.

21

87502276

VALVE

selector w cross check, Shoemaker #8032 ->8170

2шт.

22

87505291

VALVE

selector 2 circuit

1шт.

23

87724559

BRACKET

hydraulic valves

1шт.

24

87505266

LINK

hydraulic valve short

2шт.

25

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

26

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

27

1261010C1

FITTING

stl union 3/4" mb 3/4" mb straight

2шт.

28

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

6шт.

29

22510

HYDRAULIC HOSE

1/2" x 20" fl, 1/2" fjic x 1/2" fjic

1шт.

30

24276

HYDRAULIC HOSE,0.50" ID x 16.00", SAE J517, SAE J516, SAE J846, SAE J1273

1шт.

31

87501817

SHUT-OFF VALVE

1шт.

32

87715485

HYDRAULIC HOSE

1/2" x 20" fl

2шт.

35

87697476

BRACKET

hydraulic valve mount

1шт.

36

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

37

86513017

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1шт.
