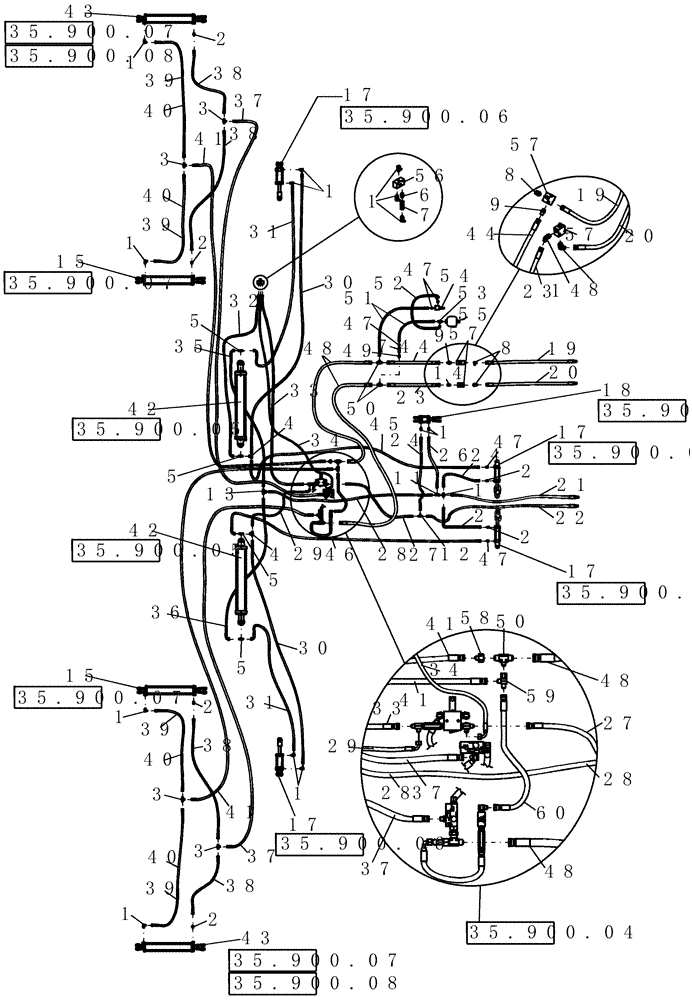

Запчасти Case IH 700 (35.900.02) - HYDRAULIC, LAYOUT (35) - HYDRAULIC SYSTEMS

1

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

11шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

10шт.

3

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

4шт.

4

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

5

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

4шт.

6

1261010C1

FITTING

stl union 3/4" mb 3/4" mb straight

1шт.

7

22357

CHECK VALVE

1/2"fb 1/2"fb

1шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

10

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

11

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

12

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

13

23388

TEE

fitting, hydraulic - bulkhead

1шт.

14

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

15

87420235

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4" x 24" 3000 psi no pins

2шт.

Refer to 35.900.07

1шт.

17

87419786

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3" x 4" 3000 psi no pins

4шт.

Refer to 35.900.06

1шт.

18

87567768

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 50.8mm Stroke

2" x 2"

1шт.

Refer to 35.900.09

1шт.

19

87570931

HYDRAULIC HOSE,19.04 mm ID x 4622.80 mm, SAE 100R17

1шт.

20

87570932

HYDRAULIC HOSE,19.04 mm ID x 4216.40 mm, SAE 100R17

1шт.

21

87502290

HYDRAULIC HOSE,9.65 mm ID x 3683.00 mm, SAE 100R17

1шт.

22

87570930

HYDRAULIC HOSE,9.65 mm ID x 4267.20 mm, SAE 100R17

1шт.

23

51200884

HYDRAULIC HOSE,0.75" ID x 36.00", SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

3/4" x 36" fl, 3/4" fjic x 3/4" fjic

1шт.

24

87535033

HYDRAULIC HOSE

3/8" x 10" fl

2шт.

25

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

1шт.

26

87574449

HYDRAULIC HOSE,9.52 mm ID x 508.00 mm, SAE 100R17

1шт.

27

87504274

HYDRAULIC HOSE

3/8" x 104" fl

1шт.

28

1284303C1

HYDRAULIC HOSE

3/8" x 145" fl

1шт.

29

87535027

HYDRAULIC HOSE

3/8" x 35" fl

1шт.

30

87535077

HYDRAULIC HOSE

3/8" x 184" fl

2шт.

31

87570933

HYDRAULIC HOSE

3/8" x 175" fl

1шт.

32

87504289

HYDRAULIC HOSE

3/8" x 93" fl

1шт.

33

87504347

HYDRAULIC HOSE

3/8" x 122" fl

1шт.

34

87535029

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

35

87535028

HYDRAULIC HOSE

3/8" x 58" fl

1шт.

36

87535035

HYDRAULIC HOSE

3/8" x 64" fl

1шт.

37

87535075

HYDRAULIC HOSE

1/2" x 319" fl

2шт.

37

87535081

HYDRAULIC HOSE

1/2" x 296" fl

2шт.

38

87535087

HYDRAULIC HOSE

3/8" x 96" fl

2шт.

38

87535086

HYDRAULIC HOSE

3/8" x 72" fl

2шт.

39

87504344

HYDRAULIC HOSE,9.53mm ID x 3048mm L, SAE 100R17

3/8" x 120" fl

4шт.

40

87535087

HYDRAULIC HOSE

3/8" x 96" fl

4шт.

41

87535074

HYDRAULIC HOSE

1/2" x 313" fl

2шт.

41

87535080

HYDRAULIC HOSE,12.7mm ID x 7366mm L, SAE 100R17

1/2" x 290" fl

2шт.

42

87504468

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" mon 3000 psi without pins

1шт.

Refer to 35.900.05

1шт.

43

87420235

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4" x 24" 3000 psi no pins

2шт.

70' Only

1шт.

Refer to 35.900.07

1шт.

43

87505357

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 1/2" x 24" 3000 psi no pins

2шт.

60' Only

1шт.

Refer to 35.900.08

1шт.

44

87700090

HYDRAULIC HOSE,19.00 mm ID x mm, SAE 100R17 Class 25

1шт.

45

1032442

HYDRAULIC HOSE

3/8" x 168" fl

1шт.

46

87535031

HYDRAULIC HOSE

3/8" x 184" fl

1шт.

47

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

5шт.

48

87707514

HYDRAULIC HOSE,19.00 mm ID x mm, SAE 100R17 Class 25

2шт.

49

412756A1

FITTING

1/2" mb 1/2" fjx

1шт.

50

266315

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

3шт.

51

87700096

HYDRAULIC HOSE,12.50 mm ID x mm, SAE 100R17 Class 25

2шт.

52

87707515

HYDRAULIC HOSE

1/2" x 28" fl

1шт.

53

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

54

87699198

VALVE PRESSURE RELIE

2200 psi

1шт.

55

87705954

ACCUMULATOR

1.4L

1шт.

56

87502277

HYDRAULIC VALVE

selector single circuit, Shoemaker 8171

1шт.

57

87420159

VALVE

assy limit poppet shoemaker 8126

2шт.

58

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

1шт.

59

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

60

22510

HYDRAULIC HOSE

1/2" x 20" fl, 1/2" fjic x 1/2" fjic

1шт.
