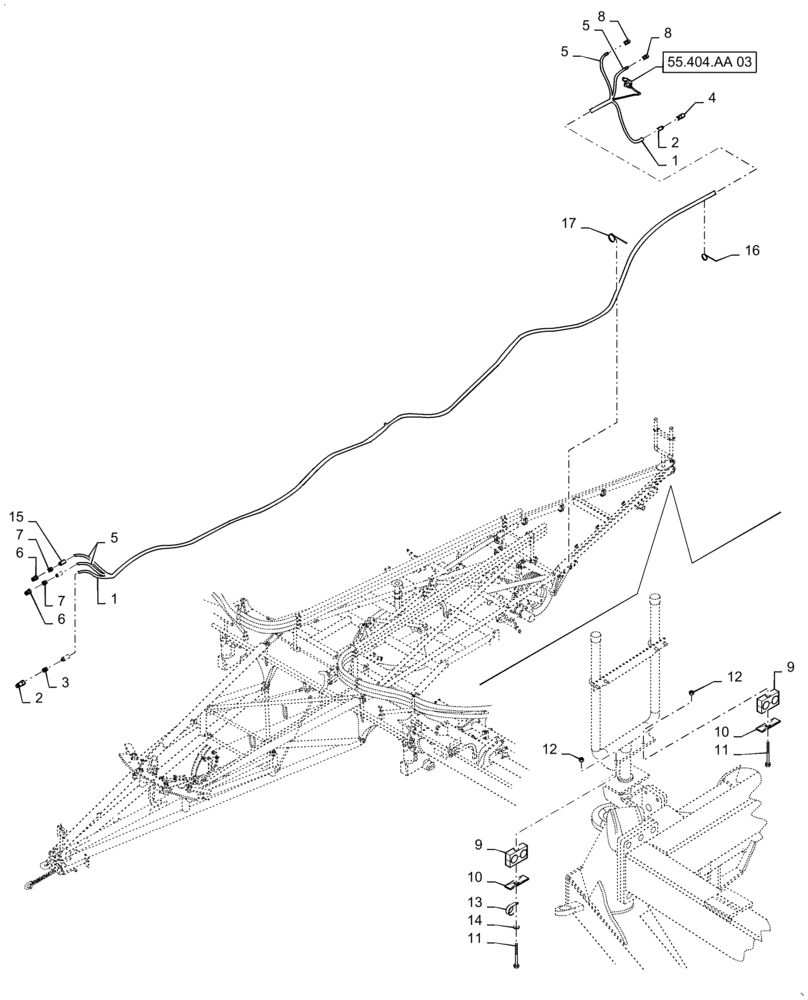

Запчасти Case IH 700 (35.100.AA[01]) - HYD 60 SINGLE SHOOT TOW BEHIND LHD (35) - HYDRAULIC SYSTEMS

1

47788937

HYDRAULIC HOSE

12.5 X 17000 60 Foot Drills , Start Serial: YFS062001

1шт.

1

47788918

HYDRAULIC HOSE

12.5 X 18500 70 Foot Drills , Start Serial: YFS062001

1шт.

2

385358A1

QUICK MALE COUPLING,3/8"

, Start Serial: YFS062001

1шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

, Start Serial: YFS062001

2шт.

4

385357A1

COUPLING

QUICK, FEMALE, Start Serial: YFS062001

1шт.

5

47788914

HYDRAULIC HOSE

25 X 17000 60 Foot Drills , Start Serial: YFS062001

2шт.

5

47788877

HYDRAULIC HOSE

25 X 18500 70 Foot Drills , Start Serial: YFS062001

2шт.

6

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

, Start Serial: YFS062001

2шт.

7

86512927

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11-1/2 NPT

, Start Serial: YFS062001

2шт.

8

9359

COUPLING, QUICK, FEM

, Start Serial: YFS062001

2шт.

9

87000923

HOSE CLAMP

2 HOLE 38.1-38.1 MM , Start Serial: YFS062001

1шт.

10

87000231

PLATE

Cover , Start Serial: YFS062001

1шт.

11

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

, Start Serial: YFS062001

1шт.

12

68841

NUT,M8 x 1.25, Cl 8

, Start Serial: YFS062001

1шт.

13

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

, Start Serial: YFS062001

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Serial: YFS062001

1шт.

15

GL-374

COVER

HOSE LABEL COV 2IN, Start Serial: YFS062001

2шт.

16

87502038

CABLE TIE

Small , Start Serial: YFS062001

1шт.

17

87557086

CABLE TIE

30.339X.273 IN, NYLON, BLACK, Start Serial: YFS062001

1шт.

18

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.
