Запчасти Case IH 700 (77.100.AB[23]) - AIR PKG TOW BEHIND DOUBLE SHOOT 70FT 10 STCP (77) - SEEDING/PLANTING

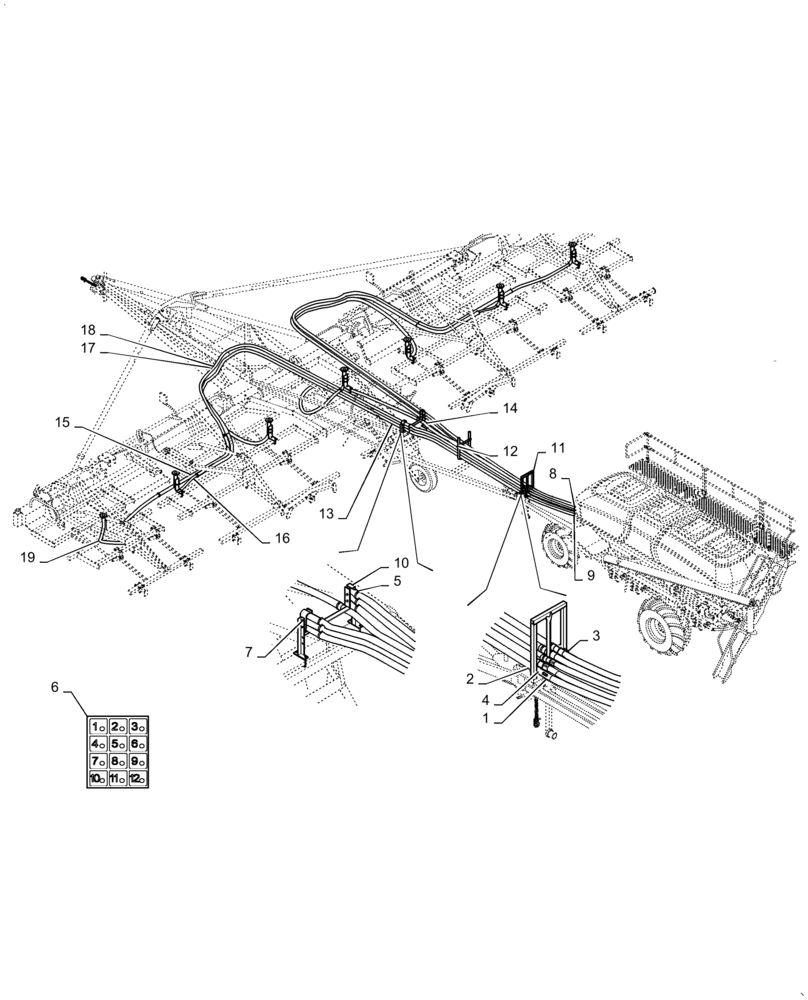

Схема запчастей Case IH 700 - (77.100.AB[23]) - AIR PKG TOW BEHIND DOUBLE SHOOT 70FT 10 STCP (77) - SEEDING/PLANTING
11
7
19
13
15
17
14
4
18
1
3
10
8
16
5
2
6
12
9

Артикул

Название

Примечание

Количество

1

14613871

COTTER PIN

SLOTTED, 12 X 60MM , Start Serial: YFS062001

1шт.

2

47717297

TUBE

AIR PACK FML LOOSE, Start Serial: YFS062001

14шт.

3

47720057

TUBE

AIR PACK MALE MANIFOLD , Start Serial: YFS062001

8шт.

4

47728076

SPACER

AIR PACK MANIFOLD BLK, Start Serial: YFS062001

2шт.

5

47738001

TUBE

AIR PACK MALE MANIFOLD , Start Serial: YFS062001

6шт.

6

47748066

DECAL

AIRPACK 1-12 UPPER RUNS, Start Serial: YFS062001

3шт.

6

47748071

DECAL

AIRPACK 1-12 LOWER RUNS, Start Serial: YFS062001

3шт.

7

47748283

PIN

CLEVIS, 10 X 275 , Start Serial: YFS062001

8шт.

8

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

, Start Serial: YFS062001

56шт.

9

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

, Start Serial: YFS062001

2шт.

10

4731

CAP

VINYL 2.5 ID 1 LG BLK, Start Serial: YFS062001

14шт.

11

10796401

COTTER PIN,M3.2 x 18

, Start Serial: YFS062001

8шт.

12

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

, Start Serial: YFS062001

16шт.

13

47787120

TUBE

PRIMARY TBH, Start Serial: YFS062001

6шт.

14

47787114

TUBE

PRIMARY STRAIGHT, BLK, Start Serial: YFS062001

1шт.

15

87504415

TUBE,63.5 mm OD x 2636mm L

SOFT J, Start Serial: YFS062001

2шт.

16

87504417

TUBE,63.5 mm OD x 1991 mm L

J SHORT, Start Serial: YFS062001

2шт.

17

6103

HOSE

AIR, 2.5 SPIRAL PVC BLK, Start Serial: YFS062001

6шт.

18

6104

HOSE

2.5 X 60FT PVC BLK SPL, Start Serial: YFS062001

2шт.

19

6108

HOSE

1IN POLYBLK 9 EVA 100FT, Start Serial: YFS062001

16шт.

Выбрано товаров: 20
