Запчасти Case IH 700 (77.100.AB[20]) - AIR PKG TOW BTWEEN DOUBLE SHOOT 70FT 12" (77) - SEEDING/PLANTING

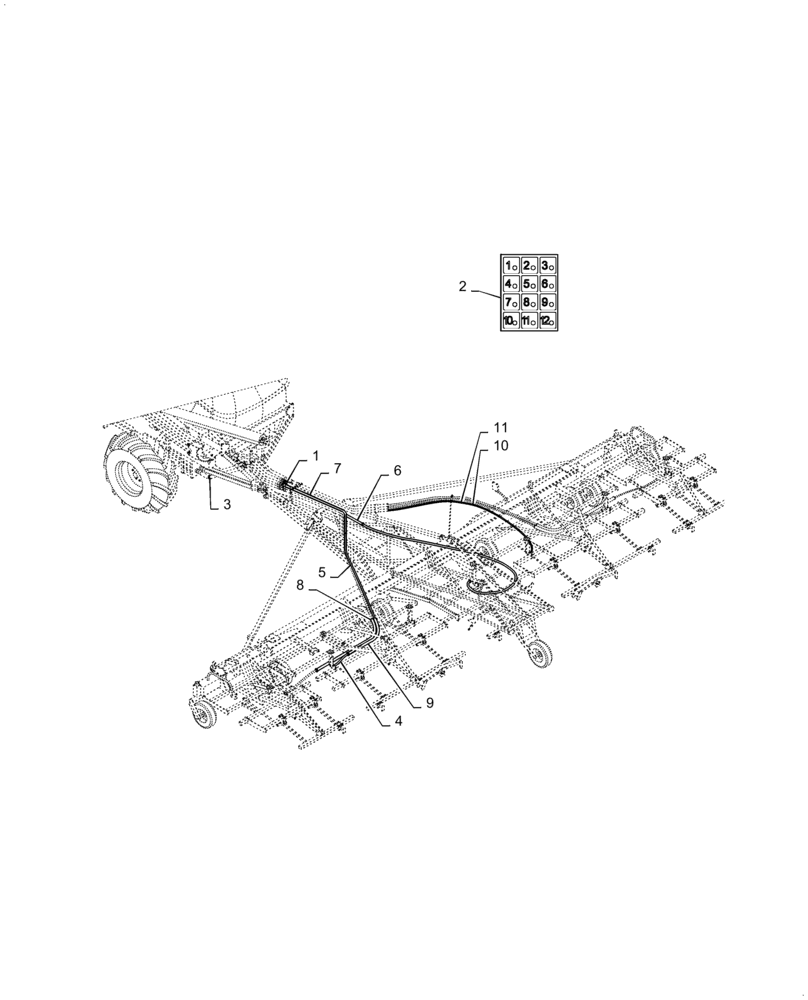

Схема запчастей Case IH 700 - (77.100.AB[20]) - AIR PKG TOW BTWEEN DOUBLE SHOOT 70FT 12" (77) - SEEDING/PLANTING
11
8
7
10
2
9
5
4
1
3
6

Артикул

Название

Примечание

Количество

1

47719522

TUBE

AIR PACK MALE LOOSE, Start Serial: YFS062001

14шт.

2

47748071

DECAL

AIRPACK 1-12 LOWER RUNS, Start Serial: YFS062001

3шт.

2

47748066

DECAL

AIRPACK 1-12 UPPER RUNS, Start Serial: YFS062001

3шт.

3

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

, Start Serial: YFS062001

28шт.

4

87502038

CABLE TIE

SMALL, Start Serial: YFS062001

25шт.

5

87557086

CABLE TIE

30.339X.273 IN, NYLON, BLACK, Start Serial: YFS062001

30шт.

6

47787196

TUBE

PRIMARY STRAIGHT FML, BLK, Start Serial: YFS062001

1шт.

7

47787189

TUBE

PRIMARY TBT FML, BLK, Start Serial: YFS062001

6шт.

8

87504415

TUBE,63.5 mm OD x 2636mm L

SOFT J, Start Serial: YFS062001

2шт.

9

87504417

TUBE,63.5 mm OD x 1991 mm L

J SHORT, Start Serial: YFS062001

2шт.

10

6103

HOSE

AIR, 2.5 SPIRAL PVC BLK, Start Serial: YFS062001

4шт.

11

6104

HOSE

2.5 X 60FT PVC BLK SPL, Start Serial: YFS062001

2шт.

Выбрано товаров: 12
