Запчасти Case IH 700 (77.100.AB[06]) - AIR PKG TOW BEHIND SS 60FT 7.5" (77) - SEEDING/PLANTING

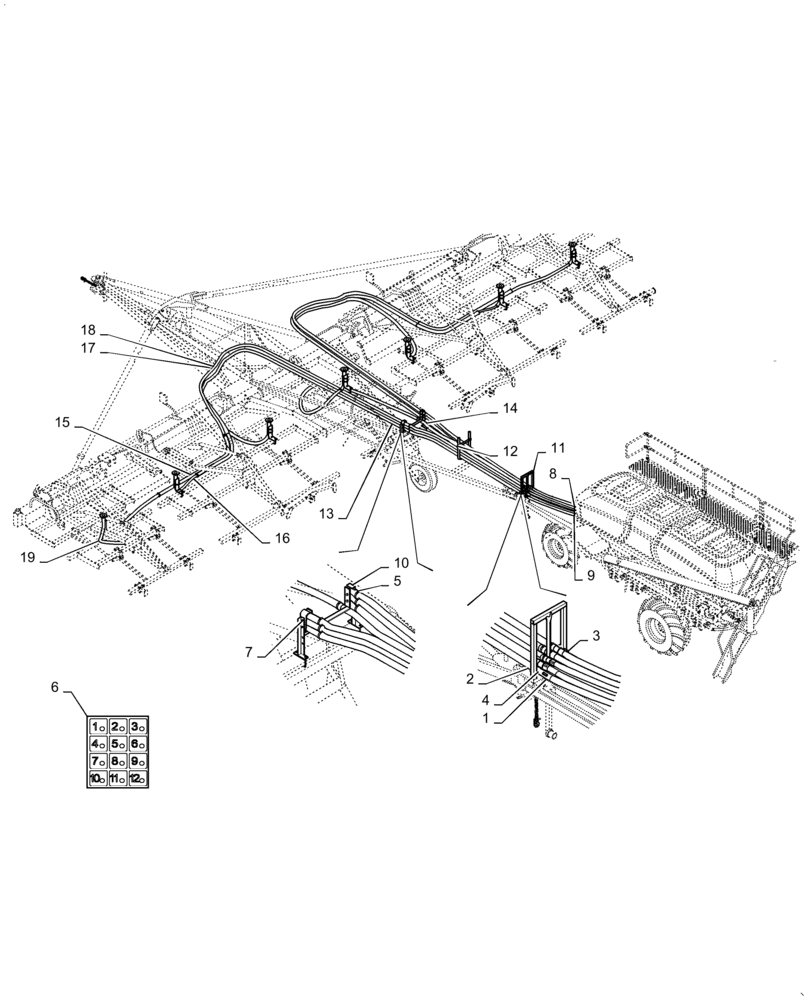

Схема запчастей Case IH 700 - (77.100.AB[06]) - AIR PKG TOW BEHIND SS 60FT 7.5" (77) - SEEDING/PLANTING
14
16
5
18
1
4
15
19
13
12
17
6
3
2
8
7
9
11
10

Артикул

Название

Примечание

Количество

1

14613871

COTTER PIN

SLOTTED, 12 X 60MM, Start Serial: YFS062001

1шт.

2

47717297

TUBE

AIR PACK FML LOOSE, Start Serial: YFS062001

7шт.

3

47720057

TUBE

AIR PACK MALE MANIFOLD , Start Serial: YFS062001

4шт.

4

47728076

SPACER

AIR PACK MANIFOLD BLK , Start Serial: YFS062001

1шт.

5

47738001

TUBE

AIR PACK MALE MANIFOLD, Start Serial: YFS062001

3шт.

6

47748071

DECAL

AIR PACK 1-12 LOWER RUNS, Start Serial: YFS062001

3шт.

7

47748283

PIN

CLEVIS, 10 X 275, Start Serial: YFS062001

4шт.

8

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

, Start Serial: YFS062001

28шт.

9

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

1.312X2.5X0.15 , Start Serial: YFS062001

2шт.

10

4731

CAP

VINYL 2.5 ID 1 LG BLK, Start Serial: YFS062001

7шт.

11

10796401

COTTER PIN,M3.2 x 18

COTTER, 3.2 X 18 STL , Start Serial: YFS062001

4шт.

12

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

, Start Serial: YFS062001

8шт.

13

47787120

TUBE

PRIMARY TBH, Start Serial: YFS062001

6шт.

14

47787114

TUBE

PRIMARY STRAIGHT, BLK, Start Serial: YFS062001

1шт.

15

87504415

TUBE,63.5 mm OD x 2636mm L

SOFT J, Start Serial: YFS062001

2шт.

16

87504417

TUBE,63.5 mm OD x 1991 mm L

J SHORT, Start Serial: YFS062001

2шт.

17

6103

HOSE

AIR, 2.5 SPIRAL PVC BLK, Start Serial: YFS062001

2шт.

18

6104

HOSE

2.5 X 60FT PVC BLK SPL, Start Serial: YFS062001

2шт.

19

87410257

HOSE

.875IN POLYBLK 9 EVA 100FT, Start Serial: YFS062001

9шт.

Выбрано товаров: 19
