(75.200.43) - STEALTH, MOUNTING HARDWARE FOR OPENERS

Запчасти Case IH 700 (75.200.43) - STEALTH, MOUNTING HARDWARE FOR OPENERS (75) - SOIL PREPARATION

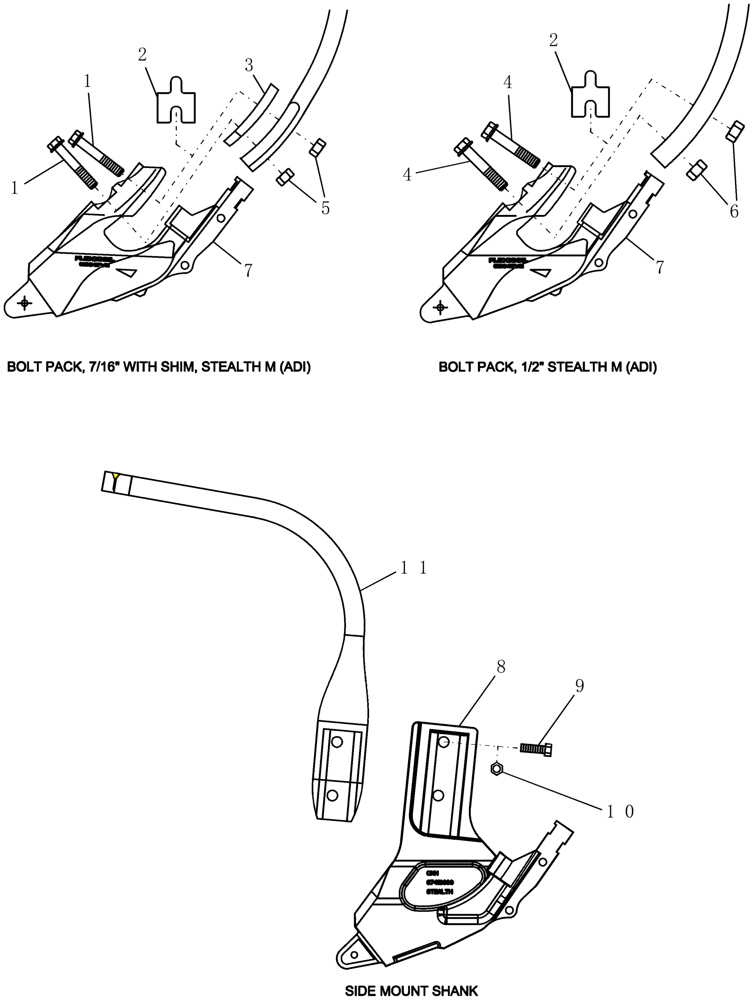

Схема запчастей Case IH 700 - (75.200.43) - STEALTH, MOUNTING HARDWARE FOR OPENERS (75) - SOIL PREPARATION
2
1
9
7
2
1
8
4
4
7
11
5
10
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

21481

BOLT

fg 7/16"-14 x 2 3/4" G8 hwh sfl

1шт.

2

GD-808

SHIM

angle adjustment

1шт.

3

87506240

SHIM

adapter, Serial Range: 47º-50º

1шт.

4

21482

BOLT

fg 1/2"-13 x 2 3/4" G8 hwh sfl

2шт.

5

87343989

NUT

7/16"-14, heavy, GC

1шт.

6

432631A1

NUT

1/2"-13, heavy, GC

1шт.

7

GD-847V3

BODY

cast Stealth

1шт.

8

87418698

BOOT

cast 84 degree Stealth edge on

1шт.

9

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

10

86992215

LOCK NUT,1/2"-13, GC

2шт.

11

87418694

SHANK

side mount 550 trip

1шт.
