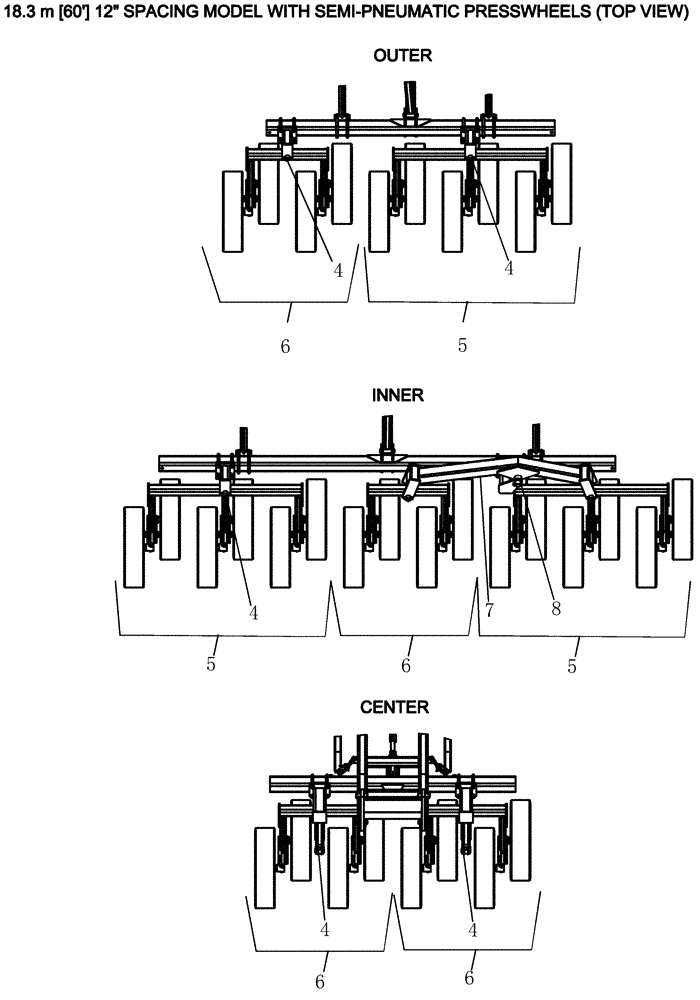

Запчасти Case IH 700 (75.200.28) - LAYOUT, PRESSWHEELS 18.3 M 60 - 12" SPACING (75) - SOIL PREPARATION

4

87564201

BRACKET

bolster mount

5шт.

5

NSS

NOT SOLD SEPARAT

6 TIRE WHEEL ASSEMBLY - 12"

3шт.

6

NSS

NOT SOLD SEPARAT

4 TIRE WHEEL ASSEMBLY - 12"

4шт.

7

87564206

FRAME

packer dbl right offset, Years: -01-MAY-09

1шт.

Includes 87420247

1шт.

Shown

1шт.

Note: If replacing 87564206 with 84160516, you must also replace 87564208 with 84160505

1шт.

7

84160516

BOLSTER

Offset, Double Packer RH, Start Year: 01-MAY-09

2шт.

Includes 87420247

1шт.

Shown

1шт.

7

87564205

FRAME

packer dbl left offset, Years: -01-MAY-09

1шт.

Includes 87420247

1шт.

Not Shown

1шт.

Note: If replacing 87564205 with 84160514, you must also replace 87564208 with 84160505

1шт.

7

84160514

BOLSTER

Offset, Double Packer LH, Start Year: 01-MAY-09

1шт.

Includes 87420247

1шт.

Not Shown

1шт.

8

87564214

BRACKET

double bolster packer RT

1шт.

Shown

1шт.

8

87564213

BRACKET

double bolster packer LT

1шт.

Not Shown

1шт.
