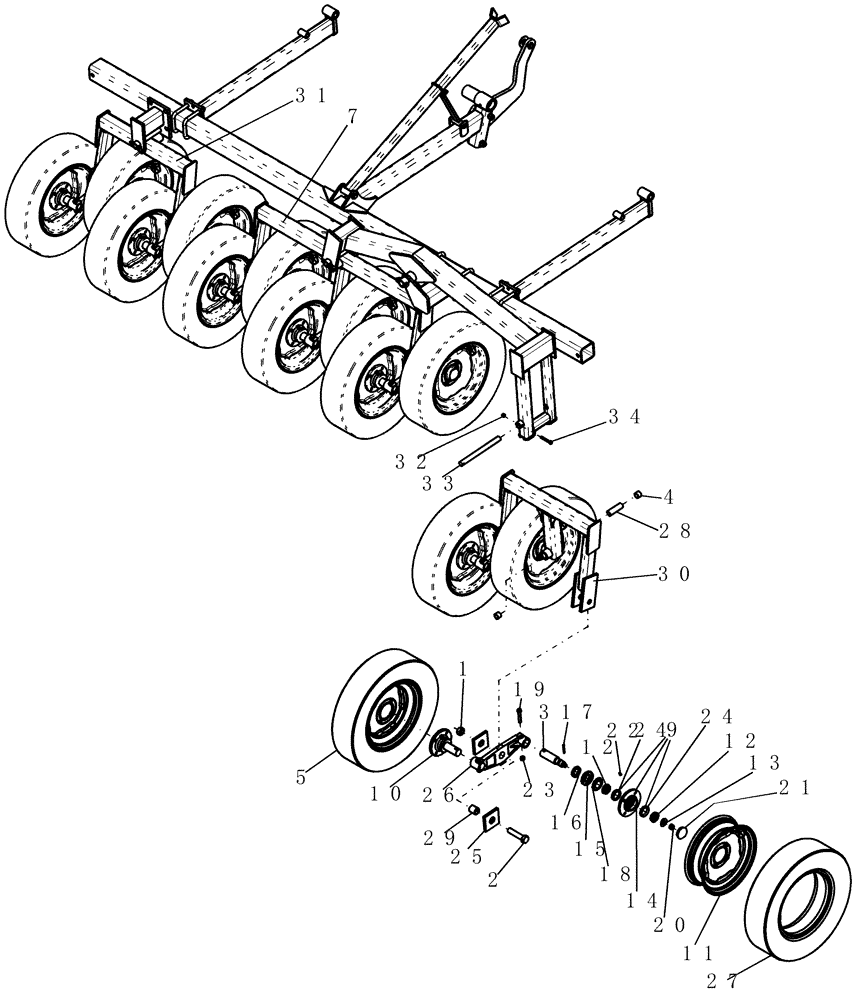

Запчасти Case IH 700 (75.200.19) - PACKER, INNER WING WALKING BEAM - 12" SPACING (75) - SOIL PREPARATION

1

280286

NUT,1"-8, GB

8шт.

2

280443

BOLT,Hex, 1" - 8 x 4 1/2", Gr 5

8шт.

3

87417575

SPINDLE

1 5/8" x 7 1/16" 12" packer wheel

16шт.

4

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

10шт.

5

290720A1

WHEEL ASSY

mounted 6.50-15 4h with seal packer tire only, titan

16шт.

Includes 1013450

1шт.

6

87564212

FRAME

12-4w w beam double

1шт.

Includes 6635, 87525921

1шт.

7

87564210

FRAME

12-6w w beam double

1шт.

Includes 6635, 87525921

1шт.

8

87564209

FRAME

12-6w w beam single

1шт.

Includes 6635, 87525921

1шт.

9

87421563

HUB

assy packer

16шт.

10

87421646

HUB

spindle assembly packer 12"

16шт.

Includes 87417575, 36726, 87421563, 87421563, 425-1310, 87421649, 87421648, 87421650, 87421650, 224066C1, 80714

1шт.

Not available as an assembly

1шт.

11

1030857

WHEEL

15 x 4.5k 4-hole with vg

16шт.

12

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

32шт.

13

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

16шт.

14

87421563

HUB

assy packer

16шт.

15

87421650

SEAL RETAINER

packer

16шт.

16

87421648

SEAL

bearing

16шт.

17

87399

COTTER PIN,1/2 x 3 Bolt

16шт.

18

87421649

SEAL

counter face packer

16шт.

19

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

16шт.

20

87446

SLOTTED NUT,5/8"-18

16шт.

21

224066C1

HUB CAP

dust 2 21/64" od

16шт.

22

87414

LUBE NIPPLE,1/4" - 28

16шт.

23

86992215

LOCK NUT,1/2"-13, GC

16шт.

24

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

32шт.

25

1026129

PAD

uhmw 3 31/32" x 3 31/32" 1 1/2" hole, white

16шт.

26

87421669

BEAM

walking packer

8шт.

Includes 87421668

1шт.

26

84370450

BEAM

Used Only On Left Packer Gang With 60ft 12" Spacing

1шт.

Includes 87421668

1шт.

27

290719A1

TYRE/TIRE

6 1/2" x 15 4 pr i-1 1400lbs @40 psi, titan

16шт.

28

84160536

SPACER

Packer Bushings

3шт.

29

87421668

BUSHING,25.4mm ID x 38.1mm OD x 44.45mm L

tension 1 1/2" x 1" x 1 3/4"

1шт.

30

84160505

FRAME

4 Wheel Packer

1шт.

Includes 6635, 87525921

1шт.

31

87564211

FRAME

12-4w w beam single

1шт.

Includes 6635, 87525921

1шт.

32

9637692

NUT,3/8"-16, GB

1шт.

32

7827

SLOTTED NUT,1"-8, G2

For Use With Slotted Nut/Cotter Pin Setup Bolster Bolts, Start Year: 01-NOV-11, Start Serial: YBS003561

1шт.

33

87529021

PIN

25 x 280 ul chrome

1шт.

33

84545563

BOLT

Threaded 1.00" X 12.00" Bolster Bolt, For Use With Slotted Nut/Cotter Pin Setup, Start Year: 01-NOV-11, Start Serial: YBS003561

1шт.

34

280188

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

1шт.

34

432-1648

COTTER PIN,1/4" x 3"

For Use With Slotted Nut/Cotter Pin Setup Bolster Bolts, Start Year: 01-NOV-11, Start Serial: YBS003561

1шт.

100

87421664

BEAM

walking packer

1шт.

Includes 87421669, 87421646, 87339, 9636698

1шт.

Not Shown

1шт.

100

84371158

BEAM

Assy, Used Only On Left Packer Gang With 60ft 12" Spacing

1шт.

Not Shown

1шт.
