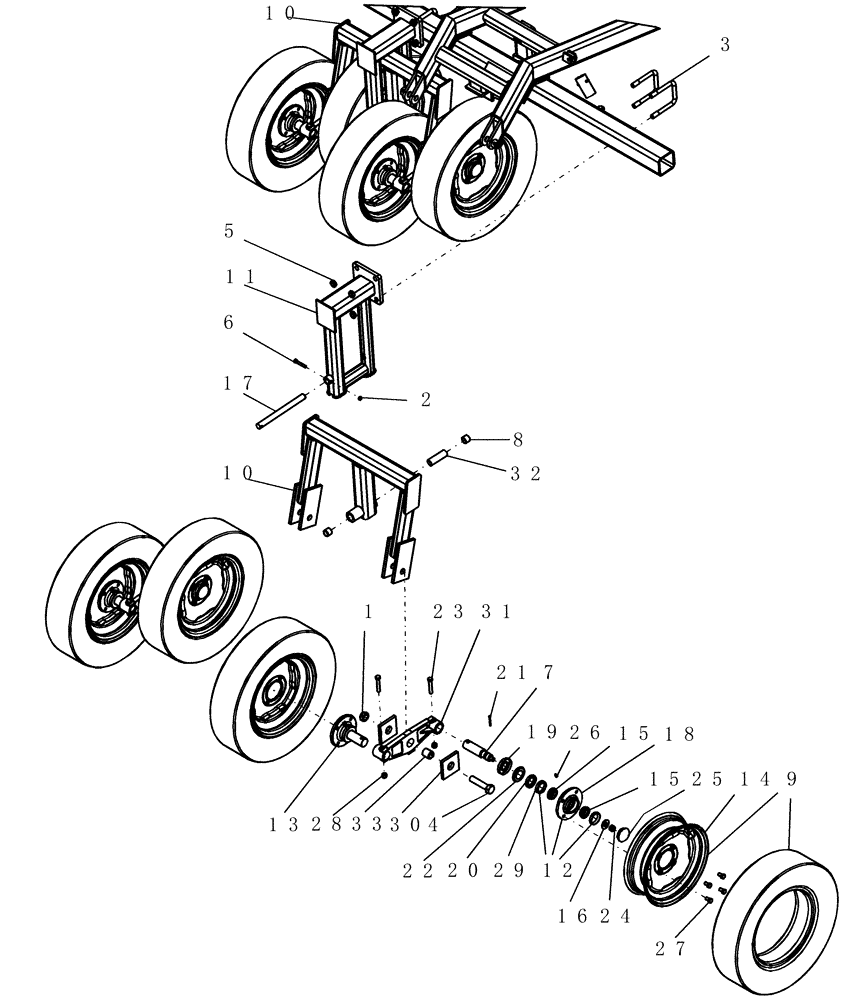

Запчасти Case IH 700 (75.200.17) - PACKER, CENTER WALKING BEAM - 12" SPACING (75) - SOIL PREPARATION

1

280286

NUT,1"-8, GB

1шт.

2

88902

NUT,3/8"-16

2шт.

2

7827

SLOTTED NUT,1"-8, G2

For Use With Slotted Nut/Cotter Pin Setup Bolster Bolts, Start Year: 01-NOV-11, Start Serial: YBS003561

1шт.

3

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

4шт.

4

280443

BOLT,Hex, 1" - 8 x 4 1/2", Gr 5

1шт.

5

230-42112

LOCK NUT,3/4"-10, GA

8шт.

6

280188

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

2шт.

6

432-1648

COTTER PIN,1/4" x 3"

For Use With Slotted Nut/Cotter Pin Setup Bolster Bolts, Start Year: 01-NOV-11, Start Serial: YBS003561

1шт.

7

87417575

SPINDLE

1 5/8" x 7 1/16" 12" packer wheel

8шт.

8

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

4шт.

9

290720A1

WHEEL ASSY

mounted 6.50-15 4h with seal packer tire only, titan

8шт.

Includes 1013450

1шт.

10

87564208

FRAME

12-4w w beam center, Years: -01-APR-09

2шт.

Includes two 87420246 and 87525921

1шт.

Note: If replacing 87564208 with 84160505, you must also replace 87564205 with 84160514 and 87564206 with 84160516

1шт.

10

84160505

FRAME

4 Wheel Packer, Start Year: 01-APR-09

2шт.

Includes two 87420246 and 84160536

1шт.

11

87564207

FRAME

4w center mount

2шт.

12

87421563

HUB

assy packer

8шт.

13

87421646

HUB

spindle assembly packer 12"

8шт.

Includes 87417575, 1622, 87421563, 425-1310, 87421649, 87421648, 87421650, 224066C1, 1298

1шт.

Not available as an assembly

1шт.

14

1030857

WHEEL

15 x 4.5k 4-hole with vg

8шт.

15

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

16шт.

16

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

8шт.

17

87529021

PIN

25 x 280 ul chrome

2шт.

17

84545563

BOLT

Threaded 1.00" X 12.00" Bolster Bolt, For Use With Slotted Nut/Cotter Pin Setup, Start Year: 01-NOV-11, Start Serial: YBS003561

1шт.

18

87421563

HUB

assy packer

8шт.

19

87421650

SEAL RETAINER

packer

8шт.

20

87421648

SEAL

bearing

8шт.

21

87399

COTTER PIN,1/2 x 3 Bolt

8шт.

22

87421649

SEAL

counter face packer

8шт.

23

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

8шт.

24

87446

SLOTTED NUT,5/8"-18

8шт.

25

224066C1

HUB CAP

dust 2 21/64" od

8шт.

26

87414

LUBE NIPPLE,1/4" - 28

8шт.

27

1013597

WHEEL BOLT

wheel 1/2" -20 G5

4шт.

28

86992215

LOCK NUT,1/2"-13, GC

8шт.

29

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

16шт.

30

1026129

PAD

uhmw 3 31/32" x 3 31/32" 1 1/2" hole, white

8шт.

31

87421669

BEAM

walking packer

4шт.

Includes 87421668

1шт.

31

84370450

BEAM

Used Only On Left Packer Gang With 60ft 12" Spacing

1шт.

Includes 87421668

1шт.

32

87525921

SPACER

packer bushing, Years: -01-APR-09

3шт.

Used with 87564208

1шт.

32

84160536

SPACER

Packer Bushings, Start Year: 01-APR-09

2шт.

Used with 84160505

1шт.

33

87421668

BUSHING,25.4mm ID x 38.1mm OD x 44.45mm L

tension 1 1/2" x 1" x 1 3/4"

1шт.

100

87421664

BEAM

walking packer

1шт.

Includes 87421669, 87421646, 87339, 9636698

1шт.

Not Shown

1шт.

100

84371158

BEAM

Assy, Used Only On Left Packer Gang With 60ft 12" Spacing

1шт.

Not Shown

1шт.
