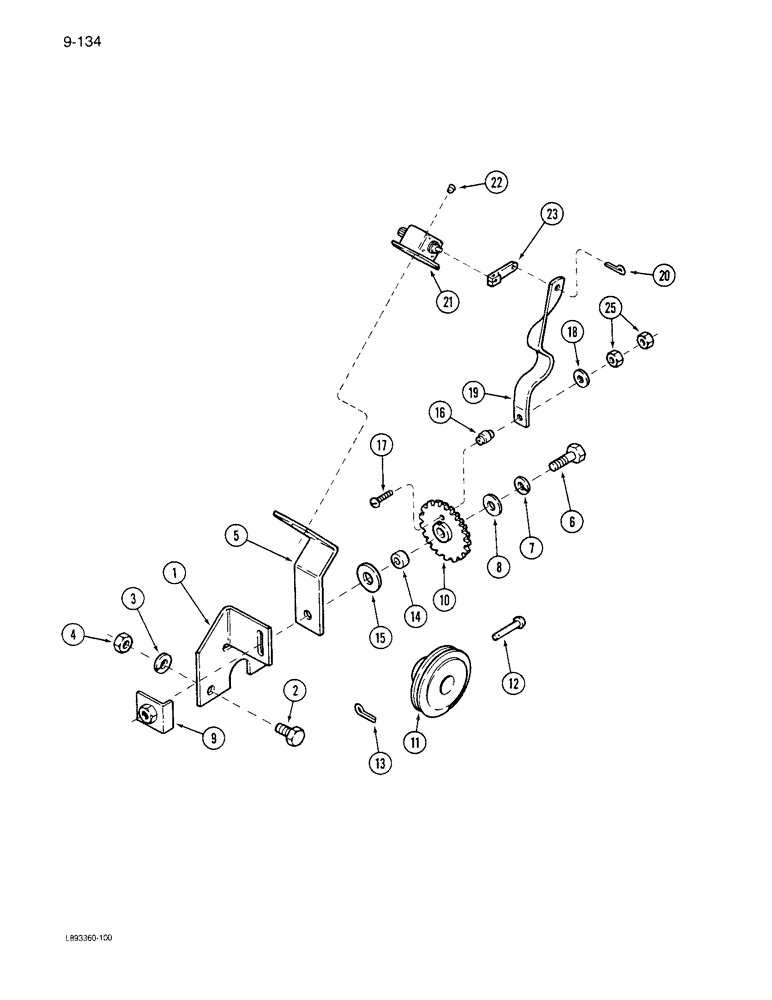

Запчасти Case IH 6300 (9-134) - COUNTER (09) - CHASSIS/ATTACHMENTS

1

818048C1

SUPPORT

- acreage counter

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

5

818047C1

SUPPORT

- counter

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

9

818045C1

SUPPORT

- counter gear

1шт.

10

815182C1

GEAR

- counter 24 tooth (28x6, 24x7)

1шт.

10

815184C1

GEAR

- counter 30 tooth (20x6)

1шт.

10

596941R1

GEAR

- counter, 28 tooth (24x6, 20x7)

1шт.

11

818050C1

GEAR

- acreage counter worm

1шт.

12

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

13

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

209381H1

SPACER

- gear

1шт.

15

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

16

609534R2

SPACER

- counter spring

1шт.

17

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

- slotted round head machine, No. 10-24 x 1-1/4 inch

1шт.

18

607893R1

WASHER

- flat, 13/64 x 1/2 x 3/64 inch

1шт.

19

598970R1

SPRING

- counter

1шт.

20

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

21

609535R91

COUNTER

ASSEMBLY - acreage

1шт.

22

145-351

RIVET,But Hd, 1/8" x 7/16"

- brass, 1/8 x 7/16 inch

4шт.

23

816878C1

ARM

- acreage counter

1шт.

25

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

2шт.
