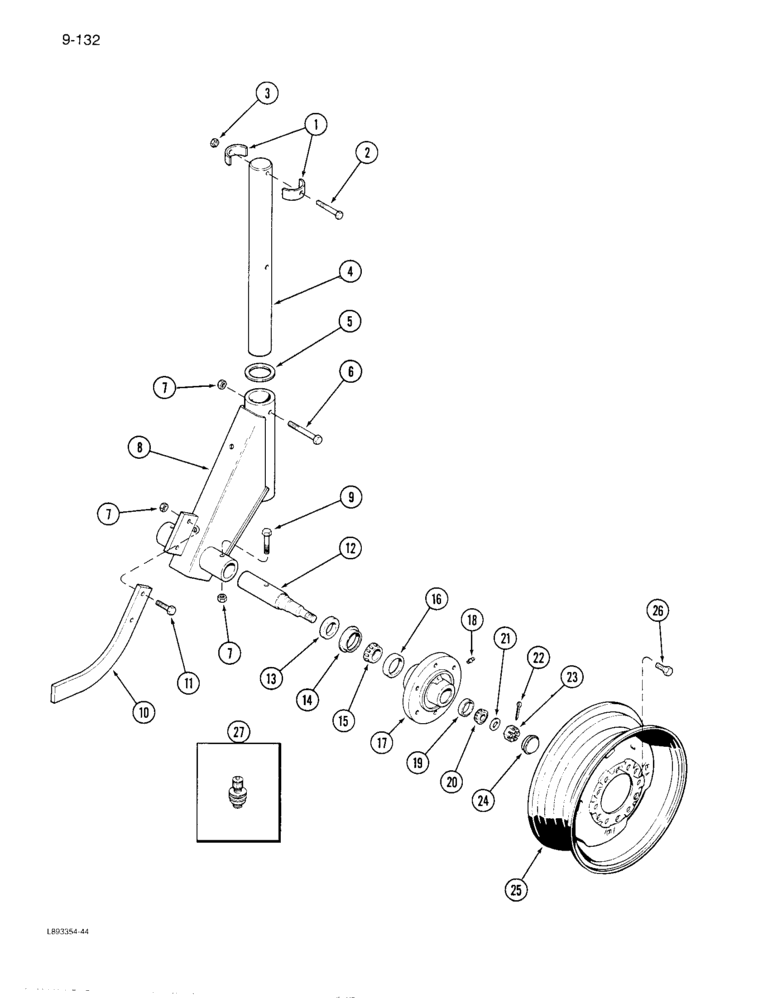

Запчасти Case IH 6300 (9-132) - CASTER WHEEL AXLE, 20 X 6, 24 X 6, 28 X 6, 20 X 7, 24 X 7 (09) - CHASSIS/ATTACHMENTS

1

819447C1

CLAMP

- shank locking

2шт.

2

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

4

1980603C1

PIN

- pivot

1шт.

5

495-81243

WASHER,2 5/16" x 3" x .120"

- flat ,2-5/16 x 3 x 1/8 inch

1шт.

6

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

7

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

7шт.

8

1980612C1

SUPPORT

ASSEMBLY - caster wheel

1шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

10

1980604C1

BAR

- rock kicker

1шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

1980605C1

AXLE

SPINDLE - wheel

2шт.

13

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- hub oil

2шт.

14

472222R1

SLEEVE

- oil seal wear

2шт.

15

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

2шт.

16

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

17

810087C2

HUB

- wheel

2шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

19

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

2шт.

19

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

20

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

21

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

2шт.

22

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

23

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - slotted hex, 3/4 inch NF

2шт.

24

B13280

HUB CAP

CAP - wheel hub

2шт.

25

481344R91

WHEEL

- 14x8 KB

2шт.

26

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

27

810768C1

VALVE

- tubeless tire steel

2шт.
