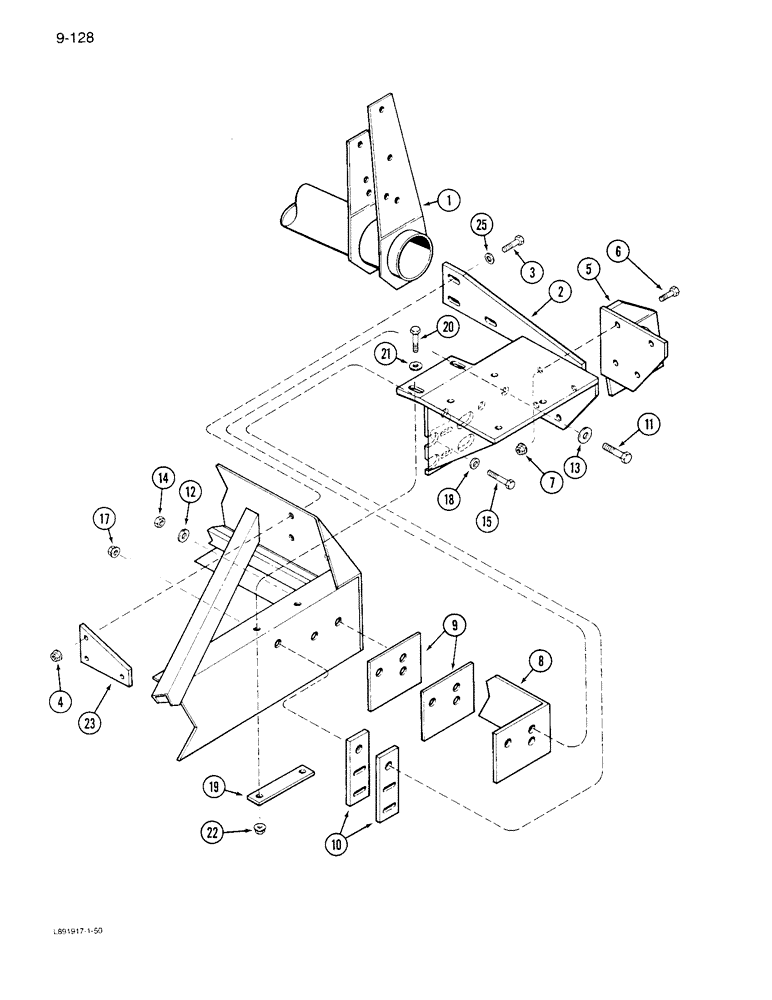

Запчасти Case IH 6300 (9-128) - HYDRAULIC FOLDING MARKER, MARKER FRAME ATTACHING PARTS ENDWISE TRANSPORT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

TUBE - hitch pivot (See Page 9-75)

2шт.

2

1279679C1

BRACKET

ASSEMBLY - left (Shown)

1шт.

2

1279680C1

BRACKET

ASSEMBLY - right

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

4

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

6шт.

5

1279726C1

BRACKET

ASSEMBLY - hitch tube

2шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

7

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

8шт.

8

819852C2

SUPPORT

- transport frame, left (Shown)

1шт.

8

819853C2

SUPPORT

- transport frame, right

1шт.

9

819753C2

BAR

PLATE - bracket spacer

2шт.

10

1279718C1

BAR

- spacer

4шт.

11

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

12

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

13

495-21081

WASHER,3/4"

- 13/16 x 2 x 1/8 inch

2шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

15

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x .095") 1/2", SAE

4шт.

19

1279675C1

BAR

- backup

4шт.

20

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

21

495-21069

WASHER,5/8"

- plain, 5/8 inch

4шт.

22

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

4шт.

23

1279677C1

PLATE

- backup

4шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x .095") 1/2", SAE

6шт.
