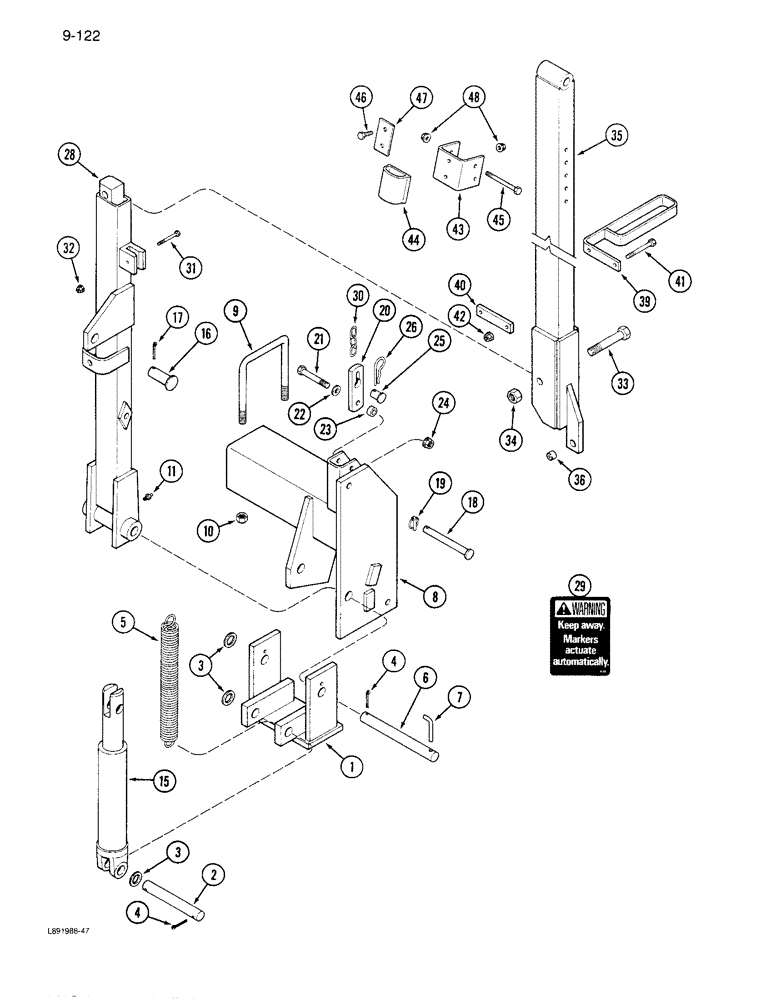

Запчасти Case IH 6300 (9-122) - DISC MARKER, FOLDING, 1279633C1 (09) - CHASSIS/ATTACHMENTS

1

1279633C1

HITCH BRACKET

BRACKET - cylinder pivot

2шт.

2

1279644C1

PIVOT PIN,25.4mm OD x 183mm L

PIN - cylinder pivot

2шт.

3

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

4

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

6шт.

5

1277583C1

COIL SPRING

SPRING - pivot arm

2шт.

6

1279638C1

PIVOT PIN,25.4mm OD x 237mm L

PIN - marker pivot

2шт.

7

471323R1

LINCH PIN

PIN - pivot lock

2шт.

8

1279624C1

HITCH BRACKET

BRACKET ASSEMBLY - pivot, left

1шт.

8

1279625C1

HITCH BRACKET

BRACKET ASSEMBLY - pivot, right (Dual markers)

1шт.

9

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- pivot bracket, 5/8 inch NC

4шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, drive type

1шт.

15

REF

INSTRUCTION

CYLINDER - marker lift (See Page 8-37)

2шт.

16

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

18

97488C1

HEADED PIN

PIN - clevis, 5/8 x 5-3/4 inch

2шт.

19

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter

2шт.

20

125789C1

BAR

- chain pivot

2шт.

21

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

23

546587R1

SPACER

- 17/32 ID x 11/32 inch long

2шт.

24

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

25

22090R1

HEADED PIN

PIN - clevis, 3/4 x 7/8 inch

4шт.

26

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

4шт.

28

1279737C92

ARM

ASSEMBLY - row marker (Includes Ref. 29) (Shown)

1шт.

28

1279738C92

ARM

ASSEMBLY - row marker

1шт.

29

REF

INSTRUCTION

DECAL - caution, marker (See Page 9-163)

1шт.

30

1279713C1

CHAIN (AG)

CHAIN - actuator, row marker (20-28 ft.)

2шт.

30

1279714C1

CHAIN (AG)

CHAIN - actuator, row marker (28-34 ft.)

2шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

10шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

33

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

34

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

35

1279722C2

SUPPORT TUBE

TUBE ASSEMBLY - long (28-34 foot) (Includes Ref. 36)

2шт.

35

1279706C2

TUBE

ASSEMBLY - short (20-28 foot)

2шт.

36

1960316C1

SHEAR BOLT BUSHING

BUSHING - marker arm

1шт.

39

90817C1

GUIDE

- actuator chain

2шт.

40

90923C1

PLATE

STRAP - chain guide

2шт.

41

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

42

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

43

1279835C1

SUPPORT

BRACKET - stop

2шт.

44

1279725C1

STOP

- rubber, marker arm

2шт.

45

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

47

1976546C1

BAR

- marker bumper backup

2шт.

48

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

8шт.
