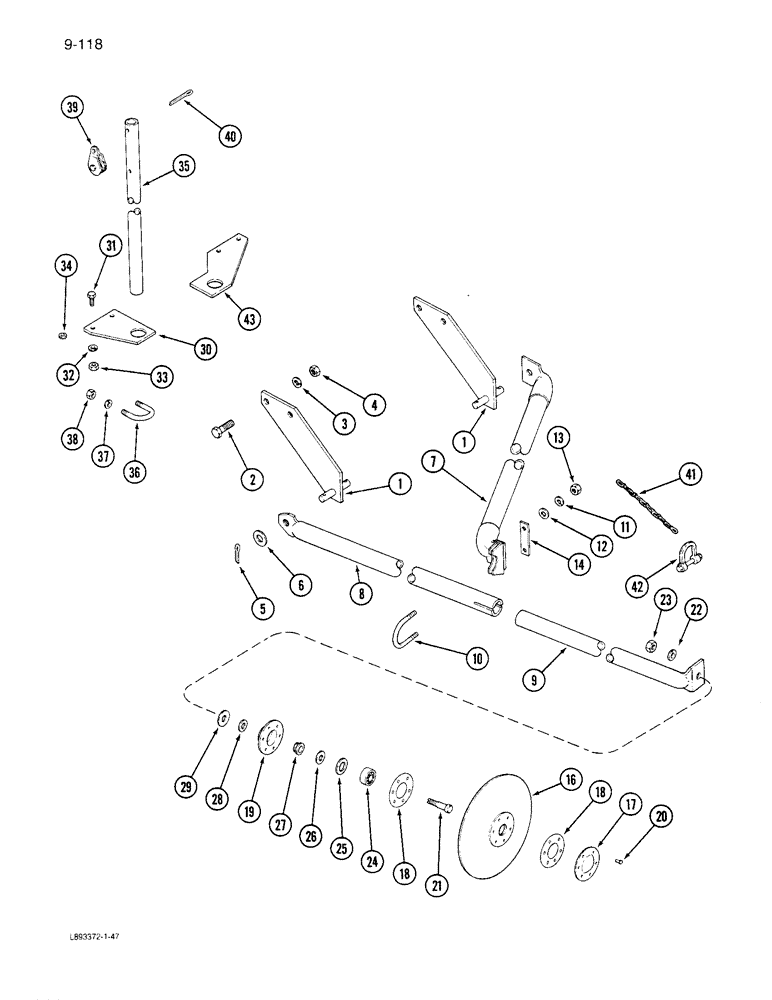

Запчасти Case IH 6300 (9-118) - DISC MARKER, MANUAL, CABLE TYPE, SINGLE DRILL (09) - CHASSIS/ATTACHMENTS

1

816472C1

PIVOT

- marker front and rear (Only one used with endwise transport)

2шт.

2

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

3

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

6

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

7

816419C1

BRACE

- marker support

1шт.

8

815742C1

TUBE,1.775" ID, 2" OD, 26, 2.5" Length

- marker disc

1шт.

9

596516R11

TUBE,1767.8, 33 mm Length

- disc telescoping

1шт.

10

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT - marker disc tube

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch

2шт.

13

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

14

816581C1

BAR

- U-bolt clamping

1шт.

815746C92

DISC

ASSEMBLY - marker

1шт.

16

603004R2

PLOW DISC

DISC - marker

1шт.

17

602990R1

CAP

- disc

1шт.

18

602992R1

GASKET

- bearing retainer

2шт.

19

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

20

990322R91

RIVET

- binding head, 1/4 x 1/2 inch (1 pound box)

1шт.

21

602987R11

BOLT

- disc

1шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

425-1110

NUT,5/8"-18, G5

1шт.

24

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- ball

1шт.

25

602994R1

FLANGE

- dirt seal

1шт.

26

464628R1

SEAL

- dirt

1шт.

27

602988R1

SPACER

- seal retainer

1шт.

28

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

29

495-81033

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

- flat, 23/32 x 1-1/2 x 7/64 inch

1шт.

30

815747C1

BAR

SUPPORT - disc marker rope mast

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

34

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

(Used with grass seed attachment) 13/32" x 7/8" x .179"

1шт.

35

815748C1

TUBE,33.4 mm OD, 980.4 mm Length

MAST - pipe, rope pulley

1шт.

36

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT - mast pipe

1шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

819043C91

PULLEY

- rope

2шт.

40

432-2448

COTTER PIN,3/8" x 3"

Pin, Split (Cotter), 3/8" x 3"

2шт.

41

NSS

NOT SOLD SEPARAT

CHAIN - marker lock-up (See Note)

1шт.

42

819167C1

SHACKLE

- chain, 1/4 inch

1шт.
