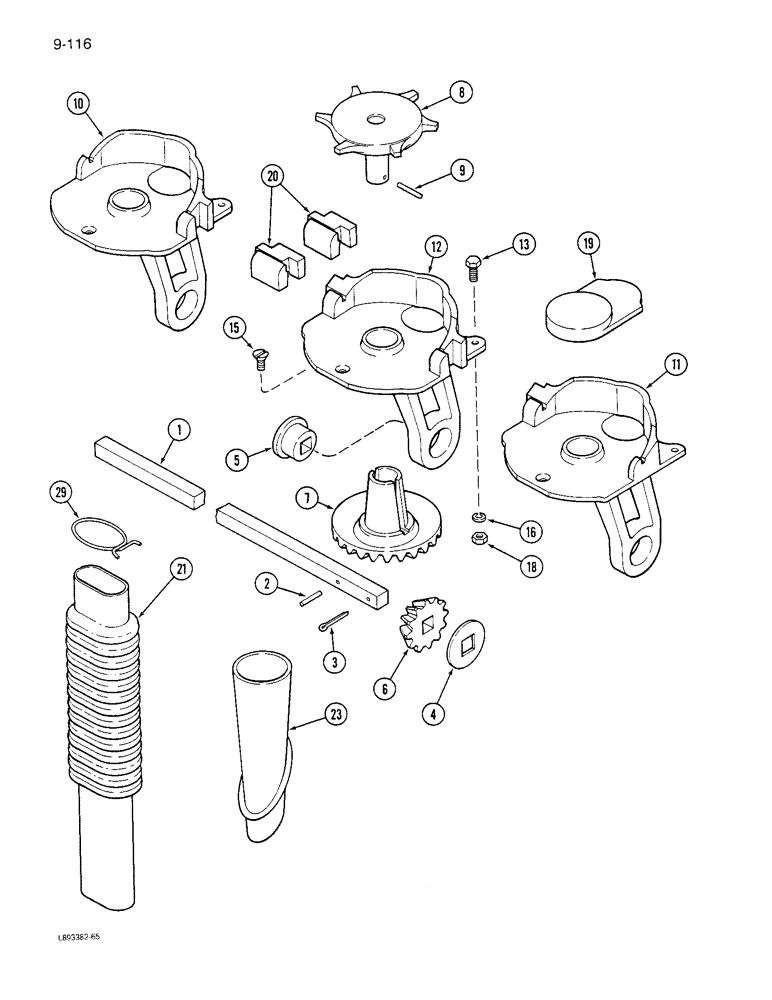

Запчасти Case IH 6300 (9-116) - FERTILIZER FEED (09) - CHASSIS/ATTACHMENTS

1

816228C1

BAR

- fertilizer feed shaft, 92-1/4 inch (16x6)

2шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 58-1/4 inch (20x6) (See Note)

2шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 68-1/4 inch (24x6, 20x7) (See Note)

2шт.

1

NSS

NOT SOLD SEPARAT

BAR - fertilizer feed shaft, 79-1/4 inch (24x7, 28x6) (See Note)

2шт.

2

112050

PIN,4.76mm OD x 22.23mm L

- square end straight, 3/16 x 7/8 inch

1шт.

3

432-1216

COTTER PIN,3/16" x 1"

1шт.

4

569875R1

SQ HOLE WASHER

- square hole, 25/32 x 1-3/4 x 3/64 inch

1шт.

5

603462R1

TRUNNION

TRUNION - bevel pinion (1 per bottom plate)

1шт.

6

603463R2

GEAR

- bevel pinion 12 tooth

1шт.

7

F282C

GEAR

- feed shaft bevel (1 per star wheel)

1шт.

8

602554R11

DRIVE SPROCKET

WHEEL ASSEMBLY - star feed (1 per feed)

1шт.

9

N62414

PIN,3.96mm OD x 28mm L

- shear

1шт.

10

603451R2

PLATE

- bottom end left (1 used 16x6; 2 used 20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

11

603452R2

PLATE

- bottom end right (1 used 16x6; 2 used 20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

12

603453R2

PLATE

- bottom intermediate (14 used 16x6; 16 used 20x6, 20x7; 20 used 24x6, 24x7; 24 used 28x6)

1шт.

13

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (2 per plate)

1шт.

15

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- slotted fillister head, 1/4 NC x 5/8 inch

1шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

19

603593R1

BLOCK

- fertilizer feed shut-off

1шт.

20

815390C1

SPACER

- bottom plate (18 used 20x6)

18шт.

20

603457R1

SPACER

- bottom plate (22 used 24x7)

22шт.

20

816229C1

SPACER

- bottom plate (18 used 20x7)

18шт.

21

819353C2

TUBE

- combined delivery fertilizer (1 per feed)

1шт.

23

607289R2

TUBE,1.25" OD, 7" Length

- separate delivery fertilizer

1шт.

29

603591R1

SPRING

- separate delivery tube upper

1шт.
