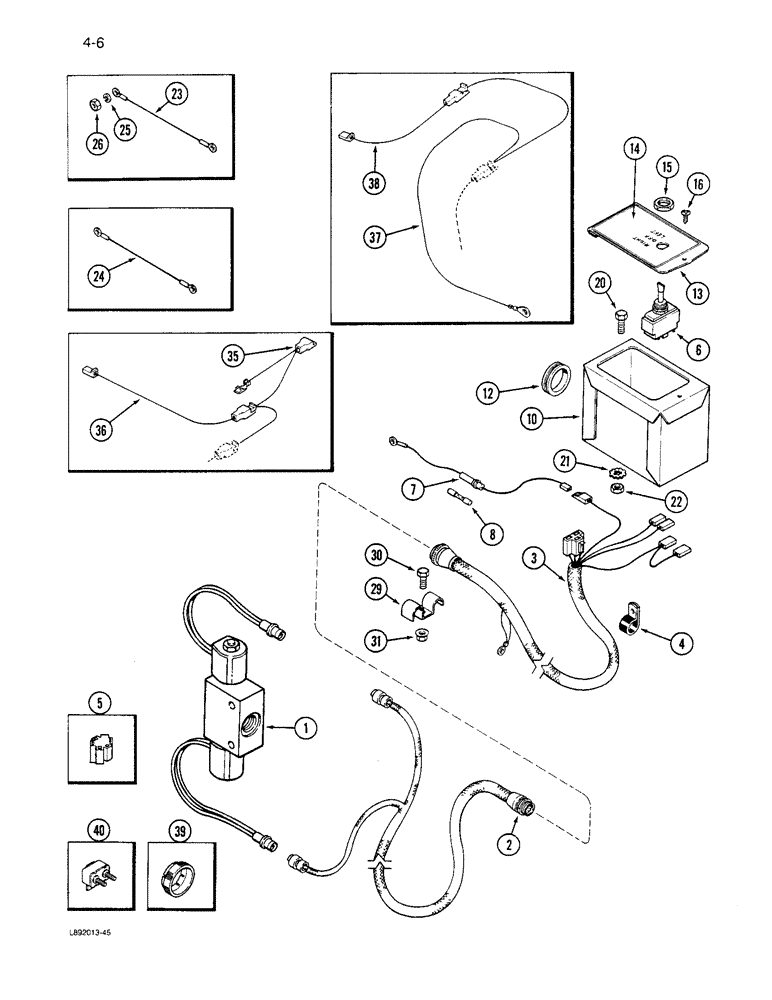

Запчасти Case IH 6300 (4-06) - MARKER CONTROL HYDRAULICS ELECTRICAL SYSTEM, ELECTRONIC SELECTOR (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See Page 4-9)

1шт.

2

145121C1

HARNESS

- control, planter

1шт.

3

141405C2

HARNESS

- control, tractor

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - hose retaining

1шт.

5

491058C1

CONTACT HOUSING,Female, Pole

ADAPTER - harness

1шт.

6

121542C1

SWITCH

- marker control

1шт.

7

149506C1

CABLE

- switch

1шт.

8

223-10

FUSE,10 Amp, Type 3AG

- 10 ampere

1шт.

10

116259C4

BOX

- control

1шт.

12

169851C1

GROMMET

BUSHING - harness control

1шт.

13

147230C1

PLATE

- control box

1шт.

14

REF

INSTRUCTION

DECAL - marker control (See Page 9-163)

1шт.

15

57603C1

NUT

- switch

1шт.

16

24374R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #8 x 3/8"

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, , Shakeproof Ext-Int Tooth, 5/16"

2шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

111322C1

CABLE

WIRE - black, 8 inch long

1шт.

24

111323C1

CABLE

WIRE - green, 8 inch long

1шт.

25

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

26

225-14210

NUT,#10-32

2шт.

29

1268187C1

WIRE CLAMP

CLAMP - wire retaining

1шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

31

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

35

A181760

CABLE

WIRE - cab connector, 2 wheel drive tractor

1шт.

36

A181761

CABLE

WIRE - marker control, 2 wheel drive tractor

1шт.

37

A181753

CABLE

WIRE - cab connector, 4 wheel drive tractor

1шт.

38

A181758

CABLE

WIRE - marker control, 4 wheel drive tractor

1шт.

39

149456C91

SET

RING - 9 pin connector (Package of 10)

1шт.

40

1264471C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.
