Запчасти Case IH 6300 (9-114) - GRAIN FEED (09) - CHASSIS/ATTACHMENTS

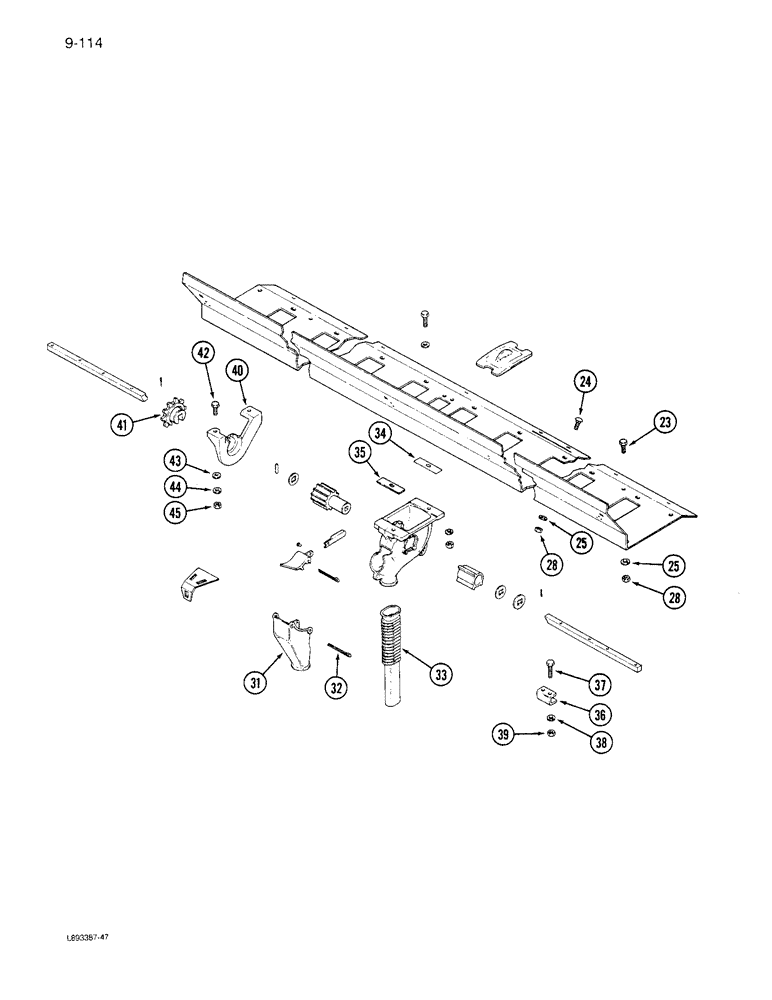

Схема запчастей Case IH 6300 - (9-114) - GRAIN FEED (09) - CHASSIS/ATTACHMENTS
42
40
41
23
34
24
32
38
33
25
36
35
25
39
43
45
37
28
44
28
31

Артикул

Название

Примечание

Количество

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

24

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

2шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

31

815804C1

CUP

- grain seed viewing

1шт.

32

32-1248

COTTER PIN,3/16" x 3"

Pin, Split (Cotter), (2 per cup) 3/16" x 3"

1шт.

33

819354C1

TUBE

- grain seed

1шт.

34

90987C1

BAR

- feed cup spacer

1шт.

35

90988C1

BAR

- feed cup spacer

1шт.

36

816133C1

CHANNEL

- feed shaft coupler (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

37

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

40

1978908C1

HANGER

- sprocket

1шт.

41

1978907C1

DRIVE SPROCKET

SPROCKET - grass seed drive, 10 tooth

1шт.

42

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

43

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 3/64 inch

1шт.

44

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

45

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

Выбрано товаров: 19
