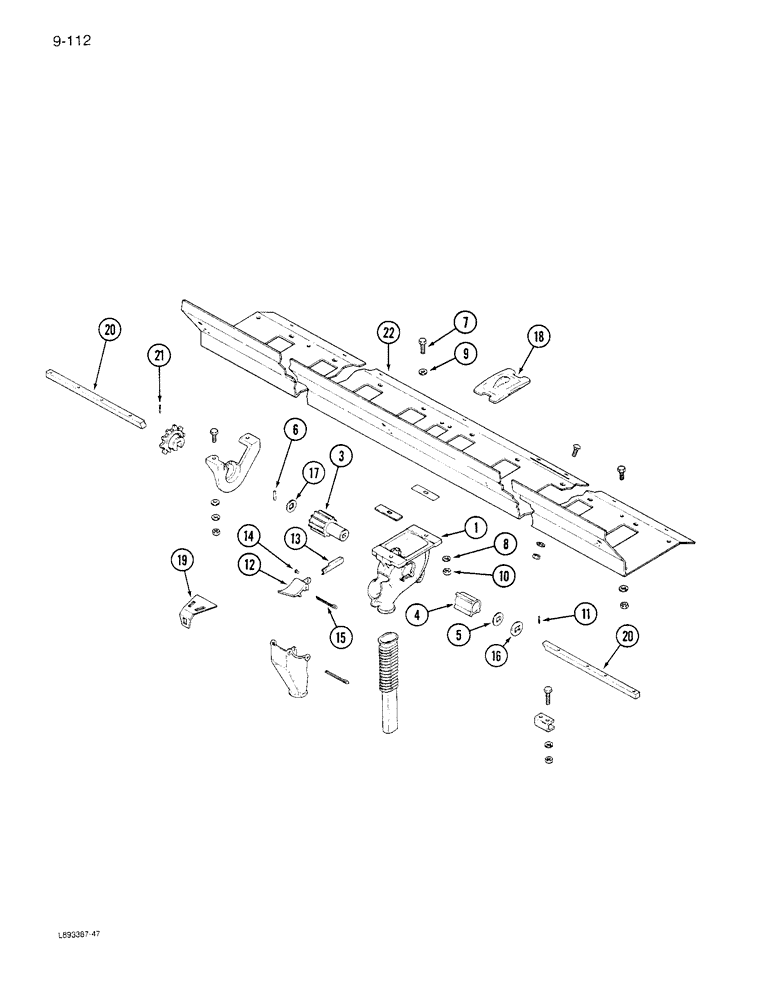

Запчасти Case IH 6300 (9-112) - GRAIN FEED, CONTINUED (09) - CHASSIS/ATTACHMENTS

603816R93

CUP

ASSEMBLY - feed

1шт.

1

NSS

NOT SOLD SEPARAT

CUP ASSEMBLY - feed

1шт.

3

603111R1

ROLLER

SHAFT - fluted roll

1шт.

4

603112R1

BLOCK

- shut off

1шт.

5

602106R1

SQ HOLE WASHER

- square hole, 21/32 x 1-11/64 x 1/64 inch

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

- roll, feed cup (2 per feed cup)

1шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (2 per feed cup)

1шт.

11

432-1216

COTTER PIN,3/16" x 1"

1шт.

12

603108R21

BOTTOM

ASSEMBLY - feed cup dump (1 per feed cup)

1шт.

13

603178R1

LATCH

- dump bottom

1шт.

14

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

15

17083R1

COTTER PIN,3/16" x 3"

(1 per bottom) 3/16" x 3"

1шт.

16

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch (1 per feed cup)

1шт.

17

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

- feed cup spring

1шт.

18

818335C1

COVER ASSY

COVER ASSEMBLY - grain feed

1шт.

19

606034R1

GUARD

PLATE - grain feed

1шт.

20

816124C2

BAR

- feed shaft (16x6)

1шт.

20

816125C2

BAR

- feed shaft left (20x6)

1шт.

20

816126C2

BAR

- feed shaft right (20x6)

1шт.

20

816127C3

BAR

- feed shaft left (24x6)

1шт.

20

816128C2

BAR

- feed shaft right (24x6)

1шт.

20

816896C2

BAR

- feed shaft left (28x6)

1шт.

20

816127C3

BAR

- feed shaft left (24x6)

1шт.

20

816129C2

BAR

- feed shaft left (20x7)

1шт.

20

816130C2

BAR

- feed shaft right (20x7)

1шт.

20

816131C2

BAR

- feed shaft left (24x7)

1шт.

20

816132C2

BAR

- feed shaft right (24x7)

1шт.

21

432-1216

COTTER PIN,3/16" x 1"

(1 per feed cup) 3/16" x 1"

1шт.

22

818358C1

ASSEMBLY

SECTION - grain bottom partition (16x6)

1шт.

22

818359C1

ASSEMBLY

SECTION - grain bottom partition (20x6)

1шт.

22

818360C1

CUTTER BAR

SECTION - grain bottom partition (24x6)

1шт.

22

818361C1

ASSEMBLY

SECTION - grain bottom partition (28x6)

1шт.

22

818363C1

ASSEMBLY

SECTION - grain bottom partition (20x7)

1шт.

22

818364C1

ASSEMBLY

SECTION - grain bottom partition (24x7)

1шт.
