Запчасти Case IH 6300 (9-110) - FERTILIZER DRIVE (09) - CHASSIS/ATTACHMENTS

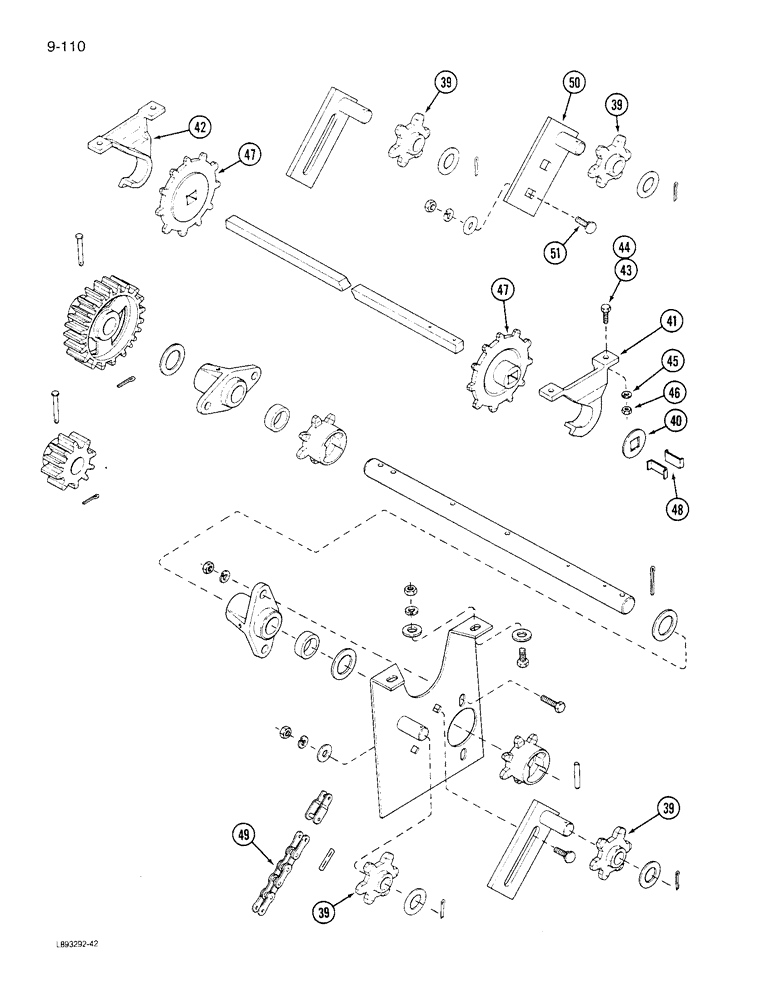

Схема запчастей Case IH 6300 - (9-110) - FERTILIZER DRIVE (09) - CHASSIS/ATTACHMENTS
39
43
49
39
39
44
41
47
48
45
42
51
40
39
50
46
47

Артикул

Название

Примечание

Количество

39

819457C1

SPROCKET

- main drive idler 6 tooth (16x6)

2шт.

39

819457C1

SPROCKET

- main drive idler 6 tooth (20x6, 24x6, 28x6, 20x7, 24x7)

4шт.

40

569875R1

SQ HOLE WASHER

- square hole, 25/32 x 1-3/4 x 3/64 inch

1шт.

41

816277C1

HANGER

- fertilizer drive sprocket right (16x6, 20x7, 24x7)

1шт.

41

816277C1

HANGER

- fertilizer drive sprocket right (20x6, 24x6, 28x6)

2шт.

42

816276C1

HANGER

- feertilizer driven sprocket left

1шт.

43

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

44

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

46

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

47

816278C1

SPROCKET ASSY.

SPROCKET - fertilizer driven 11 tooth (16x6)

1шт.

47

816278C1

SPROCKET ASSY.

SPROCKET - fertilizer driven 11 tooth (20x6, 24x6, 28x6, 20x7 24x7)

2шт.

48

816279C1

CLIP

- sprocket retaining

1шт.

49

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - fertilizer drive (See Note)

1шт.

50

816786C1

BRACKET

- fertilizer drive chain idler

1шт.

51

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

2шт.

Выбрано товаров: 16
