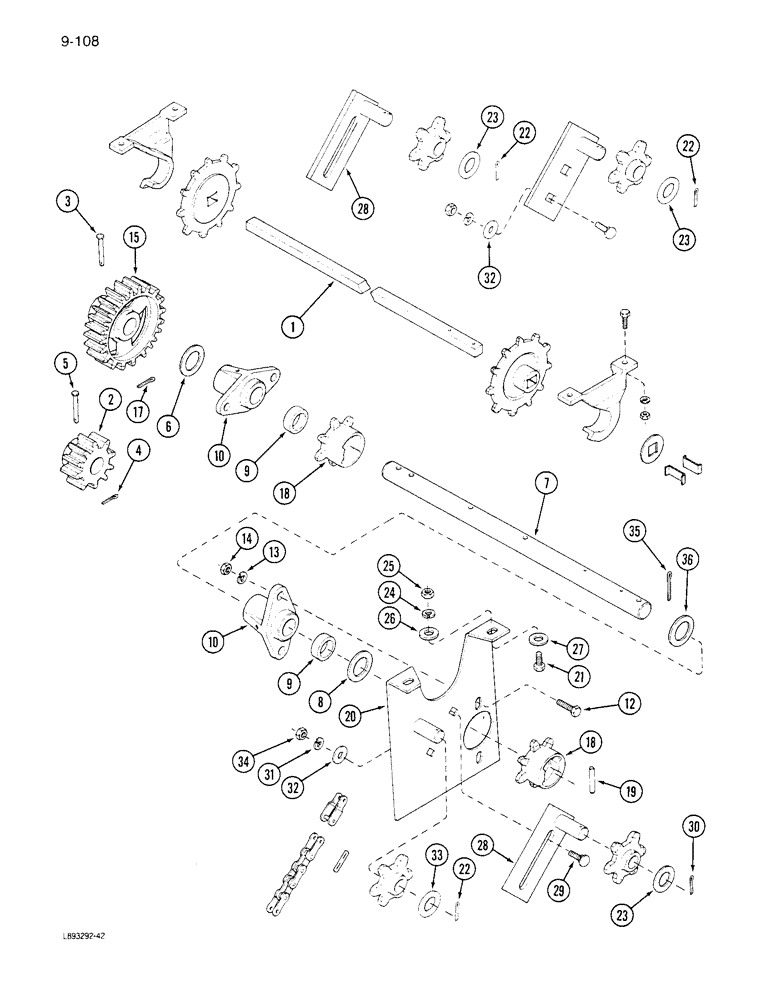

Запчасти Case IH 6300 (9-108) - FERTILIZER DRIVE, CONTINUED (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BAR - fertilizer feed shaft (See Page 9-117)

1шт.

2

816268C1

GEAR

- fertilizer drive 12 tooth

1шт.

3

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

4

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

5

28782R1

HEADED PIN,3/8" x 1 7/8"

PIN - headed, 3/8 x 1-7/8 inch

1шт.

6

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

7

816269C2

SHAFT

ROD - fertilizer drive (16x6)

1шт.

7

816270C2

SHAFT

ROD - fertilizer drive (24x6, 28x6, and 20x7)

1шт.

7

816271C2

SHAFT

ROD - fertilizer drive (20x6, 24x7)

1шт.

8

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32" (1 used 20x6, 24x6, 24x7, 28x6; 3 used 20x7)

1шт.

9

M73125

SPACER,1" Pipe x 3/8"

- sprocket (16x6, 20x7)

1шт.

9

M73125

SPACER,1" Pipe x 3/8"

- sprocket (20x6, 24x6, 24x7, 28x6)

2шт.

10

603121R1

HUB CAP

BEARING - fertilizer drive shaft

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

816272C1

GEAR

- fertilizer drive shaft 24 tooth

1шт.

16

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

17

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

18

816793C1

SPROCKET ASSY.

SPROCKET - fertilizer drive 7 tooth (16x6)

1шт.

18

816793C1

SPROCKET ASSY.

SPROCKET - fertilizer drive 7 tooth (20x6, 24x6, 28x6, 20x7, 24x7)

2шт.

19

103774

PIN,3/8" x 1 5/8"

- straight, 3/8 x 1-5/8 inch

1шт.

20

816274C2

SUPPORT

- fertilizer drive (20x6, 24x6, 20x7, 24x7, 28x6)

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(20x6, 24x6, 20x7, 28x6, 24x7) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

22

432-1216

COTTER PIN,3/16" x 1"

1шт.

23

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

26

495-81137

WASHER,13/32" x 1" x .224"

- flat, 13/32 x 1 x 15/64 inch

1шт.

27

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

28

816040C2

BRACKET

- grain drive tightener (16x6)

1шт.

28

816040C2

BRACKET

- grain drive tightener (20x6, 24x6, 28x6, 20x7, 24x7)

2шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

30

432-1216

COTTER PIN,3/16" x 1"

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

33

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), (20x6, 24x6, 20x7, 24x7, 28x6) 1/8" x 1 3/4"

1шт.

36

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.
