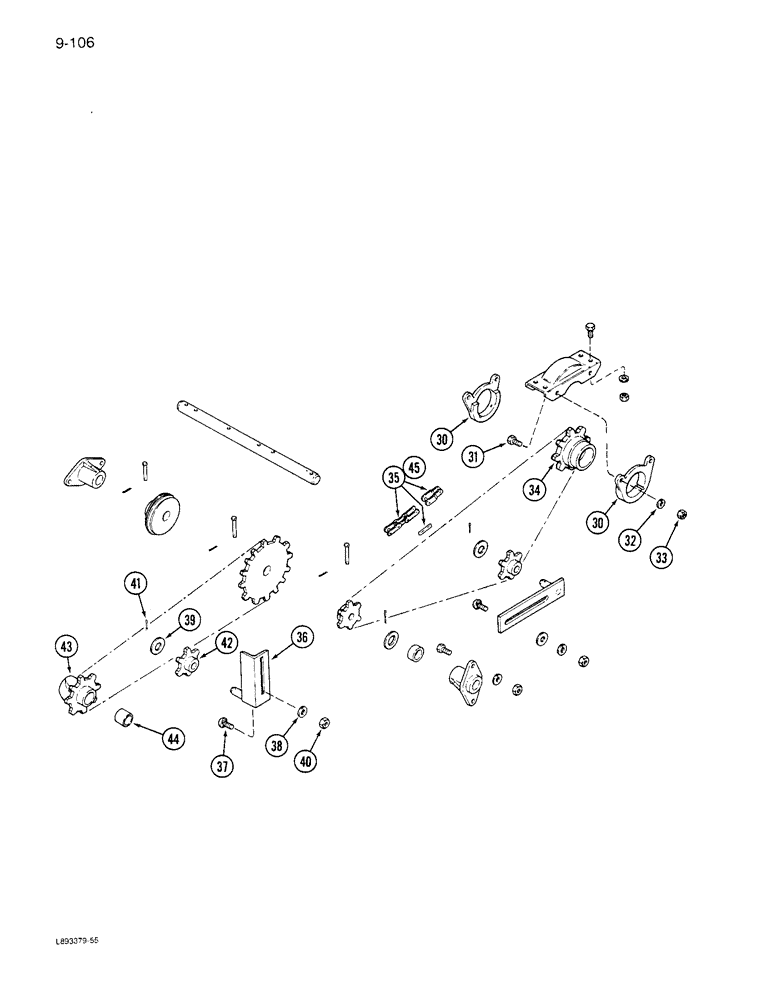

Запчасти Case IH 6300 (9-106) - GRAIN DRIVE (09) - CHASSIS/ATTACHMENTS

30

817458C1

HANGER

- grain feedshaft drive sprocket

2шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

34

817457C1

SPROCKET

- grain feedshaft drive 9 tooth

1шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain feedshaft drive (Regular and fast speed) (See Note A)

1шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain feedshaft drive (Slow speed) (See Note B)

1шт.

36

816036C1

BRACKET

- grain countershaft drive idler

1шт.

37

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

432-1216

COTTER PIN,3/16" x 1"

1шт.

42

819457C1

SPROCKET

- grain countershaft drive idler 6 tooth

1шт.

43

816033C11

DRIVE SPROCKET

SPROCKET ASSEMBLY - grain drive clutch

1шт.

44

289587R1

BUSHING

- clutch sprocket

1шт.

45

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain countershaft drive (See Note C)

1шт.
