Запчасти Case IH 6300 (9-104) - GRAIN DRIVE, CONTINUED (09) - CHASSIS/ATTACHMENTS

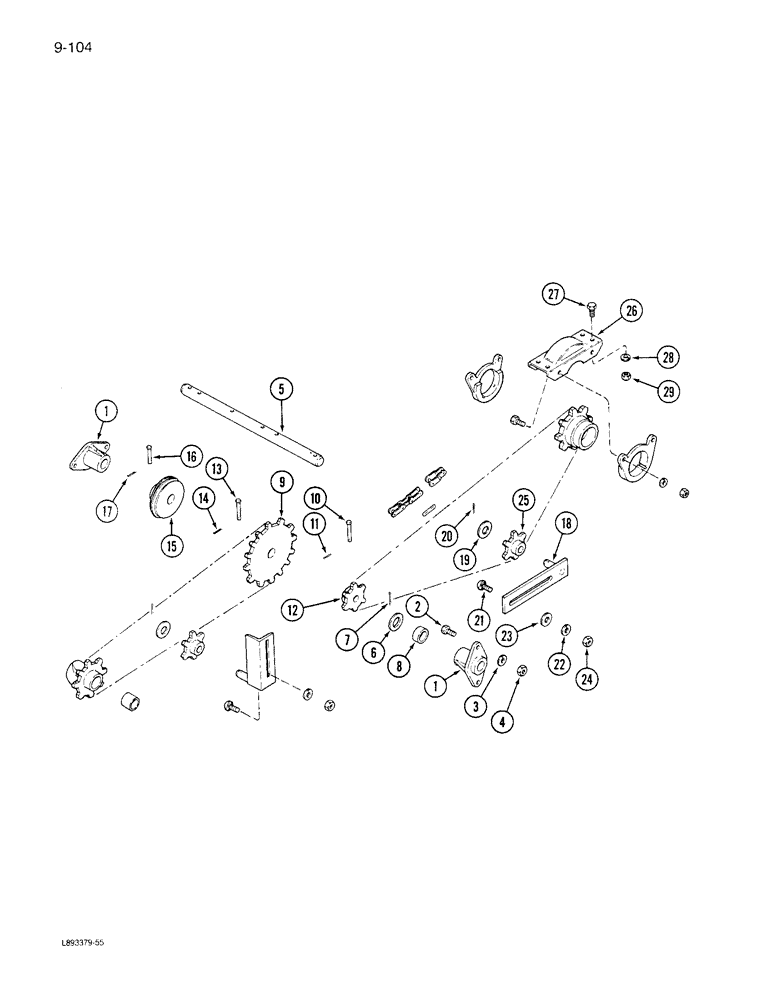

Схема запчастей Case IH 6300 - (9-104) - GRAIN DRIVE, CONTINUED (09) - CHASSIS/ATTACHMENTS
5
2
28
29
10
12
11
1
9
18
25
4
19
22
17
26
24
8
27
16
6
21
14
23
3
15
7
20
1
13

Артикул

Название

Примечание

Количество

1

603121R1

HUB CAP

BEARING - grain drive countershaft

2шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

816034C2

SHAFT

- grain drive counter

1шт.

6

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-5/16 x 1-3/4 x 35/64 inch

1шт.

7

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

8

M73125

SPACER,1" Pipe x 3/8"

- sprocket

1шт.

9

816035C1

SPROCKET ASSY.

SPROCKET - grain countershaft driven 14 tooth

1шт.

10

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

11

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

12

816035C1

SPROCKET ASSY.

SPROCKET - grain countershaft driver 14 tooth (fast speed)

1шт.

12

816273C1

SPROCKET ASSY.

SPROCKET - grain countershaft driver 7 tooth (regular speed)

1шт.

12

816273C1

SPROCKET ASSY.

SPROCKET - grain drive 7 tooth (slow speed)

1шт.

13

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

14

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

15

818050C1

GEAR

- acreage counter worm

1шт.

16

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

17

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

18

816040C2

BRACKET

- grain drive tightener

1шт.

19

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head aquare neck, 3/8 x 1 inch

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

819457C1

SPROCKET

- chain tightener 6 tooth

1шт.

26

817459C1

CAP

- grain feedshaft drive sprocket

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

Выбрано товаров: 31
