Запчасти Case IH 6300 (9-100) - DOUBLE DISC FURROW OPENER (09) - CHASSIS/ATTACHMENTS

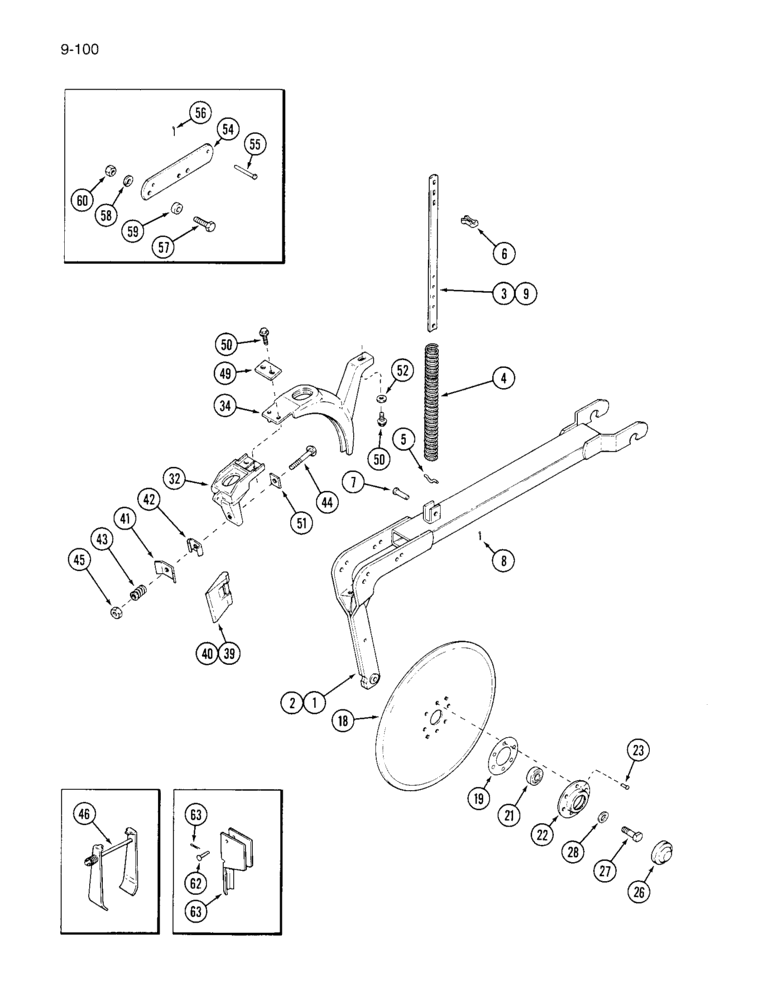

Схема запчастей Case IH 6300 - (9-100) - DOUBLE DISC FURROW OPENER (09) - CHASSIS/ATTACHMENTS
44
60
42
9
6
27
56
52
34
1
40
3
26
46
63
41
62
2
7
21
55
63
50
58
18
22
43
5
57
59
49
39
8
50
19
45
51
23
54
4
28
32

Артикул

Название

Примечание

Количество

1

1334029C1

DRAWBAR

- furrow opener, rear

1шт.

2

1337102C1

DRAWBAR

- furrow opener, front

1шт.

3

1333957C1

BAR

- pressure spring, rear

1шт.

4

1333758C1

SPRING

- pressure

1шт.

4

N42899

SPRING

- pressure (For light duty applications)

1шт.

5

1337321C1

CLIP

LOCK - pressure spring

1шт.

6

605964R1

CLIP

CLIP - spring bar attaching

2шт.

7

22900R1

HEADED PIN

PIN - headed, 3/8 x 1-1/4 inch

1шт.

8

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

1333956C1

BAR

- pressure spring, front

1шт.

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL

2шт.

ref #9 (P/N 603020R92) - REMOVE PART - TS 103-90

1шт.

1344911C2

DISK DRILL

DISC ASSEMBLY - furrow opener

2шт.

18

NSS

NOT SOLD SEPARAT

DISC - furrow opener

2шт.

19

1344952C1

GASKET

- bearing retainer

1шт.

21

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

21

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

22

149170C2

FLANGED BEARING

- bearing

1шт.

23

28755R1

RIVET,FH, 1/4" x 9/16"

- flat head, 1/4 x 9/16 inch

6шт.

26

492709R1

CAP

- dust, bearing

2шт.

27

1978957C1

BOLT,Hex, 5/8" - 11 x 1-1/4", LH Thd, Gr 5

- disk retaining, left

1шт.

27

1978956C1

BOLT,Hex, 5/8" - 11 RH x 1 1/4", Gr 5

- disk retaining, right (Shown)

1шт.

28

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

- retaining

2шт.

32

842894C1

BOOT

- disc

1шт.

34

1279970C1

BOOT

- double disc

1шт.

843364C91

BLADE

SCRAPER ASSEMBLY - disc

1шт.

39

NSS

NOT SOLD SEPARAT

SCRAPER - disc, right

1шт.

40

NSS

NOT SOLD SEPARAT

SCRAPER - disc, left

1шт.

41

816668C1

LEDGER PLATE

SPREADER - scraper

1шт.

42

819808C1

HINGE

- scraper

1шт.

43

N62536

VALVE SPRING

SPRING - scraper

1шт.

44

433-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 2-3/4 inch

1шт.

45

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

46

819373C1

PACKAGE

BLADE ASSEMBLY - disc

1шт.

49

88893C1

PLATE

- boot backup

1шт.

50

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

BOLT - hex washer head, 5/16 NC x 1 inch

3шт.

51

97756C1

BACK PLATE

PLATE - backup, scraper

1шт.

52

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

1шт.

54

1973197C1

BAR

- pivot rod mounting

1шт.

55

27874R1

HEADED PIN,3/8" x 3"

PIN - 3/8 x 3 inch

1шт.

56

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

57

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

58

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

59

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- 1/2 x 3/8 inch

2шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

61

819208C1

DEFLECTOR

- fertilizer (If equipped)

1шт.

62

21886R1

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch (If equipped)

1шт.

63

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , If equipped 1/8" x 1"

1шт.

Выбрано товаров: 48
