Запчасти Case IH 6300 (9-096) - GRAIN FEED INDICATOR AND SHIFTER (09) - CHASSIS/ATTACHMENTS

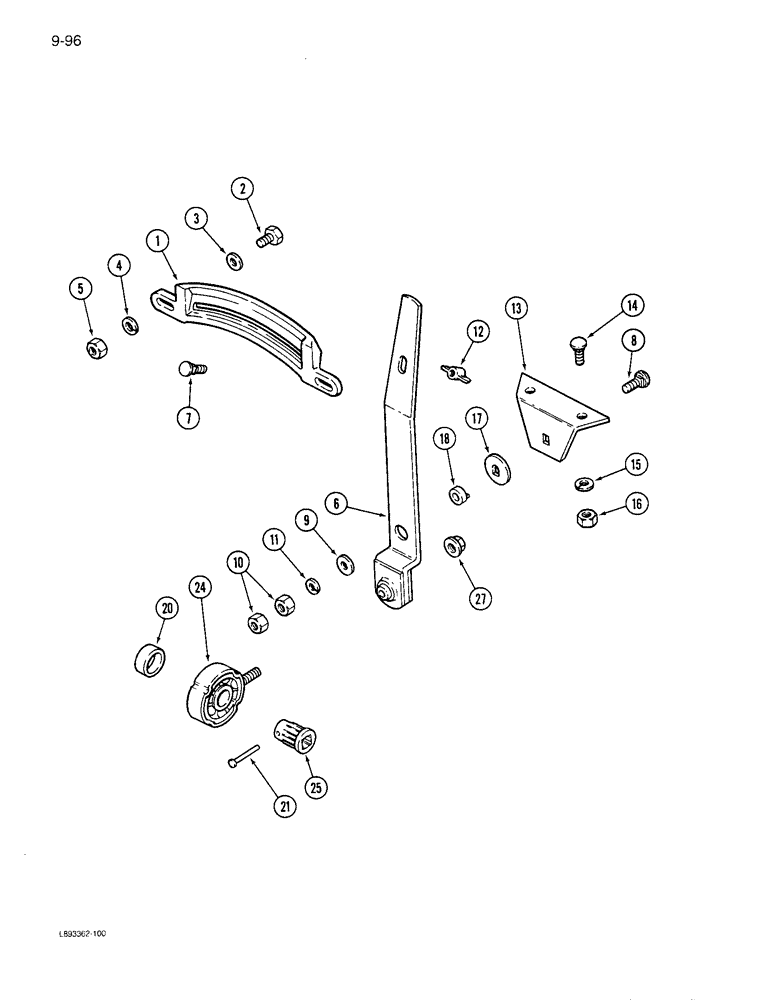

Схема запчастей Case IH 6300 - (9-096) - GRAIN FEED INDICATOR AND SHIFTER (09) - CHASSIS/ATTACHMENTS
21
10
20
27
9
12
2
18
16
4
1
14
7
15
17
24
8
25
13
11
6
3
5

Артикул

Название

Примечание

Количество

1

603127R1

INDICATOR

- grain feed

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

3

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

815179C1

LEVER

- grain feed shifter

1шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 x 1 inch

1шт.

9

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

1шт.

10

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC

2шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

7500032

BUSHING

NUT - wing, 5/16 inch NC

1шт.

13

819361C1

BRACKET

SUPPORT - shifter lever

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

819263C1

WASHER

- shifter stop

1шт.

18

819264C1

BUSHING

- shifter stop

1шт.

20

609389R1

SPACER

- nylon, shifter

1шт.

1279109C91

BEARING ASSY

ASSEMBLY - feed shifter

1шт.

21

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

24

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING - feed shifter

1шт.

25

1279145C1

SPACER

- shifter bearing

1шт.

27

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

Выбрано товаров: 24
