Запчасти Case IH 6300 (9-094) - MAIN DRIVE SHIELD (09) - CHASSIS/ATTACHMENTS

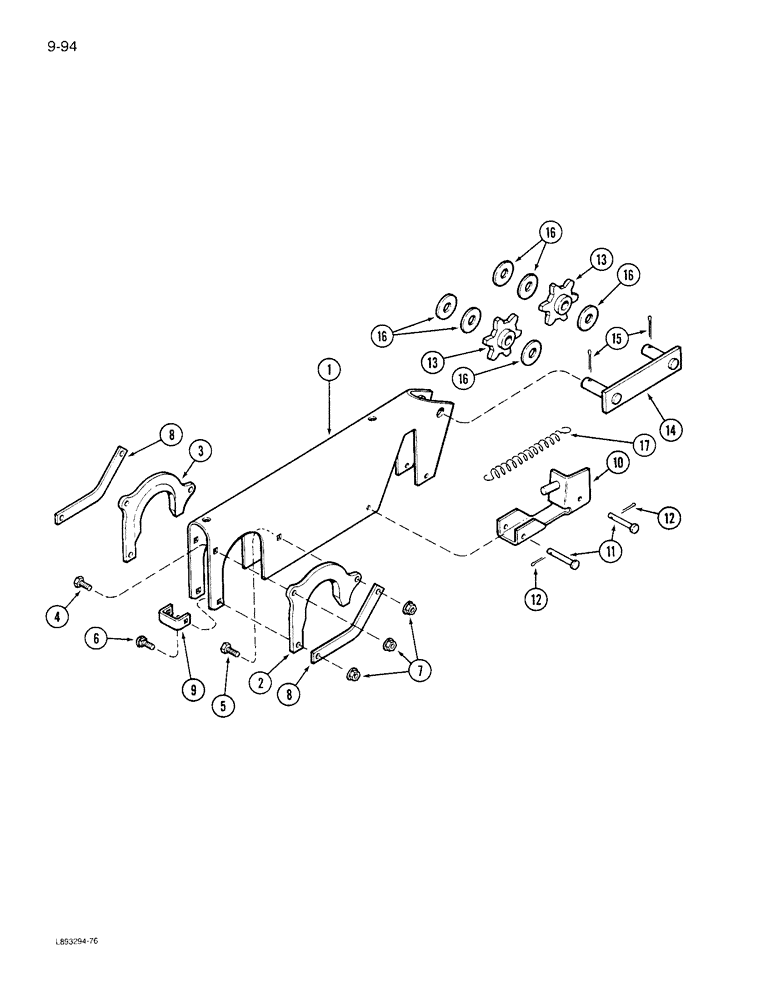

Схема запчастей Case IH 6300 - (9-094) - MAIN DRIVE SHIELD (09) - CHASSIS/ATTACHMENTS
16
12
13
6
14
8
5
7
8
1
11
15
16
13
10
12
16
17
9
3
4
16
2

Артикул

Название

Примечание

Количество

1

819459C1

SHIELD

- main drive chain

1шт.

2

601225R1

SHIELD

BEARING - shield, right

1шт.

3

601226R1

SHIELD

BEARING - shield, left

1шт.

4

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

6

412-514

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT - round head square neck, 5/16 x 7/8 inch

2шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

8

605979R1

BRACE

STRAP - bearing

2шт.

9

601241R1

CHANNEL

CLIP - shield rear tie

1шт.

10

816617C1

SUPPORT

- chain shield

1шт.

11

24812R1

HEADED PIN,1/4" x 2"

PIN, HEADED, 1/4" x 2"

2шт.

12

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

13

819457C1

SPROCKET

- main drive idler 6 tooth

2шт.

14

819455C1

BRACKET

- chain tightener

1шт.

15

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

16

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

6шт.

17

626206R1

SPRING

- tightener rod

1шт.

Выбрано товаров: 17
