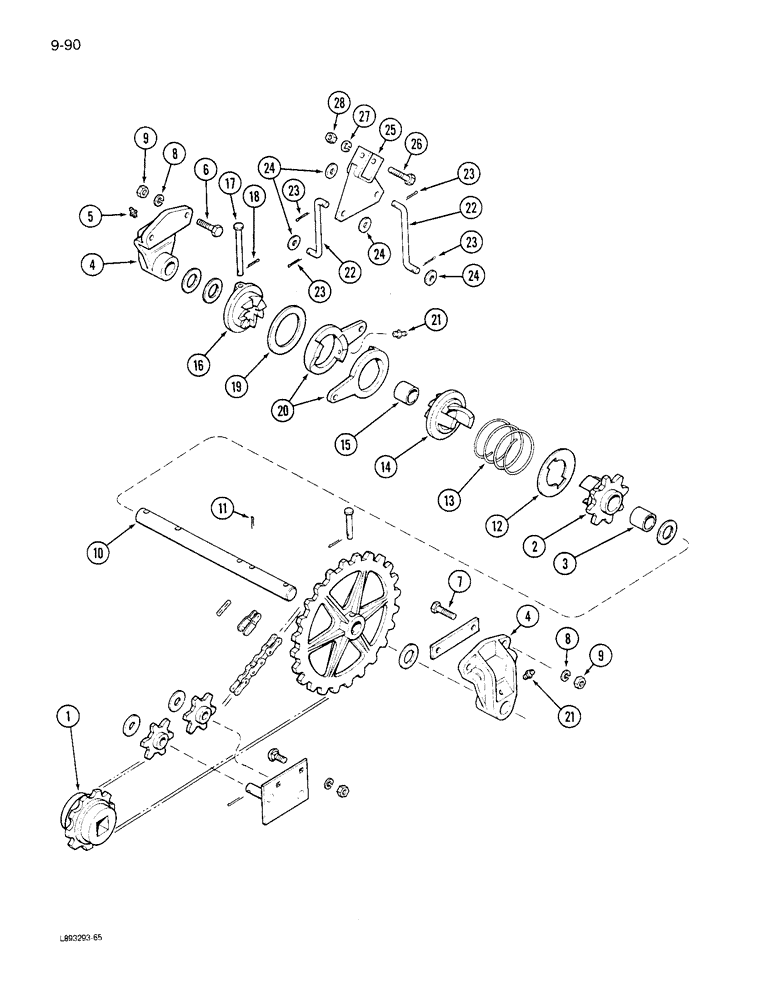

Запчасти Case IH 6300 (9-090) - MAIN DRIVE, CONTINUED (09) - CHASSIS/ATTACHMENTS

1

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

2

816033C11

DRIVE SPROCKET

SPROCKET ASSEMBLY - grain drive clutch

1шт.

3

289587R1

BUSHING

- clutch sprocket

1шт.

4

816021C1

COUNTERSHAFT

BEARING - main drive countershaft (16x6)

3шт.

4

816021C1

COUNTERSHAFT

BEARING - main drive countershaft (20x6, 24x6, 28x6, 20x7 and 24x7)

2шт.

5

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 1/8 inch NPT (1 used per bearing)

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

816024C1

SHAFT

- main drive counter (16x6)

1шт.

10

816023C1

SHAFT

- main drive counter (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

11

432-1224

COTTER PIN,3/16" x 1-1/2"

(16x6) 3/16" x 1 1/2"

2шт.

12

816025C1

WASHER

- clutch

1шт.

13

816026C1

SPRING

- clutch

1шт.

14

816027C11

CLUTCH

ASSEMBLY - driver

1шт.

15

298401R1

BUSHING

- driver clutch

1шт.

16

816028C1

CLUTCH

- driver

1шт.

17

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN - headed, 3/8 x 3-3/4 inch

1шт.

18

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

19

816029C1

WASHER,60.45mm ID x 86.36mm OD x 1.9mm Thk

- main drive clutch

1шт.

20

816030C1

CAM

- throwout

2шт.

21

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, 1/8 inch straight

1шт.

22

816031C1

ROD

- clutch lift arm

2шт.

23

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

24

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

25

816032C1

ARM

- clutch lift

1шт.

26

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.
