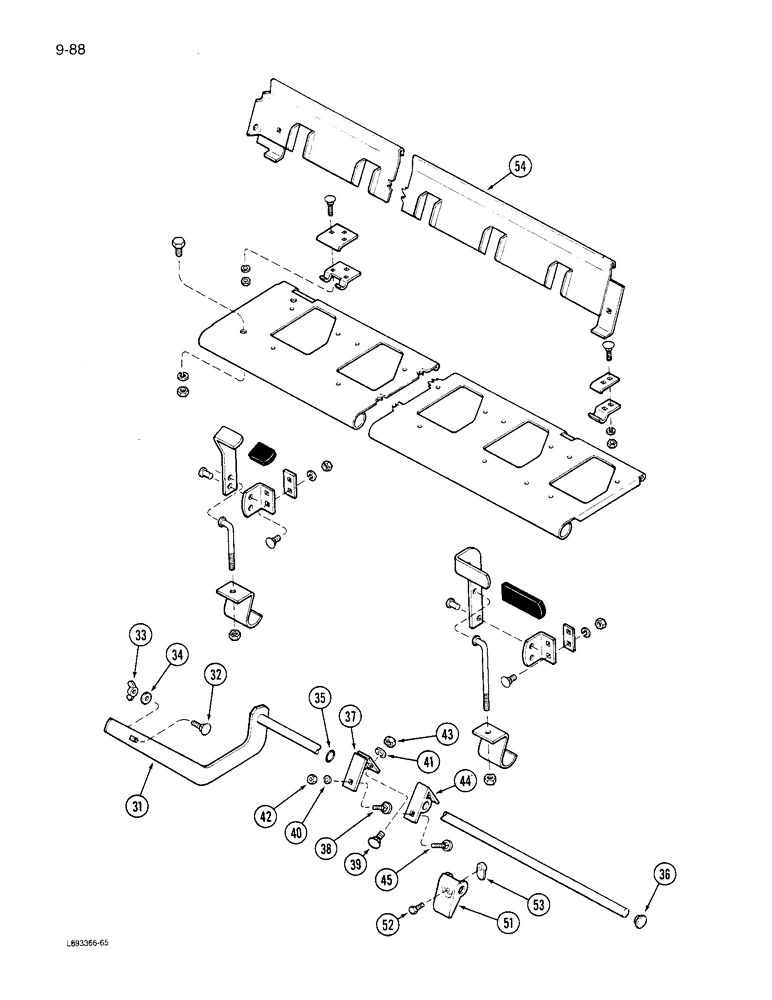

Запчасти Case IH 6300 (9-088) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS

31

NSS

NOT SOLD SEPARAT

ROD - gate, 99-5/8 inch, (16x6) (See Note A)

1шт.

31

NSS

NOT SOLD SEPARAT

ROD - gate, left, 64-9/16 inch (20x6) (See Note B)

1шт.

31

NSS

NOT SOLD SEPARAT

ROD - gate, right, 64-9/16 inch (20x6) (See Note A)

1шт.

31

NSS

NOT SOLD SEPARAT

ROD - gate, left, 74-1/16 inch, (24x6, 20x7) (See Note B)

1шт.

31

NSS

NOT SOLD SEPARAT

ROD - gate, right, 74-1/16 inch, (24x6, 20x7) (See Note A)

1шт.

31

817433C1

ROD

- gate, left (24x7, 28x6)

1шт.

31

NSS

NOT SOLD SEPARAT

ROD - gate, right, 85-9/16 inch, (24x7, 28x6) (See Note A)

1шт.

32

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

1шт.

33

142745

NUT, WING

NUT - wing, 5/16 inch NC (1 used per rod)

1шт.

34

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

1шт.

35

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

(1 per rod) -114, 70 Duro, .612" ID x .103" Thk

1шт.

36

816848C1

PLUG

- panel filler (16x6)

1шт.

37

607276R2

SUPPORT

BEARING - gate rod (7 used 16x6; 8 used 20x6, 20x7, 24X6; 10 used 24x7, 28x6)

1шт.

38

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

39

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

40

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

492-11038

LOCK WASHER,3/8"

1шт.

42

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

43

425-106

NUT,3/8"-16, Cl 5

1шт.

44

603455R1

LEVER GUIDE

BEARING - gate rod center (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

45

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

1шт.

51

816736C1

GATE ASSY

GATE - fertilizer feed (1 used per feed)

1шт.

52

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

53

252552C1

NUT

- weld, 1/4 inch NC (Not welded)

1шт.

54

816248C1

PANEL

ASSEMBLY - back (16x6)

1шт.

54

816249C1

PANEL

ASSEMBLY - back left (20x6)

1шт.

54

816250C1

PANEL

ASSEMBLY - back right (20x6)

1шт.

54

816251C1

PANEL

ASSEMBLY - back left (24x6)

1шт.

54

816252C1

PANEL

ASSEMBLY - back right (24x6)

1шт.

54

816253C1

PANEL

ASSEMBLY - back left (20x7)

1шт.

54

816254C1

PANEL

ASSEMBLY - back right (20x7)

1шт.

54

816255C1

PANEL

ASSEMBLY - back left (24x7)

1шт.

54

816256C1

PANEL

ASSEMBLY - back right (24x7)

1шт.

54

816905C1

PANEL

ASSEMBLY - back left (28x6)

1шт.

54

816906C1

PANEL

ASSEMBLY - back right (28x6)

1шт.
