Запчасти Case IH 6300 (9-086) - FERTILIZER DROP BOTTOM, CONTINUED (09) - CHASSIS/ATTACHMENTS

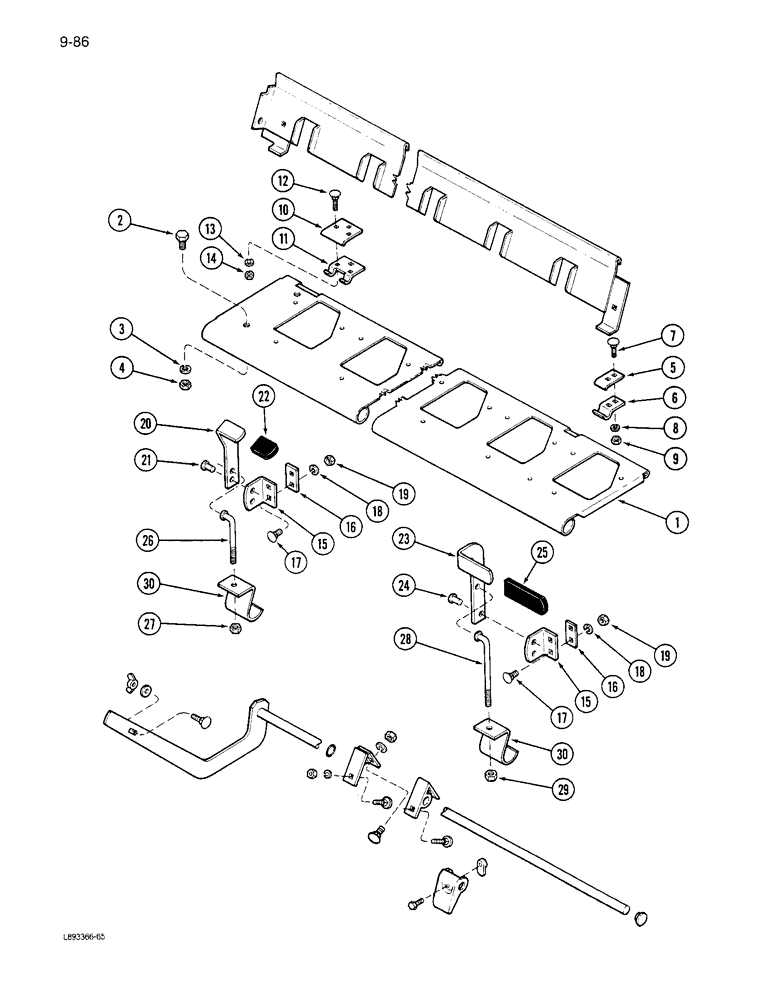

Схема запчастей Case IH 6300 - (9-086) - FERTILIZER DROP BOTTOM, CONTINUED (09) - CHASSIS/ATTACHMENTS
17
27
12
4
2
22
6
11
18
7
9
24
14
26
16
23
8
10
29
15
5
20
3
25
15
21
1
30
19
16
28
30
13
17
18
19

Артикул

Название

Примечание

Количество

1

816214C1

BOTTOM

ASSEMBLY - fertilizer drop (16x6)

1шт.

1

815348C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop left (20x6)

1шт.

1

815349C1

PLOW BOTTOM

BOTTOM ASSEMBLY - fertilizer drop right (20x6)

1шт.

1

815352C1

BOTTOM

ASSEMBLY - fertilizer drop left (24x6)

1шт.

1

815353C1

BOTTOM

ASSEMBLY - fertilizer drop right (24x6)

1шт.

1

816215C1

BOTTOM

ASSEMBLY - fertilizer drop left (20x7)

1шт.

1

816216C1

BOTTOM

ASSEMBLY - fertilizer drop right (20x7)

1шт.

1

816217C1

BOTTOM

ASSEMBLY - fertilizer drop left (24x7)

1шт.

1

816218C1

BOTTOM

ASSEMBLY - fertilizer drop right (24x7)

1шт.

1

816909C1

BOTTOM

ASSEMBLY - fertilizer drop left (28x6)

1шт.

1

816910C1

BOTTOM

ASSEMBLY - fertilizer drop right (28x6)

1шт.

2

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(20 x 6, 24 x 6) Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

604403R2

CLAMP

STOP - drop bottom hinge intermediate (4 used 20x6, 5 used 16x6; 6 used 24x6, 20x7; 8 used 24x7, 28x6)

1шт.

6

604404R2

CLAMP

HINGE - drop bottom intermediate (1 per stop)

1шт.

7

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - round head square neck, 1/4 NC x 1 inch

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

10

815373C1

STOP

- drop bottom hinge outer

2шт.

11

815374C1

HINGE

- drop bottom outer

2шт.

12

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - round head square neck, 1/4 NC x 1 inch

6шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

15

603498R1

ANGLE

- drop bottom lever (5 used 16x6; 6 used 20x6; 8 used 24x6, 20x7; 10 used 24x7, 28x6)

1шт.

16

603587R1

BAR

- lever angle reinforcing (1 per angle)

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

20

815377C1

LEVER

- drop bottom short (4 used 16x6, 20x6; 6 used 24x6, 20x7; 8 used 28x6, 24x7)

1шт.

21

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 x 9/16 inch (1 per lever)

1шт.

22

815378C1

GRIP

- drop bottom short lever(1 per short lever)

1шт.

23

603501R1

LEVER

- drop bottom long (16x6)

1шт.

23

603501R1

LEVER

- drop bottom long (20x6, 24x6, 20x7, 24x7, 28x6)

2шт.

24

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 x 9/16 inch

1шт.

25

815379C1

GRIP

- drop bottom long lever (1 per long lever)

1шт.

26

603469R1

BOLT,3/8" - 16 x 3.3", Steel

- drop bottom short (1 per short lever)

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

603470R1

BOLT,3/8" - 16 x 5.1", Steel

- drop bottom long (1 per long lever)

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

603497R1

CATCH

- drop bottom (1 per lever)

1шт.

Выбрано товаров: 41
