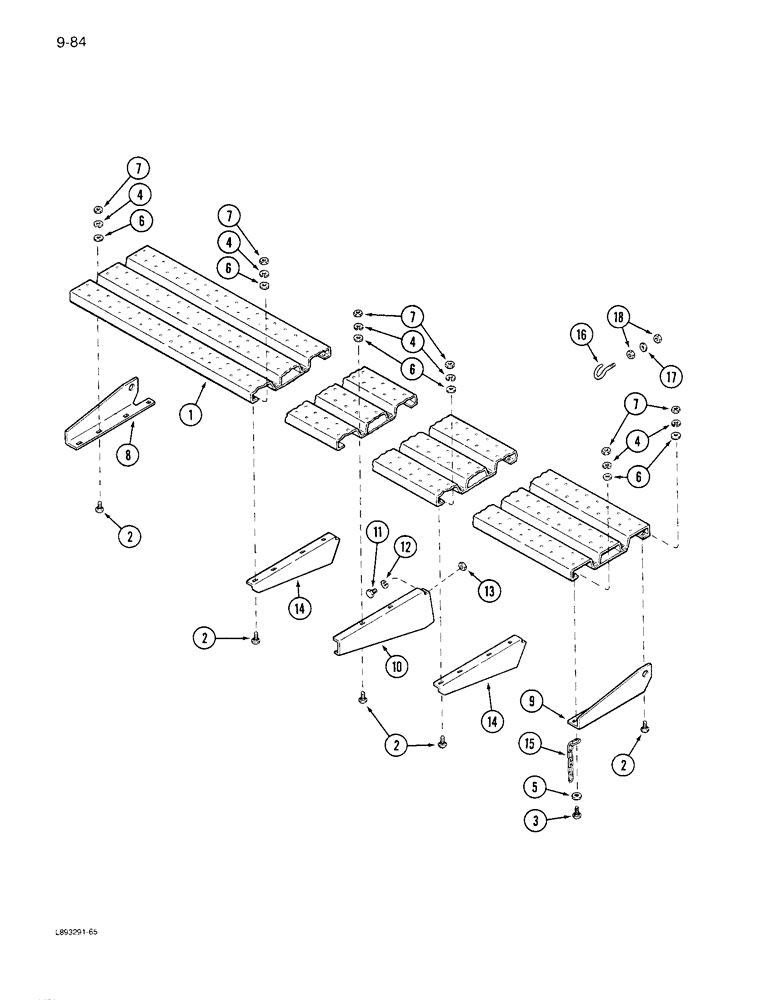

Запчасти Case IH 6300 (9-084) - FOOTBOARD (09) - CHASSIS/ATTACHMENTS

1

818431C1

BOARD

FOOTBOARD - grain drill (20x6)

1шт.

1

818394C1

BOARD

FOOTBOARD - grain drill (24x6, 20x7)

1шт.

1

818428C1

BOARD

FOOTBOARD - grain drill (28x6, 24x7)

1шт.

1

818434C1

BOARD

FOOTBOARD - grain drill (16x6)

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

3

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch

1шт.

6

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

1шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

8

817686C1

ARM

- footboard pivot left

1шт.

9

817687C1

ARM

- footboard pivot right

1шт.

10

818410C1

SUPPORT

- footboard center (16x6)

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

818409C1

SUPPORT

- footboard inner (20x6, 24x7, 24x6, 20x7, 28x6)

2шт.

15

817685C1

CHAIN (AG)

CHAIN - footboard hold-up

1шт.

16

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

- footboard hold-up

1шт.

17

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.
