Запчасти Case IH 6300 (9-082) - PARTITION PANELS AND BAFFLES (09) - CHASSIS/ATTACHMENTS

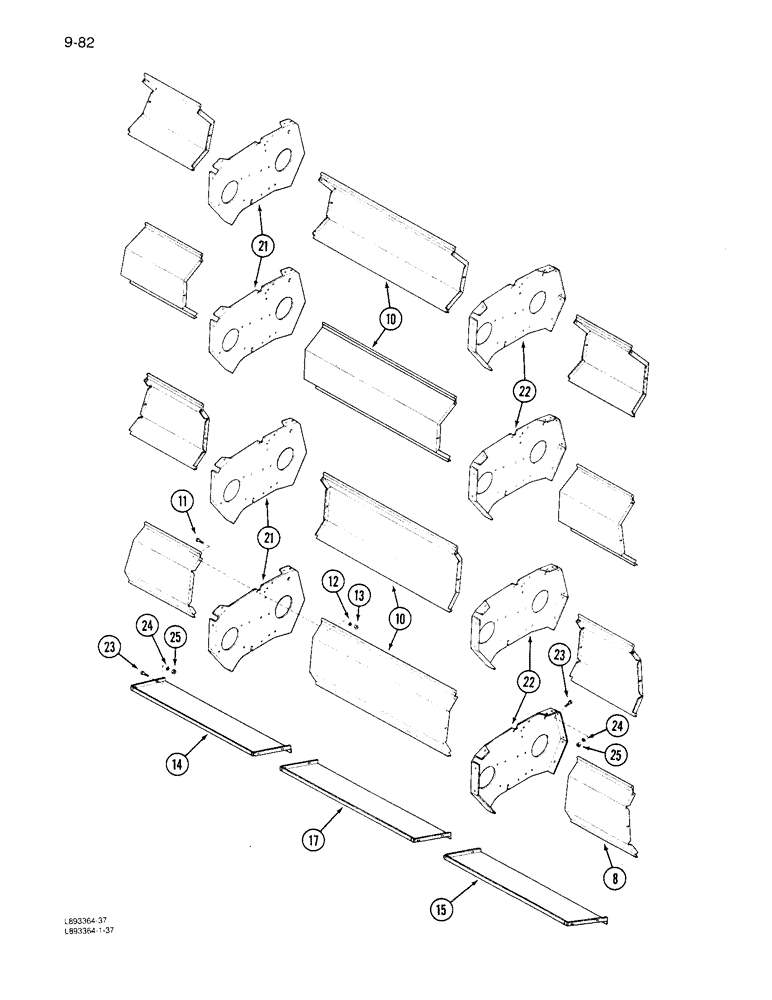

Схема запчастей Case IH 6300 - (9-082) - PARTITION PANELS AND BAFFLES (09) - CHASSIS/ATTACHMENTS
10
10
24
25
12
21
15
8
13
17
14
22
11
23
25
21
24
23
22

Артикул

Название

Примечание

Количество

8

816808C1

SHIELD

PANEL - fertilizer partition right (16x6)

1шт.

8

816810C1

PANEL

- fertilizer partition right (20x6)

1шт.

8

816812C1

PANEL

- fertilizer partition right (24x6, 20x7)

1шт.

8

816814C1

PANEL

- fertilizer partition right (28x6, 24x7)

1шт.

9

816290C1

PANEL

- fertilizer partition center

1шт.

10

816804C1

PANEL

- fertilizer partition center

1шт.

11

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

14шт.

12

492-11038

LOCK WASHER,3/8"

14шт.

13

425-106

NUT,3/8"-16, Cl 5

14шт.

14

815822C1

PANEL

- grain partition left (20x6)

1шт.

14

815826C1

PANEL

- grain partition left (24x6, 20x7)

1шт.

14

816080C1

PANEL

- grain partition left (28x6, 24x7)

1шт.

15

815823C1

PANEL

- grain partition right (20x6)

1шт.

15

815827C1

PANEL

- grain partition right (24x6, 20x7)

1шт.

15

816081C1

PANEL

- grain partition right (28x6, 24x7)

1шт.

17

815832C1

PANEL

- grain partition center

1шт.

21

816072C2

BAFFLE

- hopper left

1шт.

22

816073C2

BAFFLE

- hopper right

1шт.

23

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

20шт.

24

492-11038

LOCK WASHER,3/8"

20шт.

25

425-106

NUT,3/8"-16, Cl 5

20шт.

Выбрано товаров: 21
