Запчасти Case IH 6300 (9-076) - GRAIN AND FERTILIZER HOPPER, CONTINUED ON (09) - CHASSIS/ATTACHMENTS

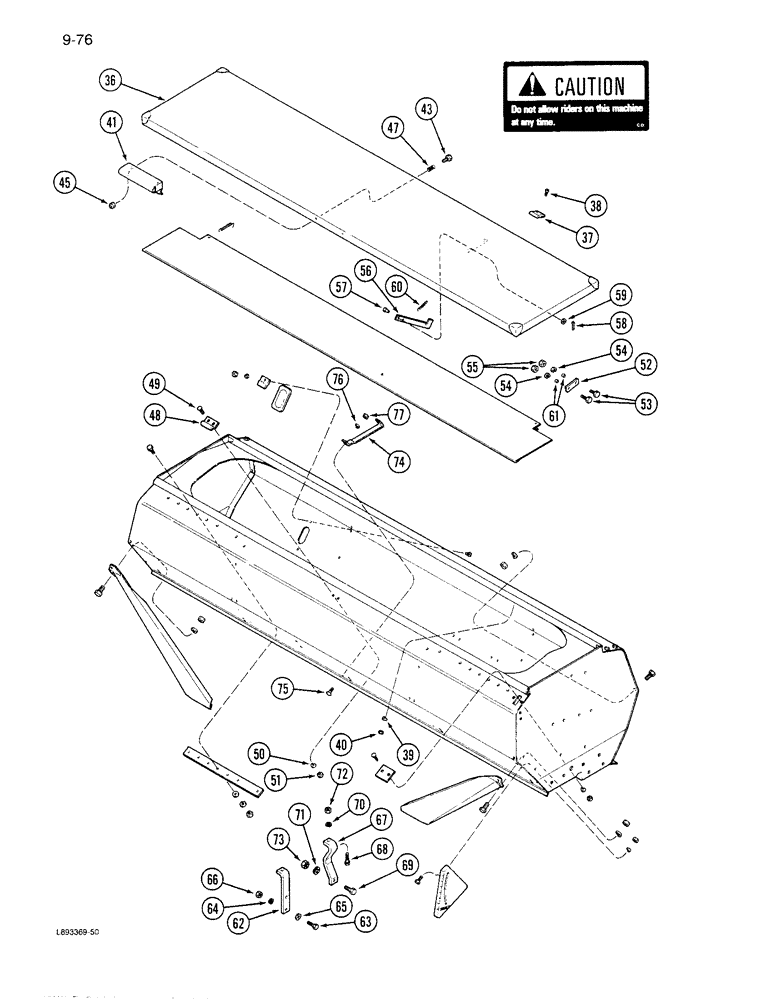

Схема запчастей Case IH 6300 - (9-076) - GRAIN AND FERTILIZER HOPPER, CONTINUED ON (09) - CHASSIS/ATTACHMENTS
50
49
48
55
54
52
45
40
68
72
41
37
76
65
58
77
62
64
36
53
60
69
47
67
63
66
59
56
73
38
39
57
51
74
75
43
61
71
70
54

Артикул

Название

Примечание

Количество

36

816083C1

COVER

- hopper (16x6)

1шт.

p/n 816083c1 is for a 8 1/2 ft door

1шт.

36

816084C1

COVER

- hopper (20x6)

1шт.

p/n 816084c1 is for a 10 1/2 ft door

1шт.

36

816085C1

COVER

- hopper (24x6, 20x7)

1шт.

p/n 816085c1 is for a 12 1/2 ft door

1шт.

36

816086C1

COVER

- hopper (28x6, 24x7)

1шт.

p/n 816086c1 is for a 14 ft door. MJP 6/4/99.

1шт.

37

815173C1

HINGE

- cover (16x6)

5шт.

37

815173C1

HINGE

- cover (20x6, 24x6, 28x6, 20x7, 24x7)

7шт.

38

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- pan head slotted, 1/4 NC x 5/8 inch

1шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

41

815174C1

LATCH

- hopper cover

1шт.

43

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

45

9413952

LOCK NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

47

N32176

SPRING

- feed

2шт.

48

815175C1

CLIP

- latch

1шт.

49

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

52

815178C1

SPACER

SUPPORT - arm retaining

2шт.

53

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

54

492-11038

LOCK WASHER,3/8"

4шт.

55

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

56

815176C1

ARM

- cover hold open

2шт.

57

24660R1

CLEVIS PIN,5/16" x .719"

PIN - headed, 5/16 x 23/32 inch

2шт.

58

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

59

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

60

398304R1

SPRING

- cover return

2шт.

61

594536R1

BUSHING

- retainer bar

4шт.

62

816144C1

SUPPORT

- hopper (16x6, 20x6, 24x6, 20x7, 28x6)

4шт.

63

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

64

492-11038

LOCK WASHER,3/8"

12шт.

65

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

66

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

67

816145C1

SUPPORT

- hopper

4шт.

68

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

69

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

70

492-11038

LOCK WASHER,3/8"

4шт.

71

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

72

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

73

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

74

603538R1

BRACKET

BRACE - hopper center (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

75

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

76

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

77

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

Выбрано товаров: 47
