Запчасти Case IH 6300 (9-070) - AXLES AND WHEELS ENDWISE TRANSPORT (09) - CHASSIS/ATTACHMENTS

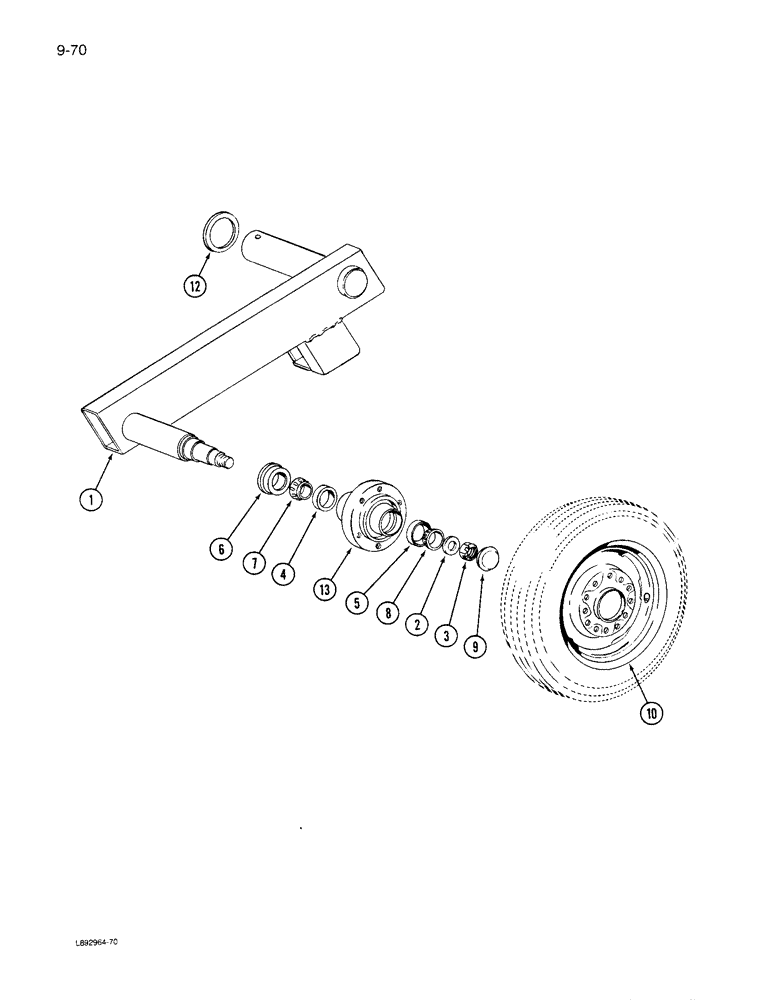

Схема запчастей Case IH 6300 - (9-070) - AXLES AND WHEELS ENDWISE TRANSPORT (09) - CHASSIS/ATTACHMENTS
4
12
2
9
10
13
6
1
3
8
5
7

Артикул

Название

Примечание

Количество

1

819959C92

AXLE

ASSEMBLY - transport wheel left (Includes Ref. 2 and 3)

1шт.

1

819960C92

AXLE

ASSEMBLY - transport wheel right

1шт.

2

95-81032

WASHER,29/32" x 2" x .179"

- flat, 29/32 x 2 x 5/32 inch

1шт.

3

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

19356R1

PIN,3/8" x 3", Coiled

1шт.

4

663558R1

BEARING CUP

CUP - bearing, inner, 2-57/64 inch OD

1шт.

5

651817R1

BEARING CUP

CUP - bearing, outer, wheel hub

1шт.

6

606556R91

OIL SEAL

SEAL - wheel hub oil

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner, 1-5/8 inch ID

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

9

663906R1

CAP

- wheel hub

1шт.

10

481344R91

WHEEL

- 14x8 KB

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch

6шт.

810768C1

VALVE

- tubeless tire steel

1шт.

12

495-81243

WASHER,2 5/16" x 3" x .120"

- 2-5/16 x 3 x 1/8 inch

1шт.

13

606468R21

HUB

ASSEMBLY - wheel

1шт.

Выбрано товаров: 17
