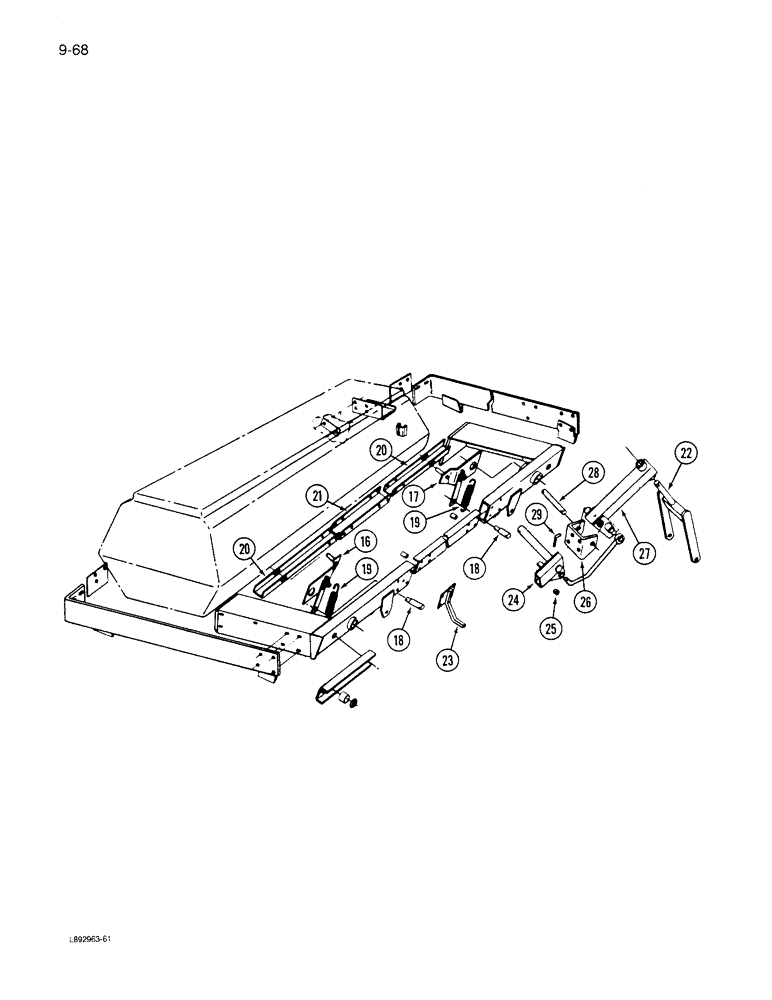

Запчасти Case IH 6300 (9-068) - FRAME ENDWISE TRANSPORT, TRAILING DRILL WITH CASTER WHEEL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
16
819865C1
LEVER
- leveling, left
1шт.
17
819869C1
LEVER
- leveling, right
1шт.
495-81027
WASHER,21/32" x 1 1/2" x .120"
- flat, 21/32 x 1-1/2 x 3/32 inch
4шт.
18
819867C2
PIN
- leveling spring anchor
2шт.
495-81027
WASHER,21/32" x 1 1/2" x .120"
- flat, 21/32 x 1-1/2 x 3/32 inch
2шт.
19
819861C1
COIL SPRING
SPRING - leveling
2шт.
20
819791C1
CHANNEL
- leveling
2шт.
21
819790C1
CHANNEL
- connecting
1шт.
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
8шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
8шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
8шт.
22
817772C2
SUPPORT
- wheel
1шт.
495-81092
WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk
- flat, 1-25/32 x 2-1/2 x 3/64 inch
1шт.
462997R1
WASHER
- wear
1шт.
432-2448
COTTER PIN,3/8" x 3"
Pin, Split (Cotter), 3/8" x 3"
1шт.
23
840998C1
SUPPORT
- transport wheel lockout, left
1шт.
24
817705C2
PIVOT
- caster wheel
1шт.
495-81243
WASHER,2 5/16" x 3" x .120"
- flat, 2-5/16 x 3 x 3/32 inch
1шт.
19356R1
PIN,3/8" x 3", Coiled
1шт.
25
608310R1
BUSHING,32.38mm ID x 50.8mm OD x 25.4mm L
- caster wheel pivot
1шт.
26
817709C1
CHANNEL
- caster wheel support
1шт.
426-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 8
- hex, 5/8 NC x 3 inch, Grade 8
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
495-81027
WASHER,21/32" x 1 1/2" x .120"
- flat, 21/32 x 1-1/2 x 3/32 inch
4шт.
429-1010
NUT,5/8"-11, G8
4шт.
27
817764C1
SUPPORT
- caster wheel
1шт.
219-87
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - grease, 1/4 PT x 17/32 inch
2шт.
20644R1
WASHER
- flat, 1-21/32 x 1-1/4 x 3/64 inch
2шт.
28
817710C1
PIN
- caster wheel pivot
1шт.
617978R1
PIN,3/8" x 2 1/2", Coiled
1шт.
495-81222
WASHER,1 17/32" x 2 1/4" x .120"
- flat, 1-17/32 x 2-1/4 x 3/32 inch
1шт.
29
813175C1
PIN
- lock
1шт.
Выбрано товаров: 34
