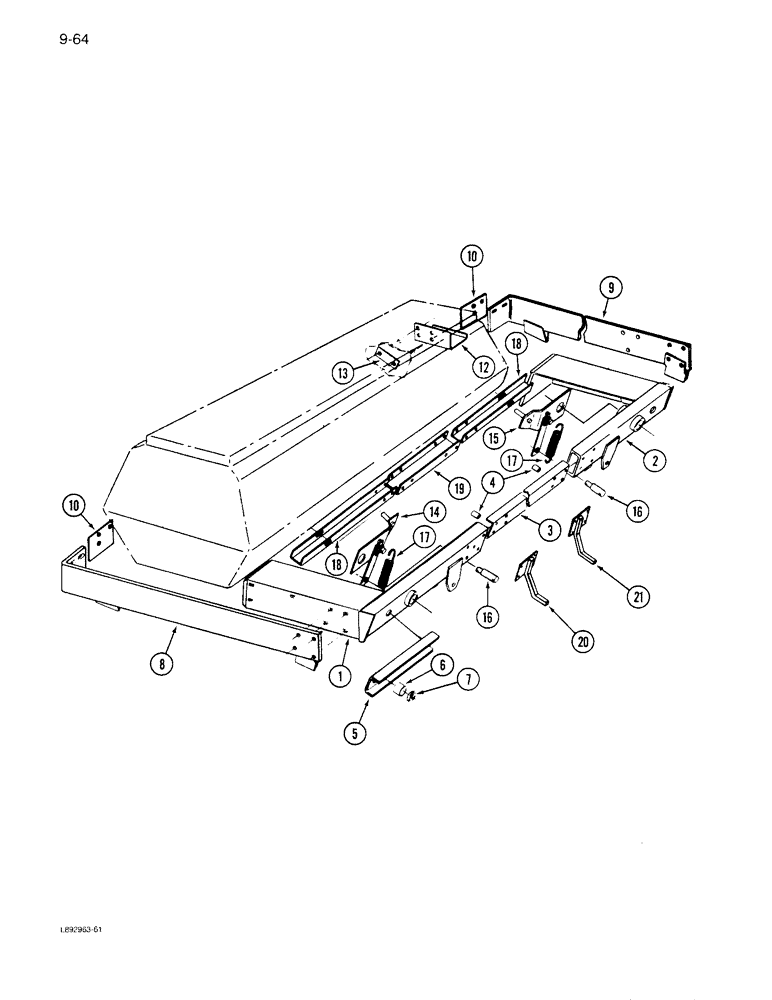

Запчасти Case IH 6300 (9-064) - FRAME ENDWISE TRANSPORT, SECOND OR THIRD DRILL (09) - CHASSIS/ATTACHMENTS

1

819737C4

FRAME

- transport trail, left

1шт.

2

819738C4

FRAME

- transport, trail right

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tapping, 1/8 inch

4шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

3

819754C4

CHANNEL

- transport frame tie

1шт.

ref #3 (P/N 819754C4) - 1986375C1 for 14'

1шт.

4

819755C1

SPACER

- pipe

8шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (Third drill only)

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch (Second drill)

8шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch (Third drill)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

8шт.

5

819806C1

CHANNEL

- drill spreader

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

- hex, 1 NC x 5-1/2 inch

2шт.

425-1216

SLOTTED NUT,Hex, 1"-8, G5

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

6

819823C1

BUSHING

- rear

2шт.

7

819814C1

SPACER

- wear

2шт.

8

819852C2

SUPPORT

- transport frame, left

1шт.

9

819853C2

SUPPORT

- transport frame, right

1шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

6шт.

26588R1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT - flat head square neck, 5/8 NC x 2-1/4 inch

8шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

6шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

425-1010

NUT,5/8"-11, G5

8шт.

10

819753C2

BAR

PLATE - bracket spacer

4шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

12

819967C1

SUPPORT

- marker tube bumper

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

13

819968C1

BAR

- support backing

1шт.

14

819865C1

LEVER

- leveling, left

1шт.

15

495-81027

WASHER,21/32" x 1 1/2" x .120"

LEVER - leveling, right

1шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

16

819867C2

PIN

- leveling spring anchor

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

42-1216

PIN - cotter, 3/16 x 1 inch

2шт.

17

819861C1

COIL SPRING

SPRING - cylinder helper

2шт.

18

819791C1

CHANNEL

- leveling

2шт.

19

819790C1

CHANNEL

- connecting

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

20

840998C1

SUPPORT

- transport wheel lockout, left

1шт.

21

841020C1

SUPPORT

- transport wheel lockout, right

1шт.
