Запчасти Case IH 6300 (9-062) - FRAME AND HITCH ENDWISE TRANSPORT, LEADING DRILL (09) - CHASSIS/ATTACHMENTS

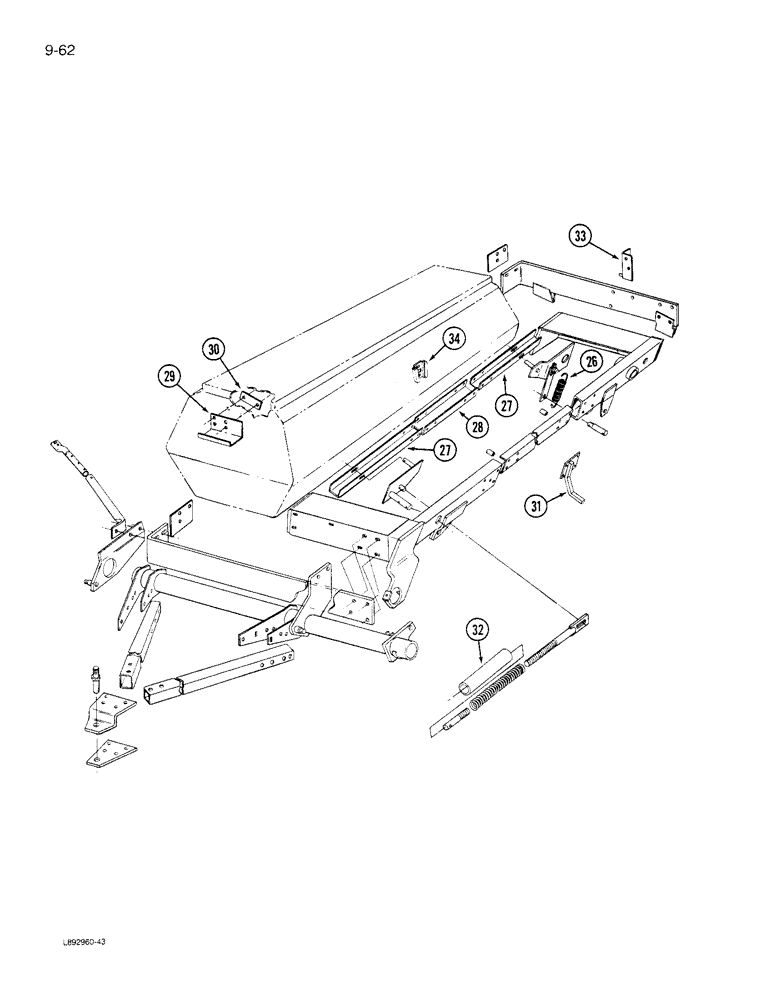

Схема запчастей Case IH 6300 - (9-062) - FRAME AND HITCH ENDWISE TRANSPORT, LEADING DRILL (09) - CHASSIS/ATTACHMENTS
29
27
33
27
31
28
32
34
26
30

Артикул

Название

Примечание

Количество

26

819861C1

COIL SPRING

SPRING - cylinder helper

1шт.

27

819791C1

CHANNEL

- leveling

2шт.

28

819790C1

CHANNEL

- connecting

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

29

819967C1

SUPPORT

- marker tube bumper

2шт.

30

819968C1

BAR

- support backing

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

31

841020C1

SUPPORT

- transport wheel lockout, right

1шт.

32

818283C1

TUBE,1.315" OD, 508 mm Length

- spring rod

1шт.

33

819955C1

PIVOT

- marker

1шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

34

398976R1

BRACKET

- SMV emblem

1шт.

Выбрано товаров: 16
