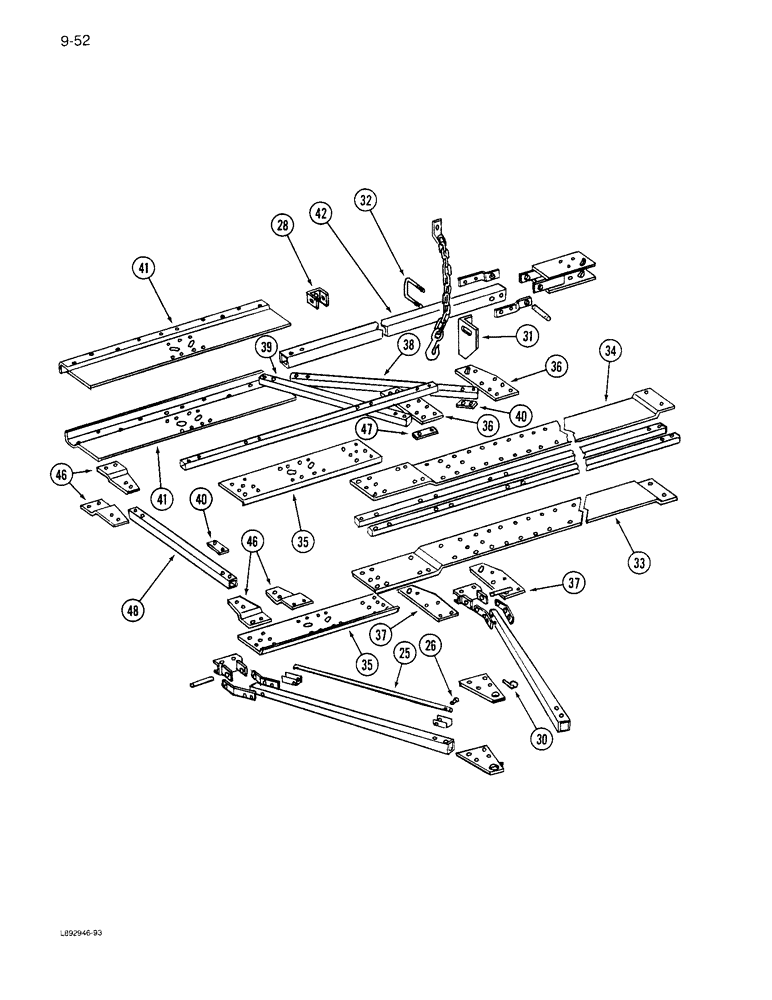

Запчасти Case IH 6300 (9-052) - HITCH FOUR DRILL HEAVY DUTY, 24 X 6, 28 X 6, 20 X 7 AND 24 X 7 (09) - CHASSIS/ATTACHMENTS

25

1279802C1

SUPPORT TUBE,26.7 mm OD, 2130 mm Length

TUBE ASSEMBLY - hitch transport

1шт.

26

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

3шт.

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - hair, cotter

3шт.

28

819010C1

YOKE

- tube support

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

30

D33805

PIN

- linch

1шт.

31

841153C1

ANGLE

- frame support chain

2шт.

32

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

33

841077C2

TUBE

SUPPORT - front tube right top and left lower

2шт.

34

841078C2

SUPPORT

- front tube right lower and left top

2шт.

35

819879C2

SUPPORT

- front extension

2шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

36

819876C2

BAR

- diagonal brace tube outer (8 holes)

4шт.

37

841082C1

BAR

- diagonal brace tube inner (6 holes)

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(20x7, 24x6) Hex, 5/8"-11 x 4 1/2", G5

8шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(24x7, 28x6) Hex, 5/8"-11 x 4 1/2", G5

12шт.

425-1010

NUT,5/8"-11, G5

1шт.

38

819882C2

TUBE,2171.7 mm Length

- diagonal brace outer

2шт.

39

819883C1

TUBE,101.5" Length

- diagonal brace inner

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

12шт.

425-1010

NUT,5/8"-11, G5

16шт.

40

841142C1

BAR

- tube mounting spacer

8шт.

41

841137C1

SUPPORT

- rear extension

2шт.

42

841133C1

TUBE,2742 mm Length

- hitch main frame rear

2шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

6шт.

425-1010

NUT,5/8"-11, G5

6шт.

46

841134C1

BAR

- tube mounting

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(24x7, 28x6) Hex, 5/8"-11 x 4 1/2", G5

6шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(24x6, 20x7) Hex, 5/8"-11 x 4 1/2", G5

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

(24x6, 20x7) Hex, 5/8"-11 x 5", G5

2шт.

425-1010

NUT,5/8"-11, G5

1шт.

47

843179C1

BAR

- center reinforcing tube spacer (24x6, 20x7)

2шт.

48

841132C1

TUBE

- hitch center connecting

1шт.
