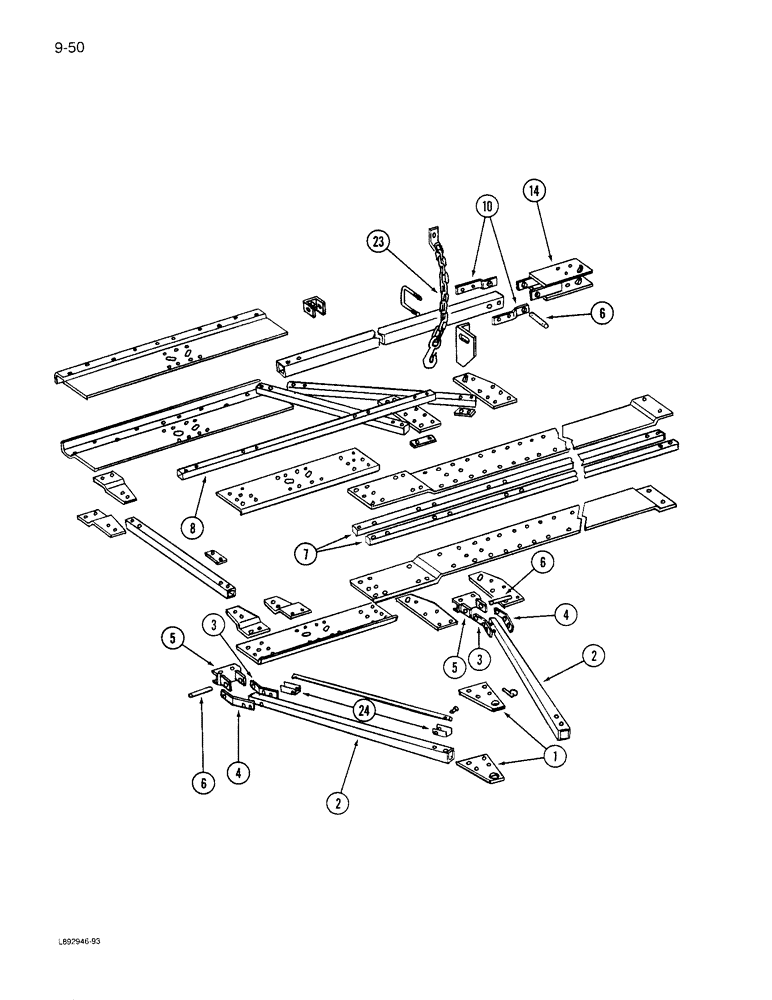

Запчасти Case IH 6300 (9-050) - HEAVY DUTY HITCH FOUR DRILL, 24 X 6, 28 X 6, 20 X 7 AND 24 X 7, 819892C1 (09) - CHASSIS/ATTACHMENTS

1

819892C1

PLATE

- hitch

2шт.

2

819684C1

TUBE,2245 mm Length

FRAME - hitch

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

425-1010

NUT,5/8"-11, G5

4шт.

3

819894C1

SUPPORT

- hitch tube inner

2шт.

4

819895C1

SUPPORT

- hitch tube outer

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

5

819770C1

PIVOT

- hitch tube

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

819724C1

PIN

- wing rear pivot

4шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/32 inch

6шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

8шт.

7

819874C2

TUBE

BRACE - hitch main frame front

4шт.

8

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

1шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

10

841130C1

BAR

- frame connecting

4шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

14

819656C2

SUPPORT

- wing rear

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

23

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

2шт.

24

819018C2

CHANNEL

- transport tube support front

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.
