Запчасти Case IH 6300 (9-048) - HEAVY DUTY HITCH FOUR DRILL, 24 X 6, 28 X 6, 20 X 7 AND 24 X 7, 819889C1 (09) - CHASSIS/ATTACHMENTS

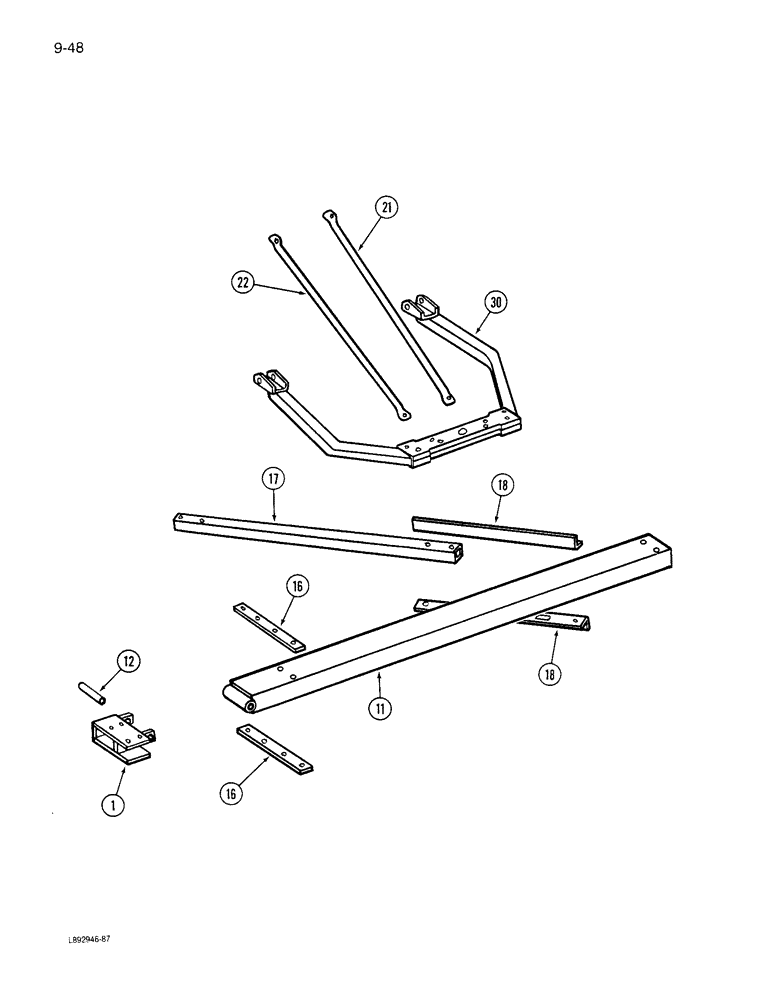

Схема запчастей Case IH 6300 - (9-048) - HEAVY DUTY HITCH FOUR DRILL, 24 X 6, 28 X 6, 20 X 7 AND 24 X 7, 819889C1 (09) - CHASSIS/ATTACHMENTS
21
11
18
22
16
1
16
17
12
30
18

Артикул

Название

Примечание

Количество

1

819889C1

PIVOT

- outer drill frame

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

11

1279424C1

TUBE

ASSEMBLY - wing

2шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

12

1279421C1

SPACER

- pivot

2шт.

16

819664C1

BAR

- side channel connecting

4шт.

17

819661C2

TUBE,101.5" Length

- wing diagonal

2шт.

18

1279410C1

ANGLE

- diagonal tube tie

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

21

818383C2

BRACE

SUPPORT - hitch left

4шт.

22

818384C2

BRACE

SUPPORT - hitch right

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

16шт.

30

REF

INSTRUCTION

HITCH - basic (See Page 9-7)

1шт.
