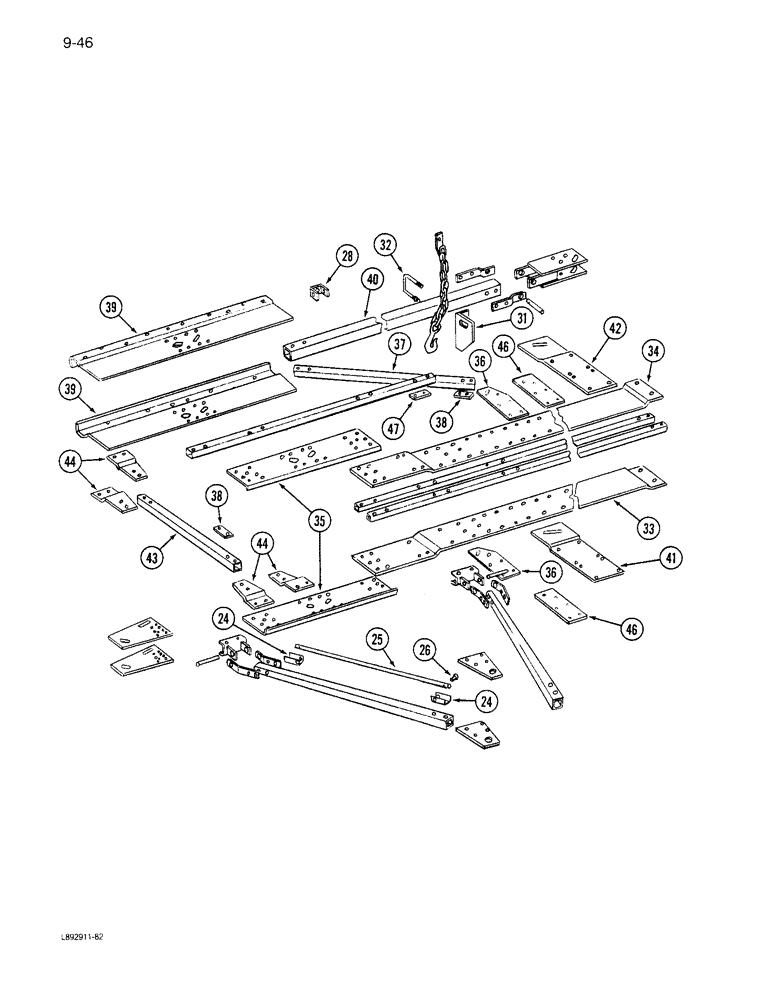

Запчасти Case IH 6300 (9-046) - HITCH FOUR DRILL HEAVY DUTY, 16 X 6 AND 20 X 6 (09) - CHASSIS/ATTACHMENTS

24

819018C2

CHANNEL

- transport tube support

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

25

819022C1

TUBE

- hitch transport support

1шт.

26

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

3шт.

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - hair

3шт.

28

819010C1

YOKE

- tube support

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

31

841153C1

ANGLE

- frame support chain

2шт.

32

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

33

841168C1

SUPPORT

- front tube right top and left lower

2шт.

34

841169C1

SUPPORT

- front tube right lower and left top

2шт.

35

819879C2

SUPPORT

- front extension

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

36

841111C1

BAR

- diagonal brace tube (20x6)

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

37

841200C1

TUBE

BRACE - diagonal

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

38

841142C1

BAR

- tube mounting spacer

6шт.

39

841137C1

SUPPORT

- rear extension

2шт.

40

841167C1

TUBE,2208.2 mm Length

BEAM - hitch main frame rear

2шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

6шт.

425-1010

NUT,5/8"-11, G5

6шт.

41

841136C1

BAR

- basic hitch tie center drill (left lower and right top)

2шт.

42

841140C1

BAR

- basic hitch tie center drill (left top and right lower)

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

43

841132C1

TUBE

BRACE - hitch center connecting

1шт.

44

841134C1

BAR

- tube mounting

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

(16x6) Hex, 5/8"-11 x 5", G5

2шт.

425-1010

NUT,5/8"-11, G5

1шт.

46

841108C1

BAR

- diagonal brace tube (16x6)

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

47

843179C1

BAR

- center reinforcing tube spacer (16x6)

2шт.
