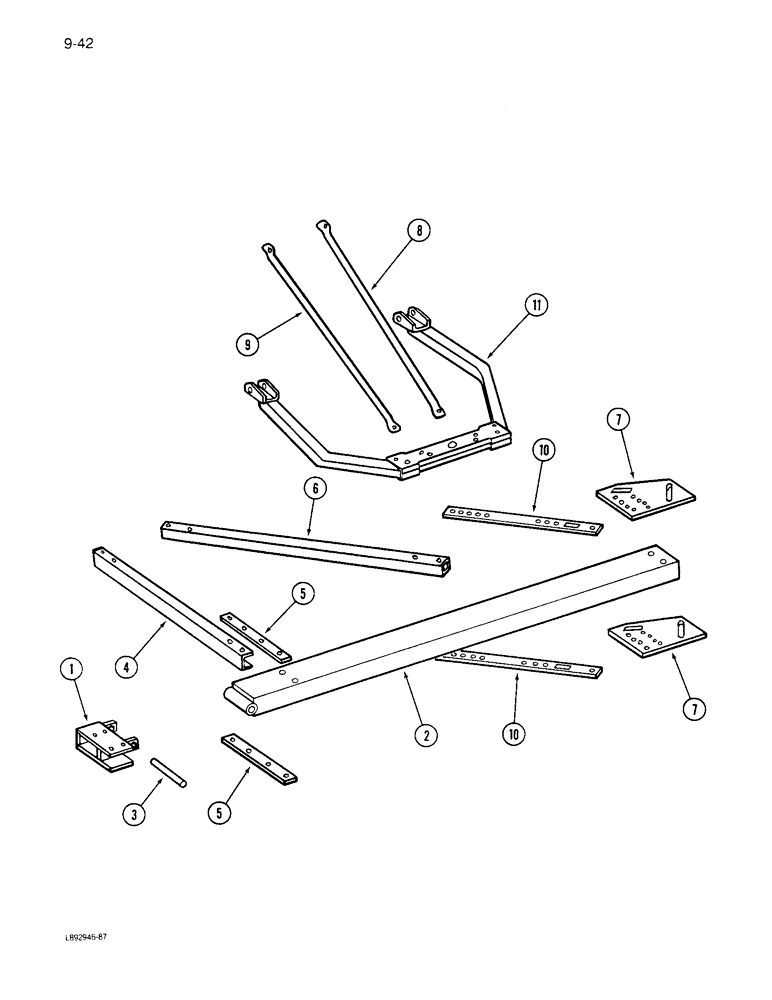

Запчасти Case IH 6300 (9-042) - HITCH FOUR DRILL HEAVY DUTY, 16 X 6 AND 20 X 6, 819892C1 (09) - CHASSIS/ATTACHMENTS

1

819889C1

PIVOT

- outer drill frame

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

2

1279423C1

TUBE,2474.6 mm Length

ASSEMBLY - wing

2шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

3

1279421C1

SPACER

- hitch pivot

2шт.

4

819662C1

CHANNEL

- wing side

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

819664C1

BAR

- side channel connecting

4шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

819798C3

TUBE

- wing diagonal

2шт.

7

817354C1

BAR

PLATE - basic hitch tie wing left

2шт.

8

818383C2

BRACE

SUPPORT - hitch left

4шт.

9

818384C2

BRACE

SUPPORT - hitch right

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

16шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

16шт.

10

1279411C1

BAR

BRACE - diagonal tube tie

4шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

REF

INSTRUCTION

HITCH - basic (See Page 9-7)

1шт.
